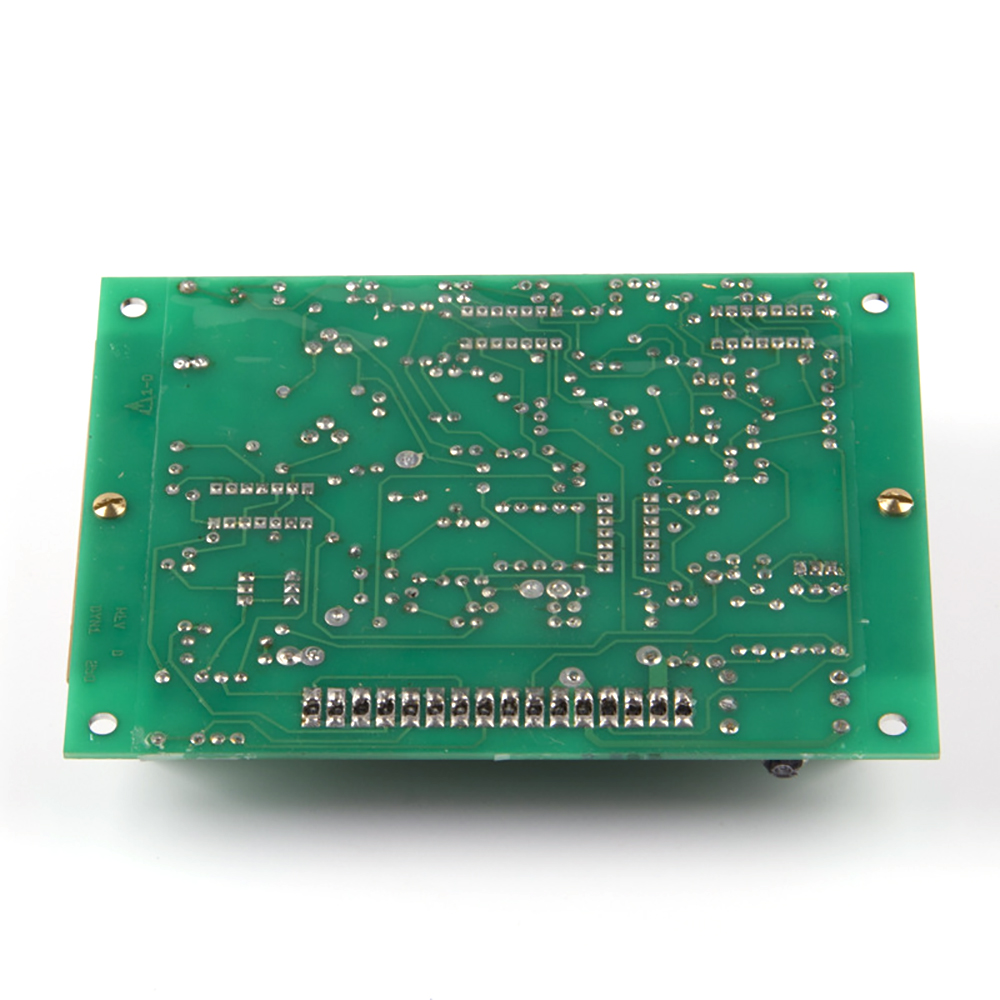

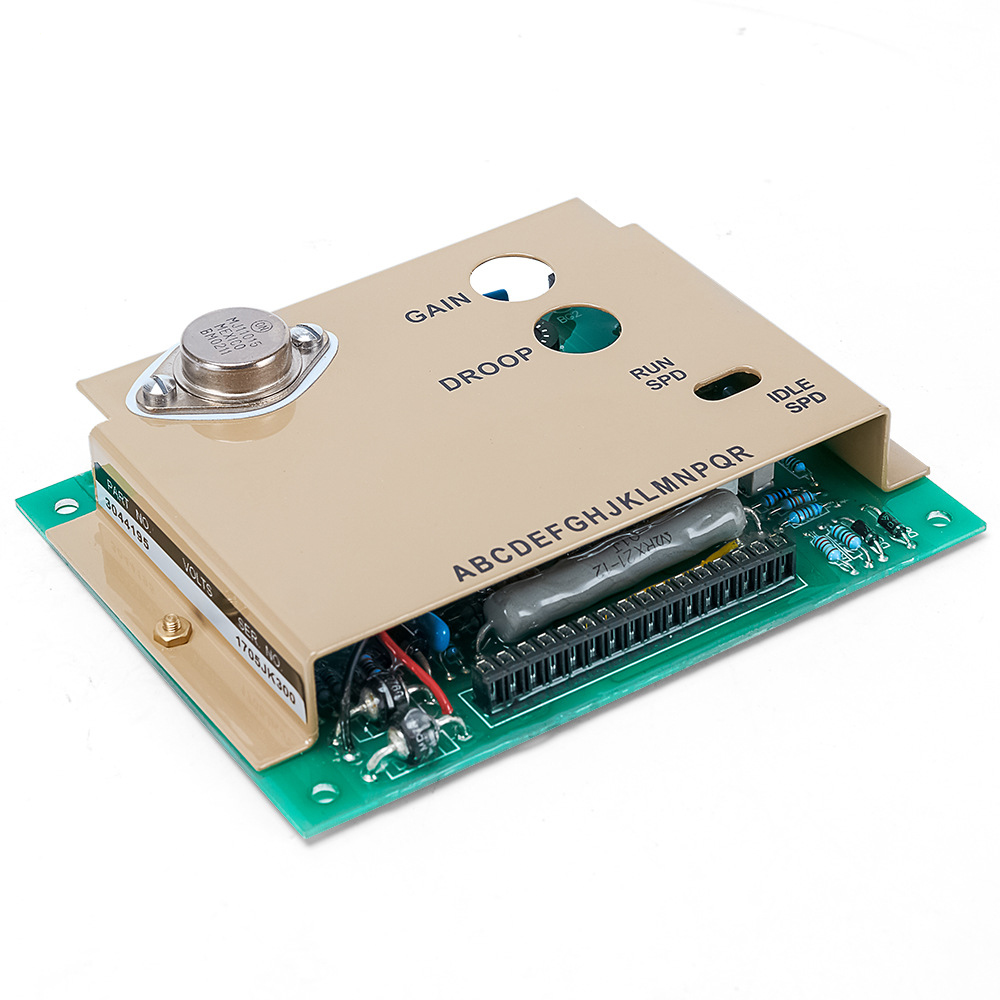

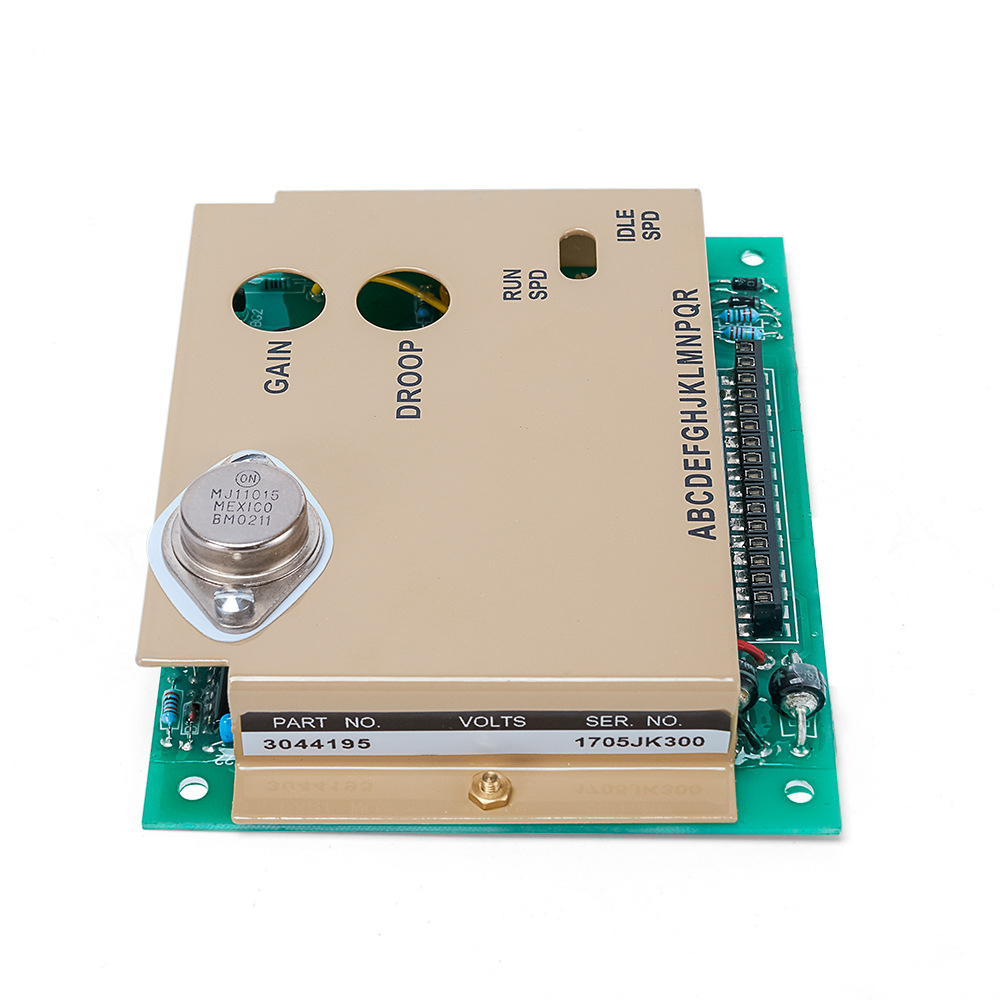

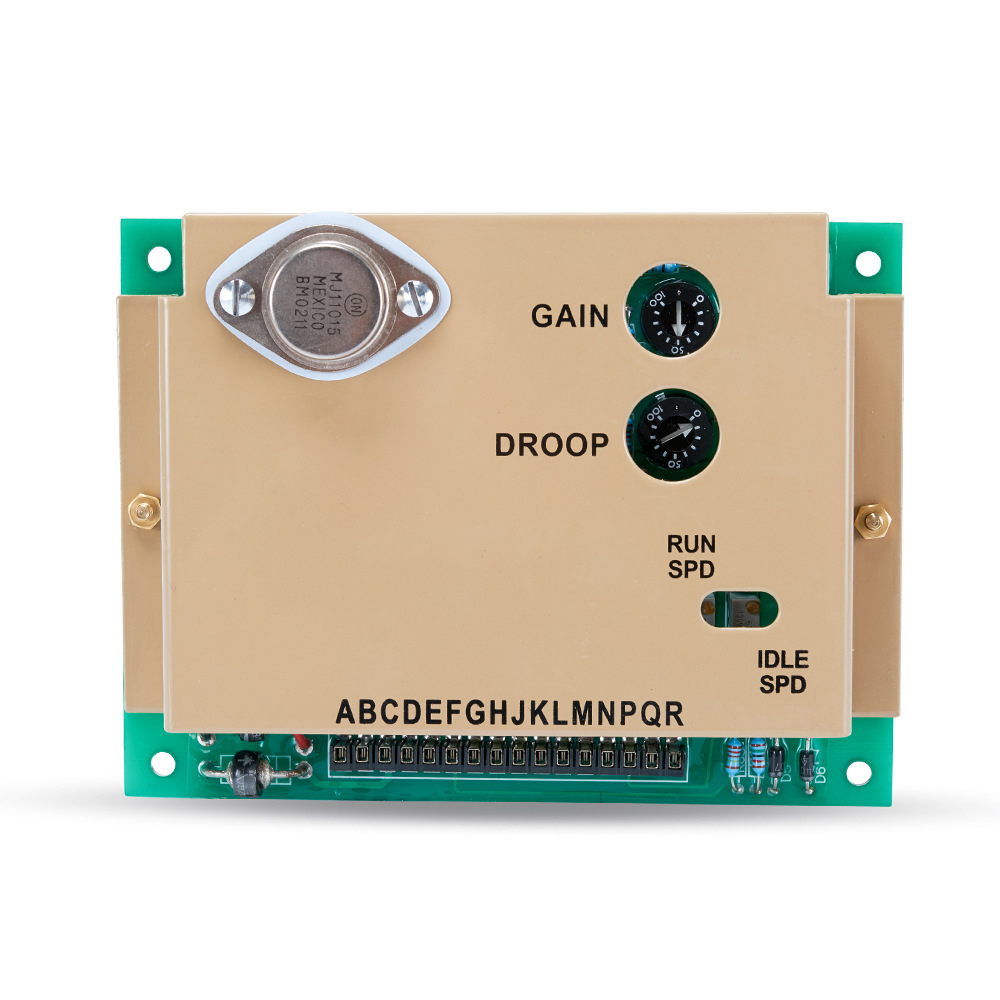

Generator Parts Unit Electronic Governor 3044195 Speed Board Speed Controller
Product ID : 3044195
Product Tags :
Auto Genset Generator ControllerElectronic Auto Start Generator SetGenerator ATS ControllerGenerator Spare PartsGenerator Speed ControllerGenerator parts speed control unitIntelligent Generator Controller AutomaticRemote Monitor ATS AMF Generator controllerSmart Genset Controllerelectronic engine governor control
Product Attributes :
Product Description
Specification:
Rpm stability: <± 0.25%
Speed range: 1KHz ~ 6.5KHz
Thermal stability: Max ± 0.7%
Idle regulation: 260 ± 20Hz
Droop regulation: Minimum 15Hz ± 6Hz/ 1 amp
Maximum: 400Hz ± 75Hz/ 1 amp
External speed regulation: ± 200Hz (with 1 kω Connected)
Aux input sensitivity: 148Hz / 1v., ± 10Hz
Impedance: 1mω
Working temp range: -40 ~ 85
Environment:
Working humidity range: Maximum 95%
Stocking temp: -55 ~ 92
Shocking: 20-100Hz 500mm/sec.
Input power supply
Voltage: 24v
Grounding pole: Negative pole
Power supply: 40ma
Actuator continuous current: Minimum 1a, maximum 4.5a
Mpu
Signal: 2 ~ 120v RMS
