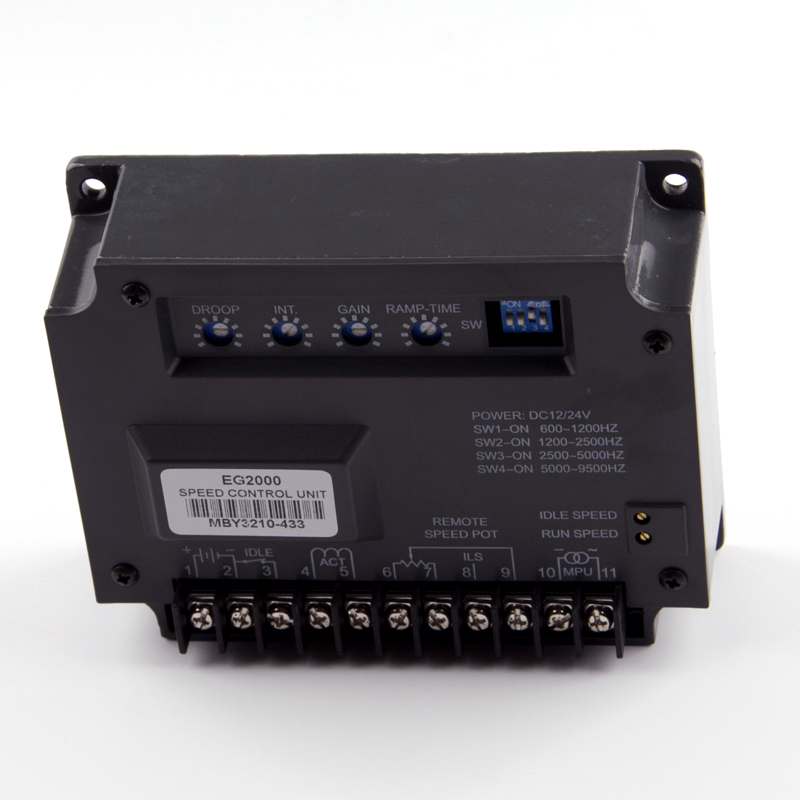

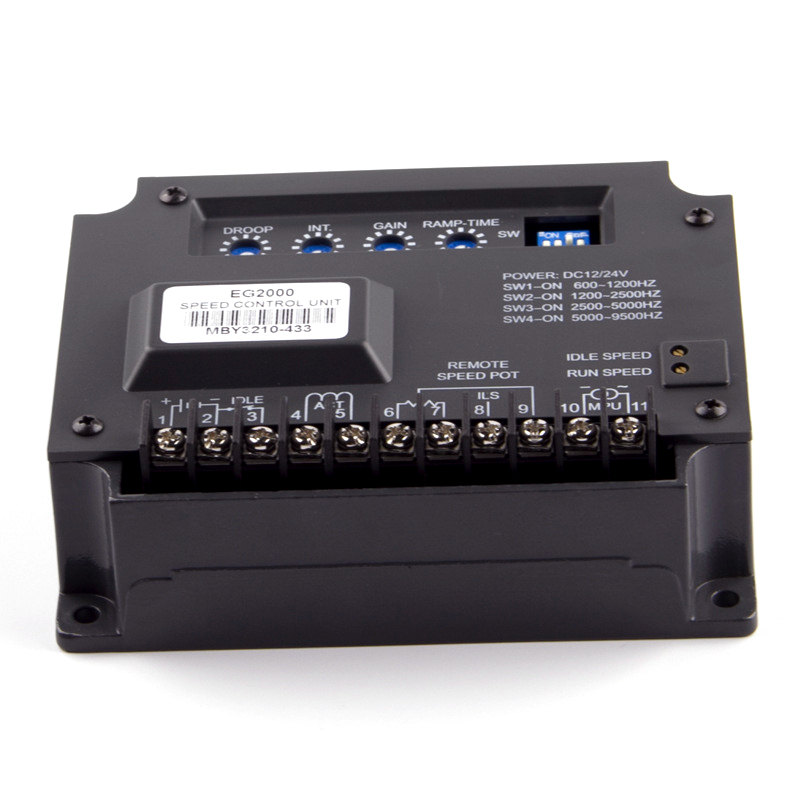

Electromagnetic Adjustable Diesel Engine Speed Motor Controller EG2000
Product ID : EG2000
Product Tags :
Generator Speed GovernorGenset Generator Engine Speed Governor Control Unit Controller
Product Attributes :
Introduction
The EG2000 is a universal generator governor / engine speed controller equipped with Smoke Limiting, & Idle Speed. Suitable for diesel, gas and natural gas engines with Built-in & Non-Built-in PTs Pumps, also can be used with Low Current, Electric over Hydraulic Oil Pumps Type Governor Actuators.
*Works on a wide ranges of MPU/flywheel frequencies
*15 Amp Max Output
*Suitable for all types of diesel and Gas engines
*High Sensitivity and stable at Low Frequency Variations
*Moisture, vibration, and rust protected, Epoxy encapsulated electronics
*For Use With Isochronous Generators & Automatic Paralleling PLC controls
*Idle Speed Adjustment and connections for a Remote Speed POT
Product Description
Technical data:
| Speed governor control unit EG2000 | |
| Operating Voltage | 12 or 24 VDC ±20% |
| Output Current | 0.5 ~ 15 A |
| Run Speed Adjustment range | Speed adjustment Potentiometer (30 turn); 4 Segment Dip Switch Adjustable From 600 ~ 9500 Hz. |
| Idle Speed Adjustment Range | Run Speed 30 ~ 85% |
| Ramp Time | 3 ~ 20 Sec |
| Remote Speed Pot | Ext. Remote speed pot terminal 6, 7, 8 (ILS) and 6, 7, 9 Connect a 5K potentiometer ±5% adjustment range. |
| Temp. Stability | <0.01% |
| Run Speed Stability | ± 0.25 % at steady state |
| MPU input signal | 1 ~ 120VAC RMS |
| Droop | 4.00% |
| Adjustment | Run Speed, Idle Speed, Ramp Time, Droop, Integration, Gain |
| Mechanical Vibration | 1G @ 18 ~ 30 Hz, 2.5G @ 48 ~ 70 Hz |
| Relative Humidity | < 95% |
| Operating Temperature | -40 ~ 85°C |
| Storage Temperature | -40 ~ 85°C |
| Dimensions | 147mm L * 114mm W * 50mm H |
| Weight | 690g ± 2% |
