PRODUCT

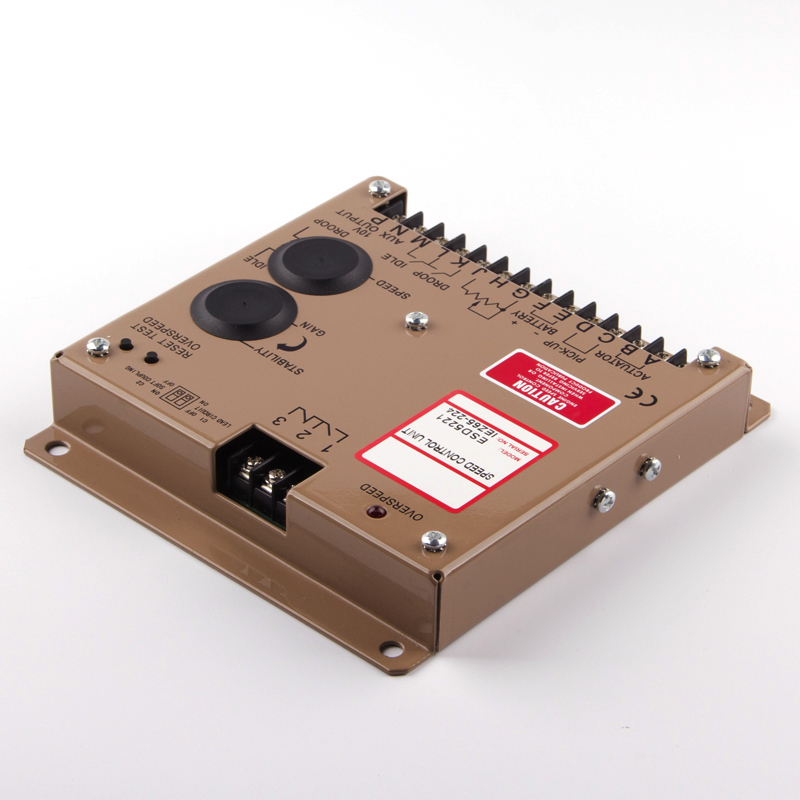

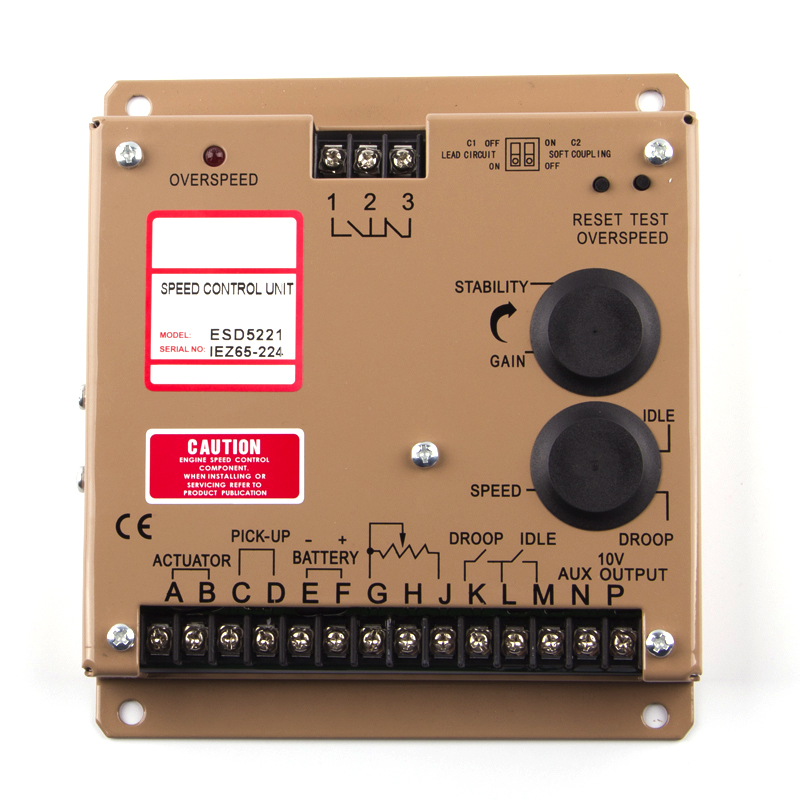

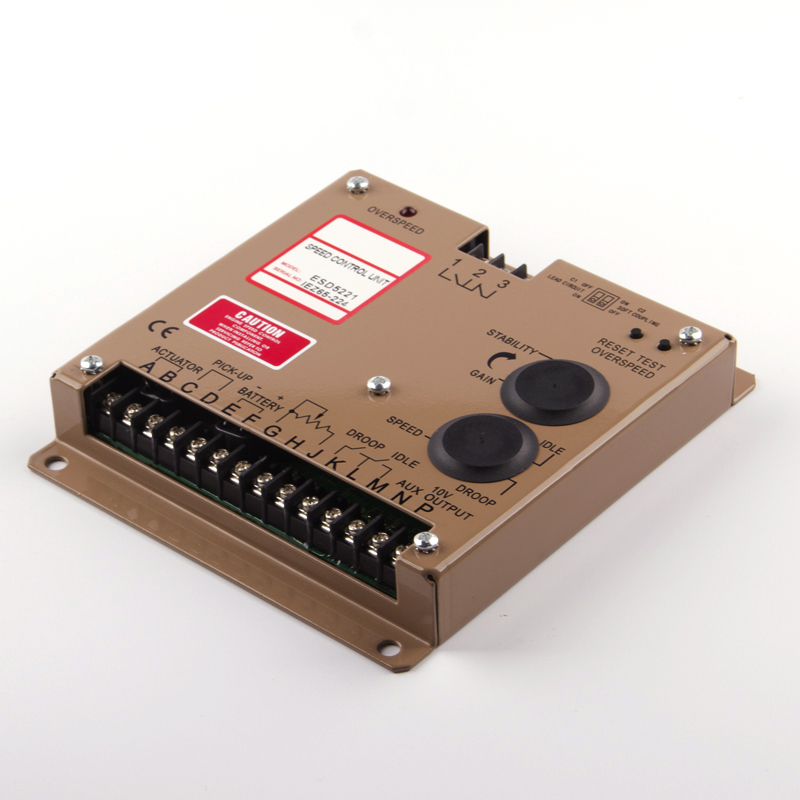

ESD5521 diesel engine electric governor
Product ID : ESD5521
Product Tags :
Generator Speed GovernorGenset Generator Engine Speed Governor Control Unit Controller
Product Description
Isochronous Operation/Steady State Stability: ±0.25% or better
Speed Range/Governor: 1K-7.5K Hz.continuous
Speed Drift with Temperature: ±1% Maximum
Idle Adjust CW: 60% of set speed
Idle Adjust CCW: Less than 1200 Hz.
Droop Range: 1-5% regulation
Droop Adj. Max. (K-L Jumpered): 400 Hz., ±75Hz.per 1.0 A Change
Droop Adj. Min. (K-L Jumpered): 15 Hz., ±6 Hz.per 1.0 A Change
Speed Trim Range: ±200 Hz.
Remote Variable Speed Range: 500-7.5 Hz.or any part thereof
Terminal Sensitivity:
J 100 Hz., ±15 Hz/Volt @ 5.0
K Impedance,L 735 Hz., ±60 Hz/Volt @ 65 K Impedance,
N 148 Hz., ±10 Hz/Volt @ 1 Meg. Impedance
P 10V DC Supply @ 20 ma Max.
Speed Switch Adjustment Range: 1000-10000 Hz.
Speed Range/Governor: 1K-7.5K Hz.continuous
Speed Drift with Temperature: ±1% Maximum
Idle Adjust CW: 60% of set speed
Idle Adjust CCW: Less than 1200 Hz.
Droop Range: 1-5% regulation
Droop Adj. Max. (K-L Jumpered): 400 Hz., ±75Hz.per 1.0 A Change
Droop Adj. Min. (K-L Jumpered): 15 Hz., ±6 Hz.per 1.0 A Change
Speed Trim Range: ±200 Hz.
Remote Variable Speed Range: 500-7.5 Hz.or any part thereof
Terminal Sensitivity:
J 100 Hz., ±15 Hz/Volt @ 5.0
K Impedance,L 735 Hz., ±60 Hz/Volt @ 65 K Impedance,
N 148 Hz., ±10 Hz/Volt @ 1 Meg. Impedance
P 10V DC Supply @ 20 ma Max.
Speed Switch Adjustment Range: 1000-10000 Hz.
