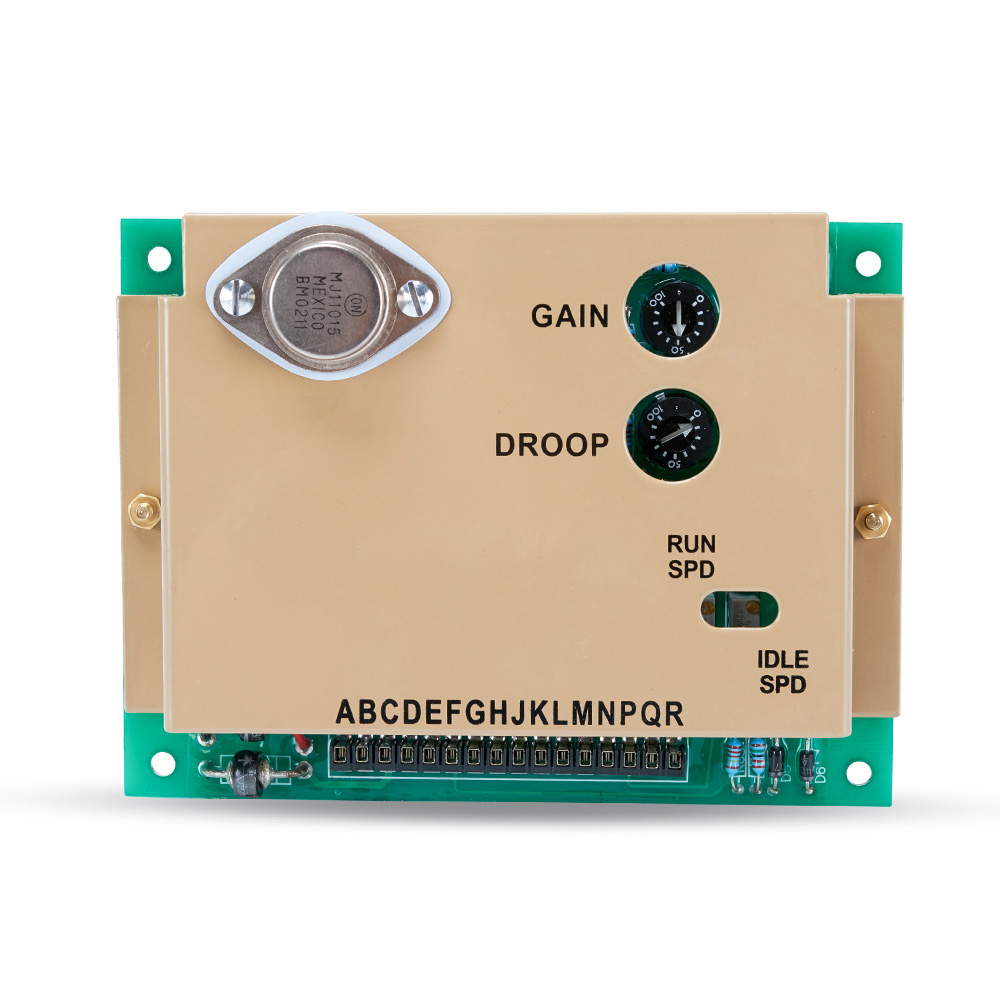

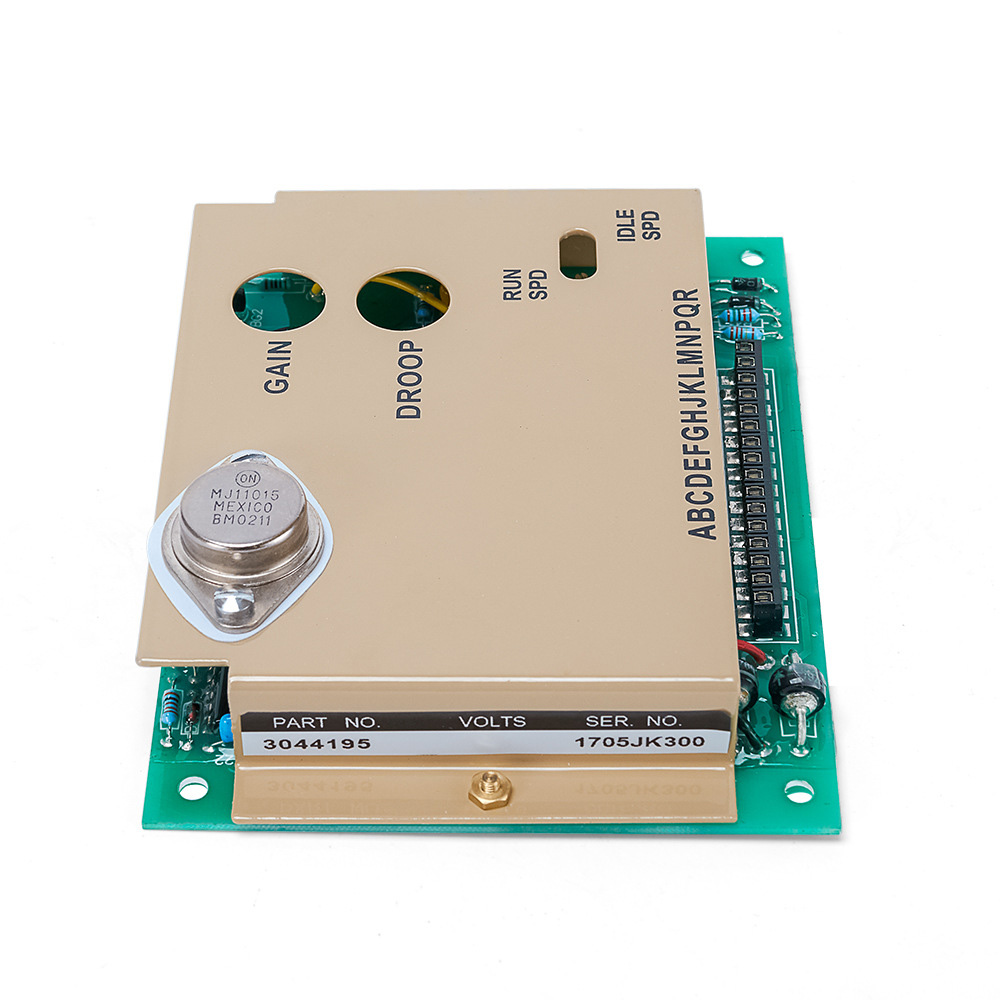

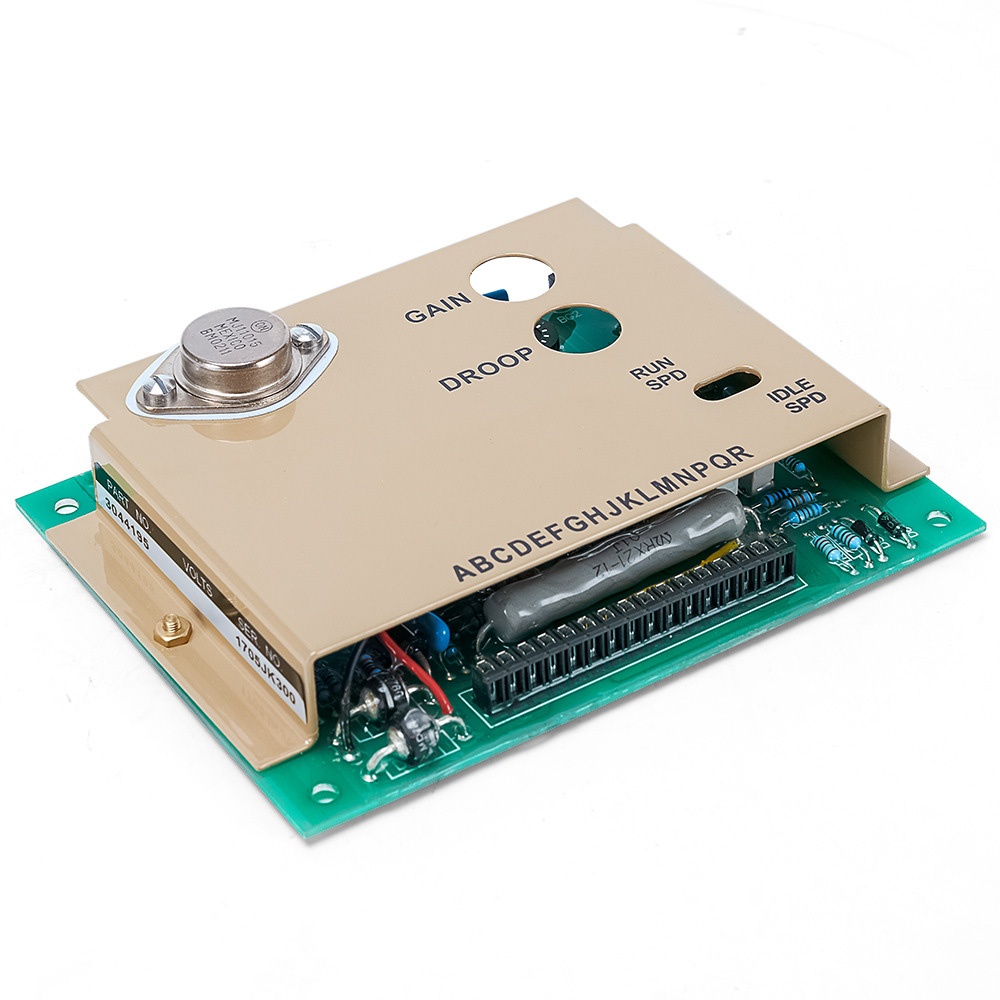

Speed Controller 3044195 For Generator Spare Parts

Specification:
Rpm stability: <± 0.25%
Speed range: 1KHz ~ 6.5KHz
Thermal stability: Max ± 0.7%
Idle regulation: 260 ± 20Hz
Droop regulation: Minimum 15Hz ± 6Hz/ 1 amp
Maximum: 400Hz ± 75Hz/ 1 amp
External speed regulation: ± 200Hz (with 1 kω Connected)
Aux input sensitivity: 148Hz / 1v., ± 10Hz
Impedance: 1mω
Working temp range: -40 ~ 85
Environment:
Working humidity range: Maximum 95%
Stocking temp: -55 ~ 92
Shocking: 20-100Hz 500mm/sec.
Input power supply
Voltage: 24v
Grounding pole: Negative pole
Power supply: 40ma
Actuator continuous current: Minimum 1a, maximum 4.5a
Mpu
Signal: 2 ~ 120v RMS
