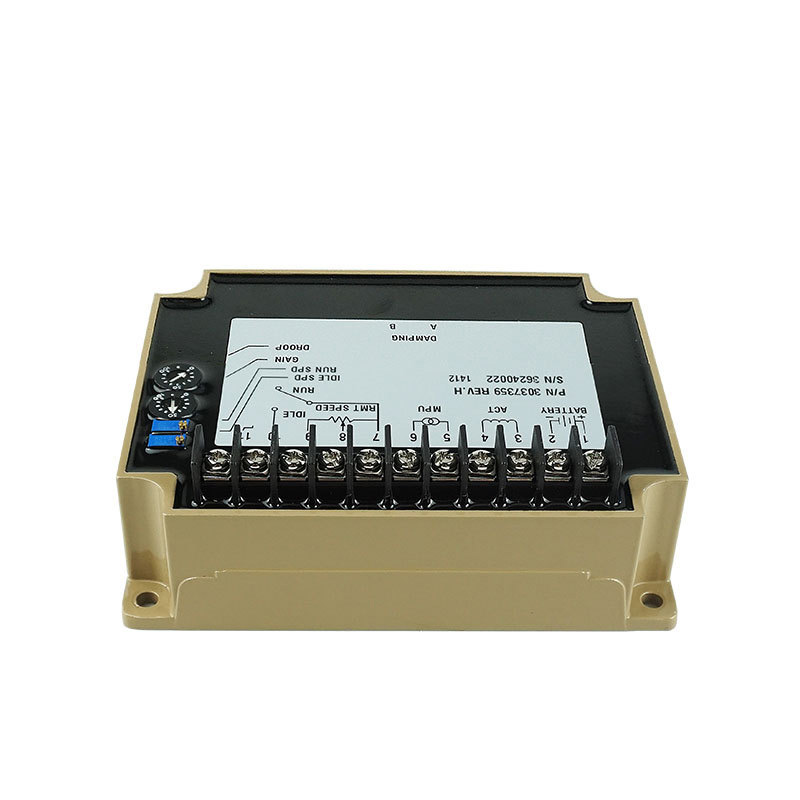

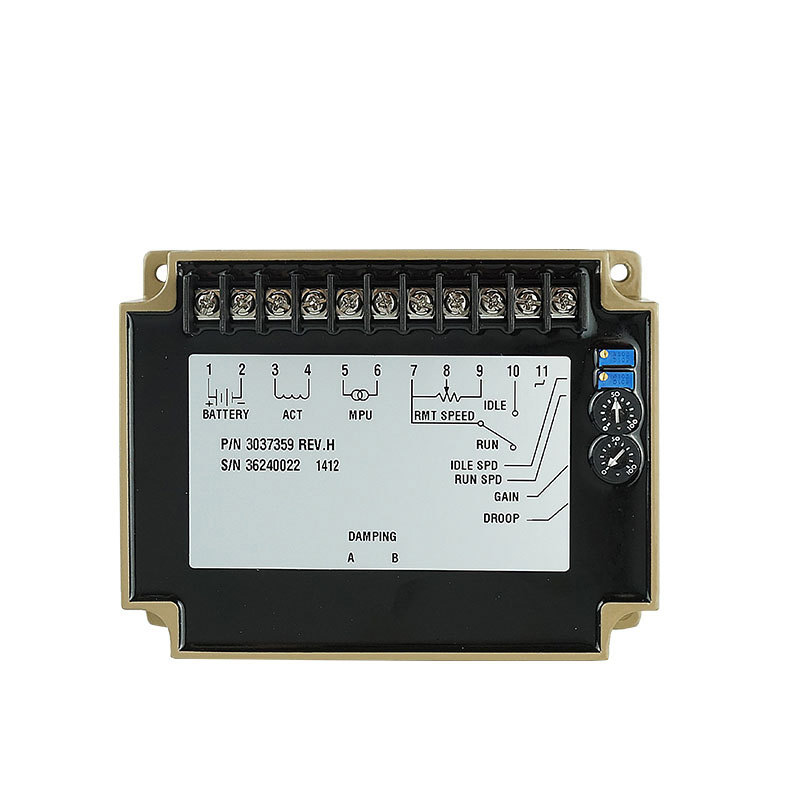

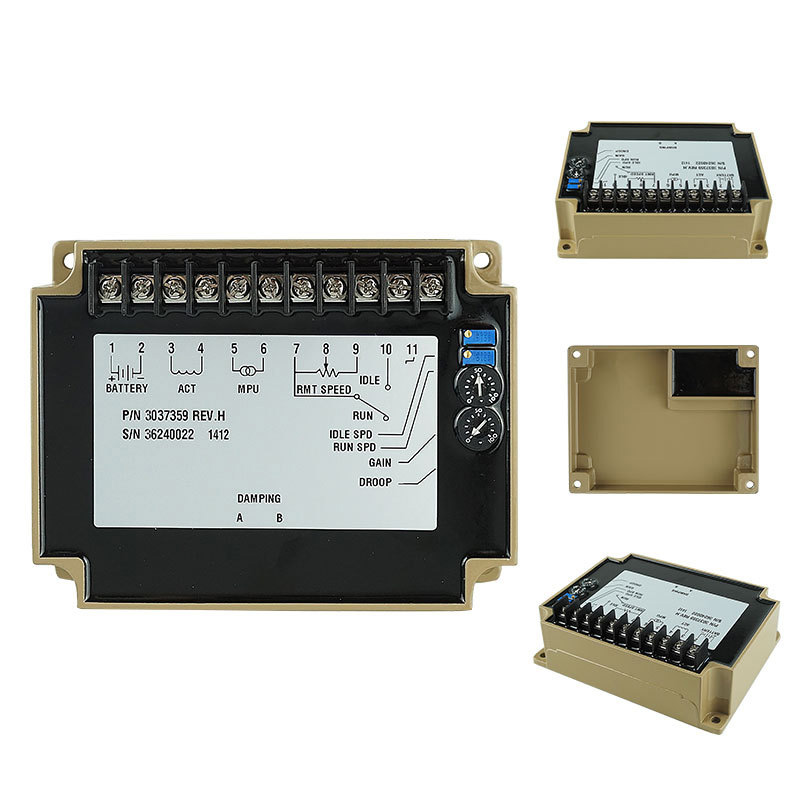

Diesel engine electronic speed governor control 3037359
3037359 is PID adjustment design. It can instant and accurately reaction to the transient change of the loading then to make the engine speed in stable situation. It can perfectly control the engine speed by connected to the EFC series Electronic Acuator and Speed Sensor.
This unit is design to easy installation and can pre-adjustment, including regulation rate and working idling. Different model of EFC series can controll kinds of output generator sets.
Speed Controller
P/N:3037359
Electronic fuel control(EFC)
SPECIFICATION:
RPM Stability: <±0.25%
Speed Range: 1KHz ~ 6.5KHz
Thermal stability: Max ±0.7%
IDLE Regulation: 260 ±20Hz
DROOP Regulation: Minimum 15Hz ±6Hz/ 1 Amp
Maximum: 400Hz ±75Hz/ 1 Amp
External Speed Regulation: ±200Hz (with 1 KΩ connected)
AUX Input Sensitivity: 148Hz / 1V., ±10Hz
Impedance: 1MΩ
Working Temp Range: -40 ~ 85
ENVIRONMENT:
Working Humidity Range: Maximum 95%
Stocking Temp: -55 ~ 92
Shocking: 20-100HZ 500mm/Sec.
INPUT POWER SUPPLY
Voltage: 24V
Grounding Pole: Negative pole
Power Supply: 40mA
Actuator Continuous Current: Minimum 1A, Maximum 4.5A
MPU
Signal: 2 ~ 120V RMS
