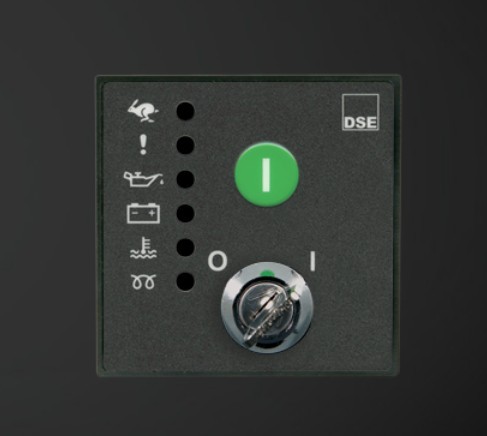

Deepsea DSE701 MKII Manual/Automatic Start Control Module

Deepsea DSE701 MKII Manual/Automatic Start Control Module

The DSE701 MKII controller can be user-configured for Auto or Manual Start operation using the DSE Configuration Suite Lite PC Software. Alternatively the controller can be ordered pre-configured.
The DSE701 MKII offers an excellent range of engine monitoring and protection features.
The module offers inputs to monitor low oil pressure, high engine temperature and overspeed and the manual start version also has a user-defined auxiliary input. Auto Start versions also include an input option for a start signal from a remote location.

Key features
• Configurable Auto and Manual Start versions
• Remote start input available (when in Auto Start mode)
• Auxiliary shutdown input available (when in Manual Start mode)
• Engine monitoring and protection
• LED status indication
• Automatic engine pre-heat
• Overspeed protection
• Front panel mounting
Key benefits
• The DSE701 MKII comes pre-configured for frequency (speed sensing) but can be user-configured for magnetic pick-up
• Uses DSE813 USB Communications Adaptor and DSE Configurations Suite Lite PC Software for simple configuration
• Licence-free PC Software
• User-friendly set-up and fascia layout
