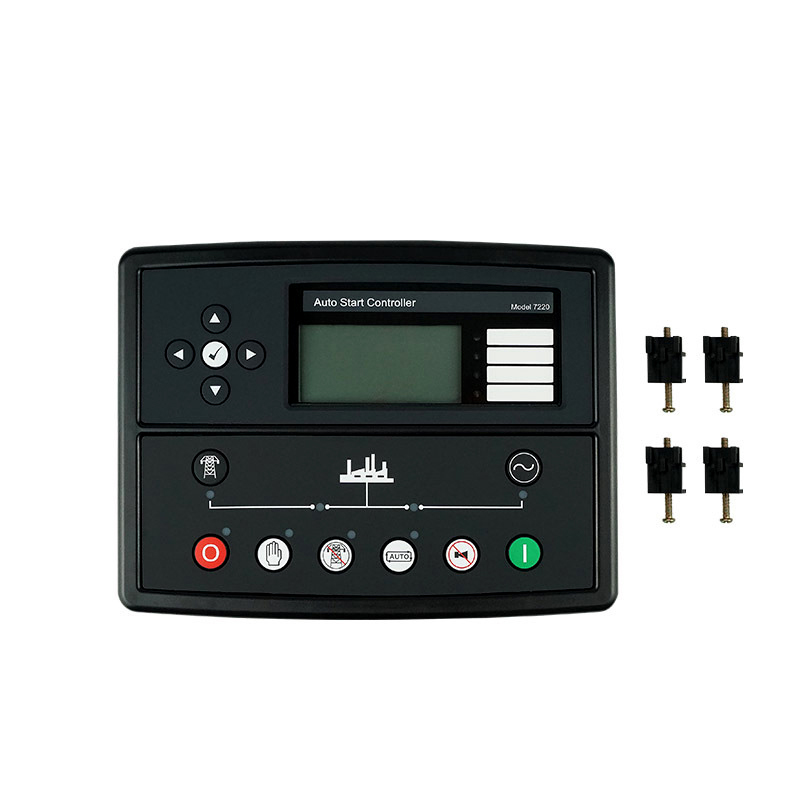

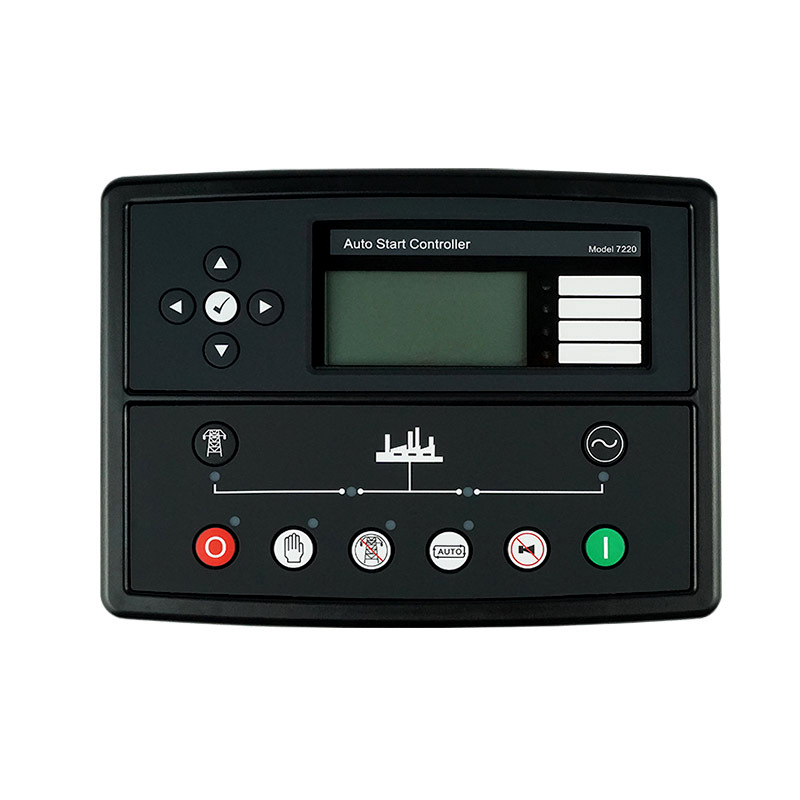

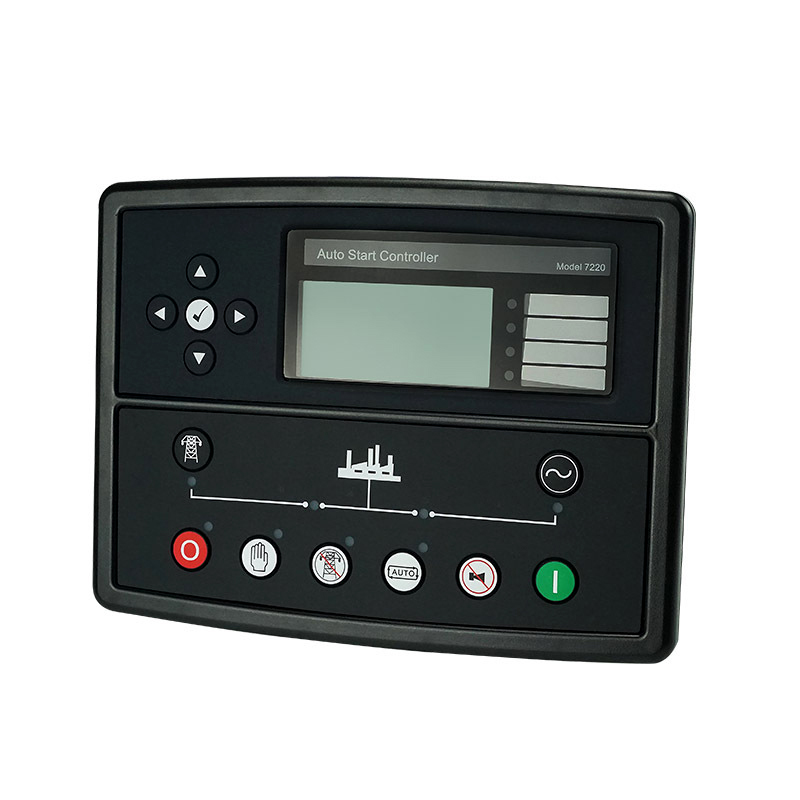

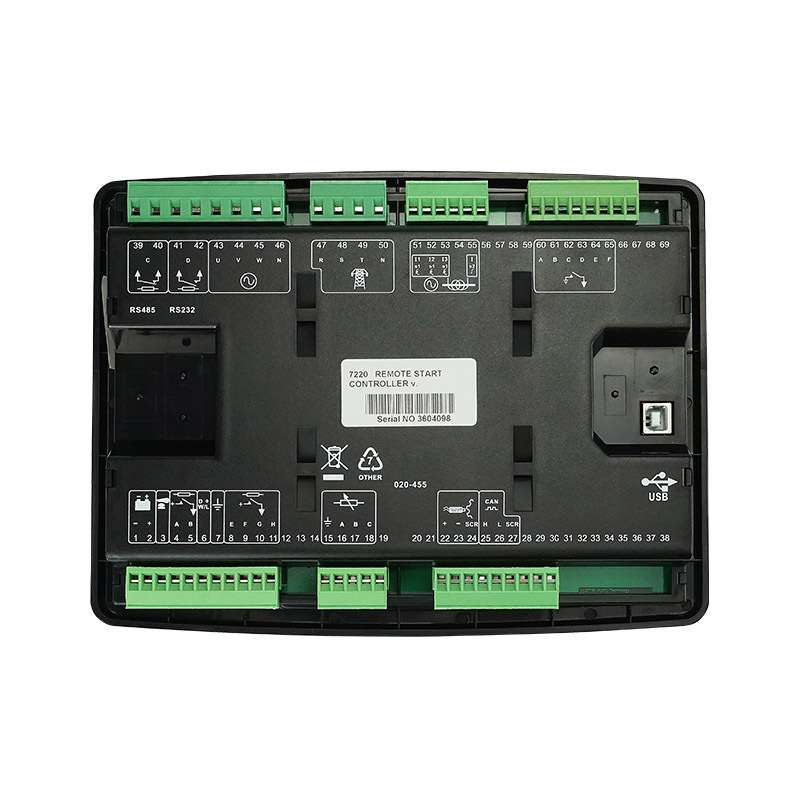

Diesel Generator Controller Spare Part DSE7220
Diesel Generator Controller Spare Part DSE7220 Diesel Generator Controller Spare Part DSE7220 Diesel Generator Controller Spare Part DSE7220 Diesel Generator Controller Spare Part DSE7220

Diesel Generator Controller Spare Part DSE7220

Product ID : DSE7220
Product Tags : Auto Genset Generator ControllerElectronic Auto Start Generator SetGenerator ATS ControllerGenerator Spare PartsGenerator Speed ControllerGenerator parts speed control unitIntelligent Generator Controller AutomaticRemote Monitor ATS AMF Generator controllerSmart Genset Controllerelectronic engine governor control
Product Description
Deep Sea Auto Mains Failure control module DSE7220
DEEP SEA AUTO MAINS FAILURE
CONTROL MODULE DSE7220
8V to 35V continuous
Cranking dropouts
able to survive 0V for 50mS
Maximum operating current
340mA at 12V,160mA at 24V
Maximum standby current
160mA at 12V ,80mA at 24V
Maximum sleep current
0-35V
Output (fuel / start )
15 A short term,5A continuous ,at supply voltage
Auxiliary outputs
2 A DC at supply voltage
Generator voltage range
15 V to 333 V AC (Ph to N) 26 V to 719 V AC (Ph to Ph)
Generator frequency range
3.5 Hz to 75 Hz
Mains (utility) only voltage range
15V to 333 V AC(ph to N)
Overall size
240mm*181mm*42mm
Panel cut-out dimensions
220mm*160mm
Maximum panel thickness
8mm
