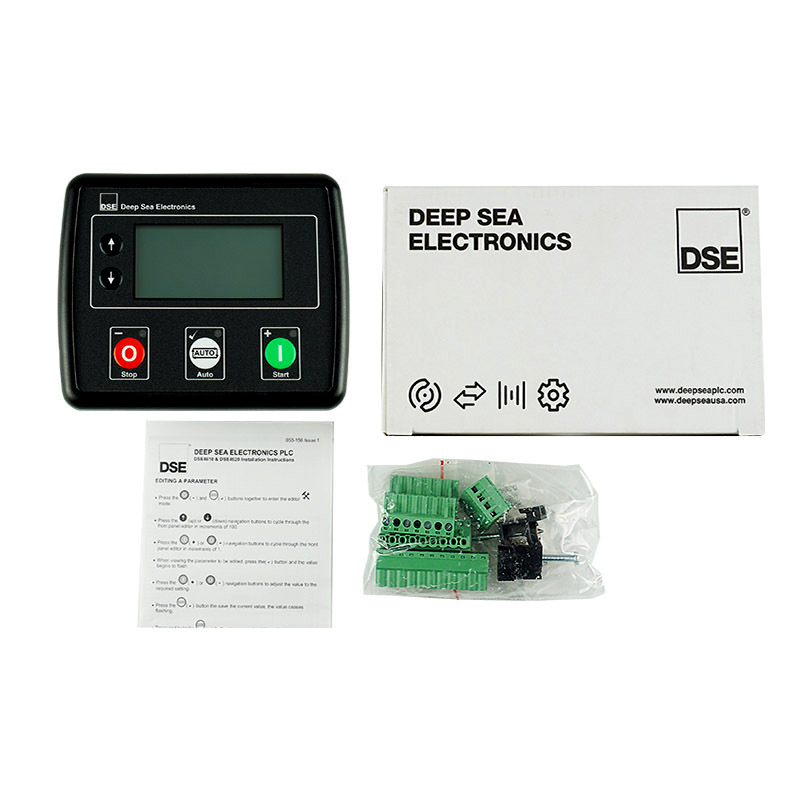

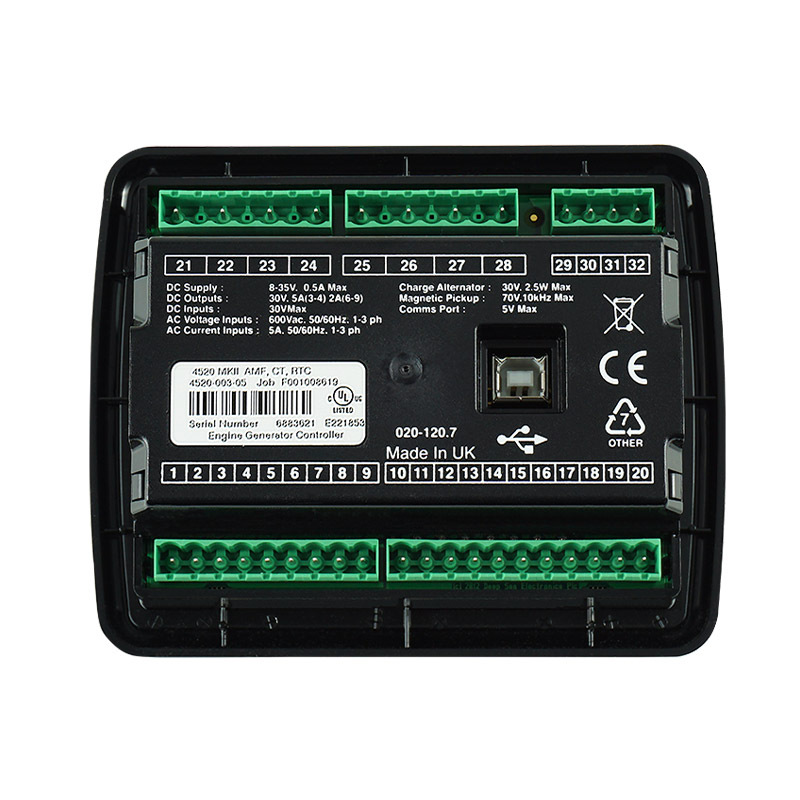

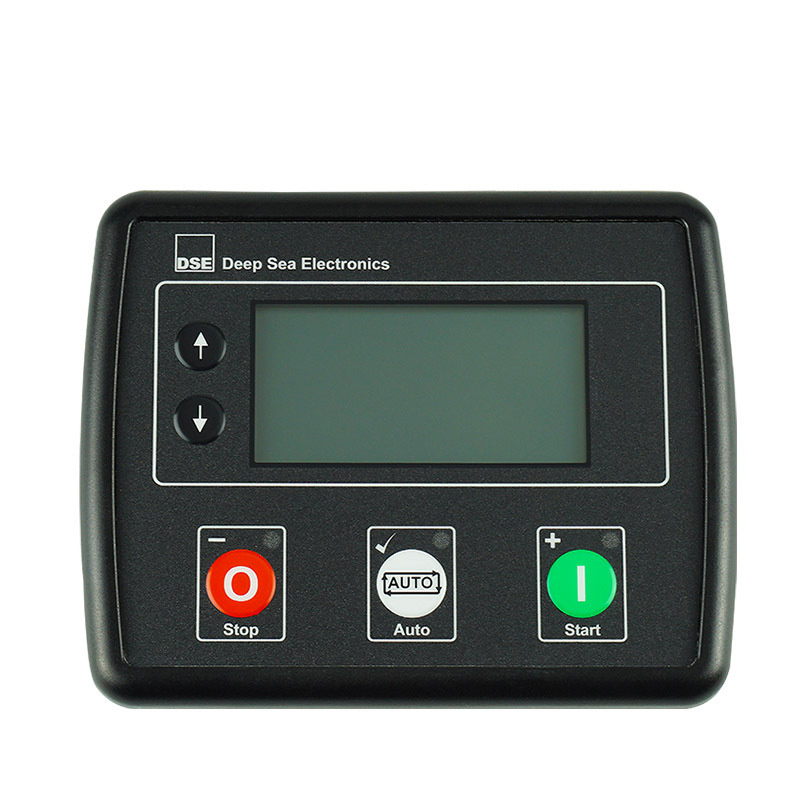

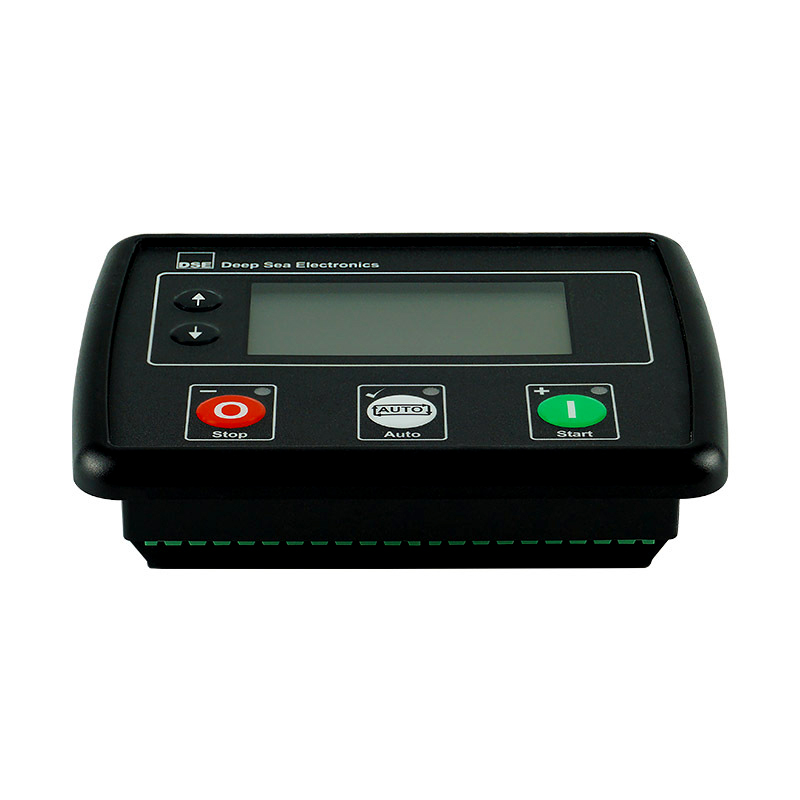

Generator Controller DSE4520 for Generator Spare Parts
KEY BENEFITS
Ultimate size to feature ratio
Automatically transfers between
mains (utility) and generator
(DSE4520 only)
Hours counter provides accurate
information for monitoring and
maintenance periods
User-friendly set-up and button
layout for ease of use
Multiple parameters are
monitored simultaneously which are clearly displayed on the largest back-lit icon display in its class
The module can be configured to suit a wide range of applications
Uses DSE Configuration Suite PC Software for simplified configuration
Compatible with a wide range of CAN engines
Licence-free PC software
IP65 rating (with optional
gasket) offers increased resistance to water ingress
KEY FEATURES
• Alternator frequency & CAN speed sensing in one variant
• Largest back-lit icon display in its class
• Heated display option
• Real time clock provides
accurate event logging
• Fully configurable via the fascia
or PC using USB
communication
• Extremely efficient power save
mode
• 3 phase generator sensing
• 3 phase mains (utility) sensing
(DSE4520 only)
• Compatible with 600 V ph to ph
nominal systems
• Generator/load power
monitoring (kW, kV A, kV Ar, pf) • Accumulated power monitoring
(kW h, kVA h, kVAr h)
• Generator overload protection
(kW)
• Generator/load current
monitoring and protection
• Fuel and start outputs (configurable when using CAN)
• 4 configurable DC outputs (2 for DSE4510)
• 3 configurable analogue/digital inputs
• 4 configurable digital inputs • Configurable staged loading
outputs
• 3 engine maintainance alarms
• Engine speed protection
• Engine hours counter
• Engine pre-heat
• Engine run-time scheduler
• Engine idle control for starting &
stopping
• Battery voltage monitoring
• Start on low battery voltage
• Configurable remote start input • 1 alternative configuration
• Comprehensive warning,
electrical trip or shutdown
protection upon fault condition • LCD alarm indication
