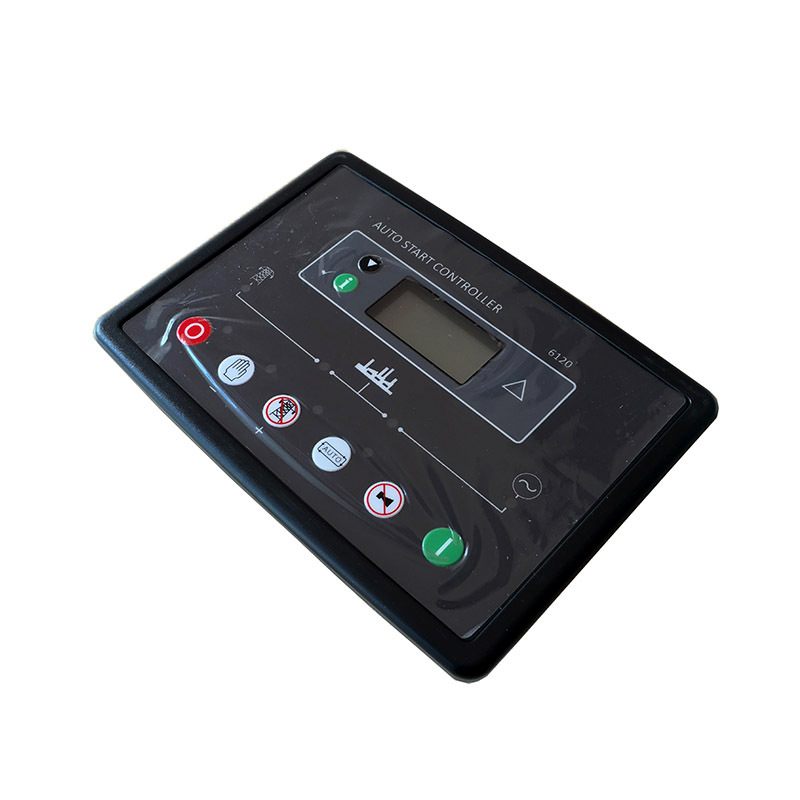

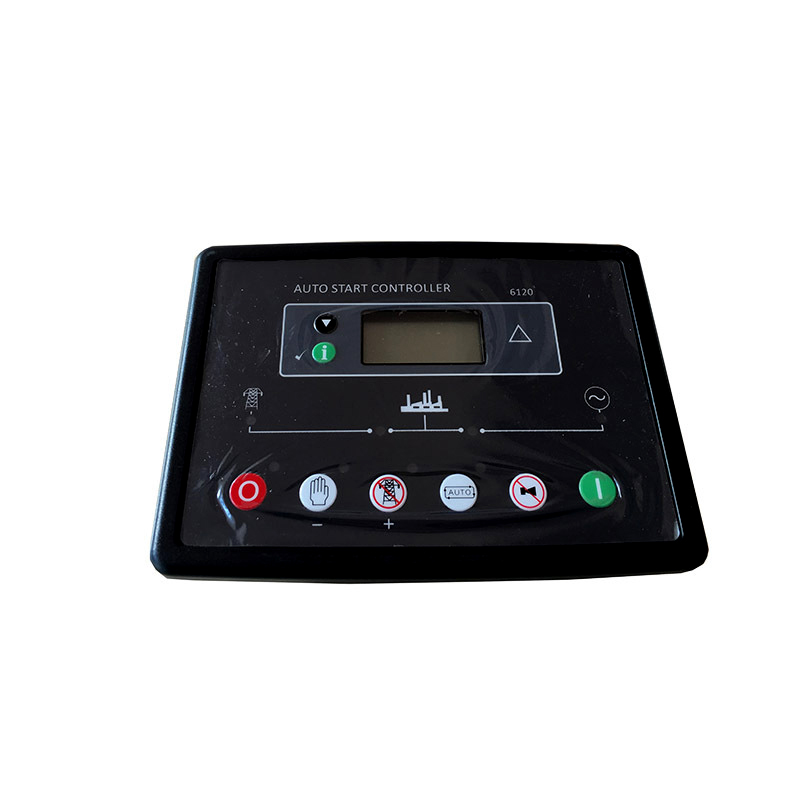

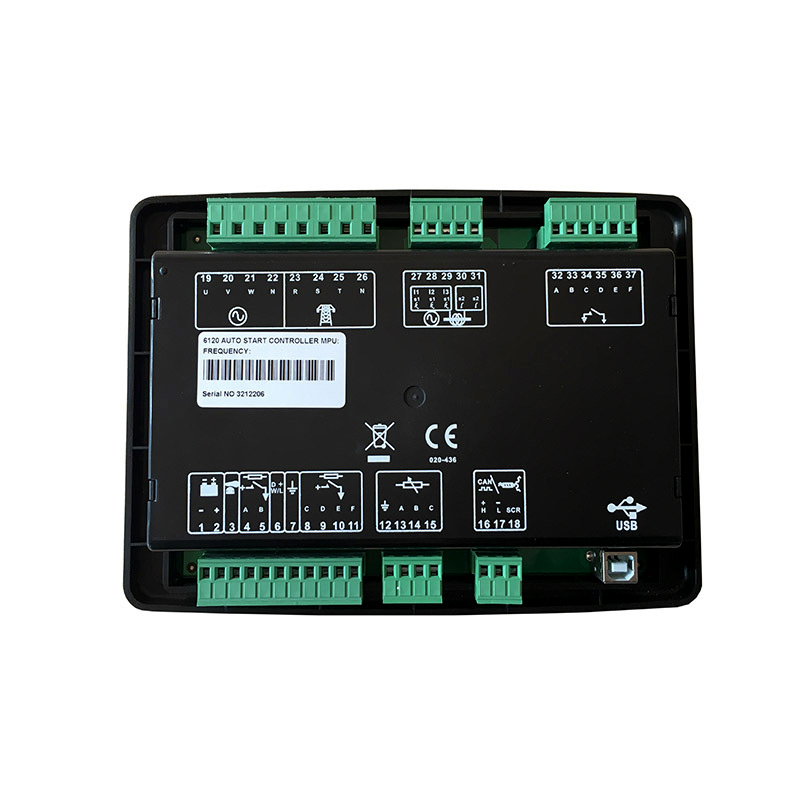

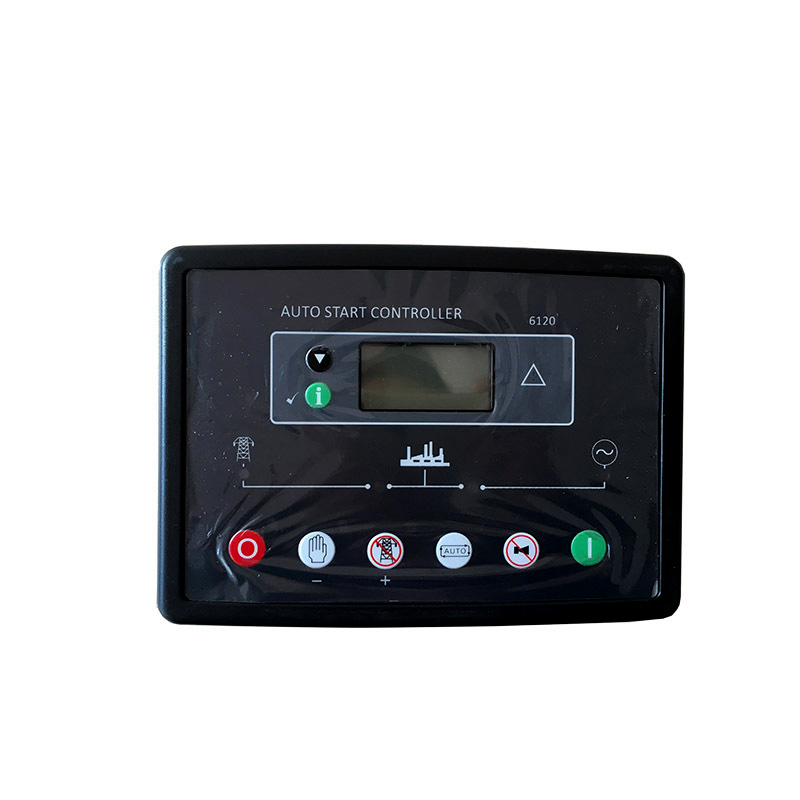

Genset Controller Automatic Start Module DSE6120 Electronics Generator Controller DSE6120
Product ID : DSE6120
Product Tags :
Auto Genset Generator ControllerElectronic Auto Start Generator SetGenerator ATS ControllerGenerator Spare PartsGenerator Speed ControllerGenerator parts speed control unitIntelligent Generator Controller AutomaticRemote Monitor ATS AMF Generator controllerSmart Genset Controllerelectronic engine governor control
Product Description
Specification:
| Items | Contents |
| Operating Voltage | DC8.0V to DC35.0V,Continuous Power Supply. |
| Power Consumption | <3W(standby:≤2W) |
| Alternator Input Range | |
| 3-Phase4-Wire | 15V - 360 V AC (ph-N) |
| 3-Phase3-Wire | 26V - 620 V AC (ph-ph) |
| Single-phase2-wire | 15V - 360 V AC (ph-N) |
| 2-Phase3-Wire: | 15V - 360 V AC (ph-N) |
| Alternator Frequency | 50/60Hz |
| Speed Sensor voltage VPP | 2.2 - 100Vpp (Peak to peak) |
| Speed Sensor Frequency | 10000Hz (max) |
| Start Relay Output | 16Amp Controller Power Voltage Output |
| Fuel Relay Output | 16Amp Controller Power Voltage Output |
| Programmable Relay Output 1 | 7Amp 250VAC Voltage Free Output |
| Programmable Relay Output 2 | 7Amp 250VAC Voltage Free Output |
| Programmable Relay Output 3 | 16Amp 250VAC Voltage Free Output |
| Programmable Relay Output 4 | 16Amp 250VAC Voltage Free Output |
| Case Dimension | 210mm x 152 mm x 48 mm |
| Panel Cutout | 186mm x 141mm |
| C.T. Secondary | 5A Rated |
| Working Conditions | Temperature: (-25~+70)℃ Humidity:(20~90)% |
| Storage Condition | Temperature::(-40~+85)℃ |
| Protection Level | IP55:When waterproof rubber seal installed between the controller and panel fascia. |
| IP42:When waterproof rubber seal is not installed between the controller and panel fascia. | |
| Insulating Intensity | Object: input/output/power |
| Quote standard: IEC688-1992 | |
| Test way: AC1.5kV/1min leakage current:3mA |
