PRODUCT

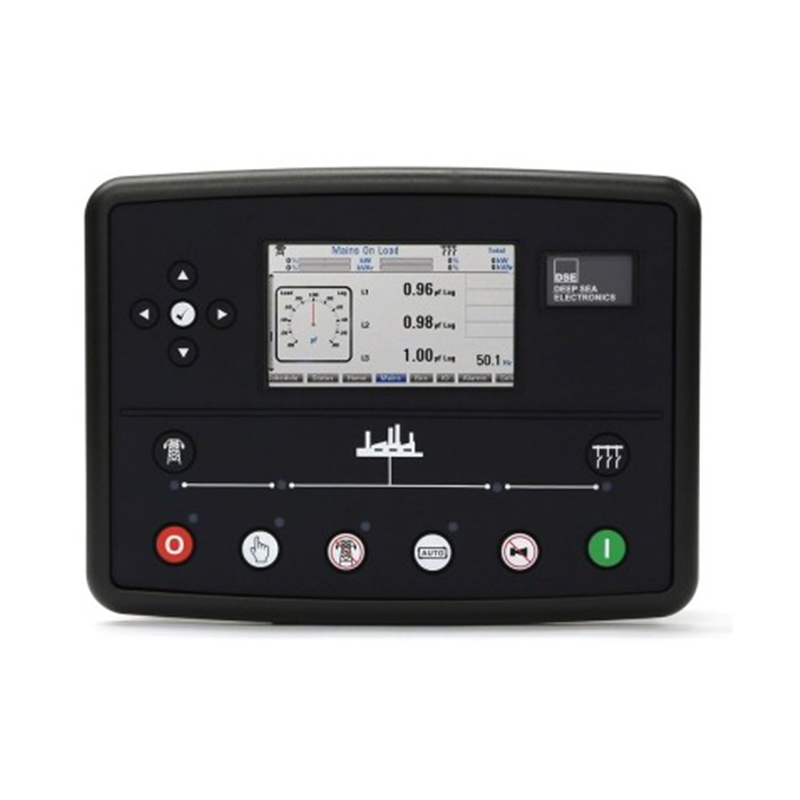

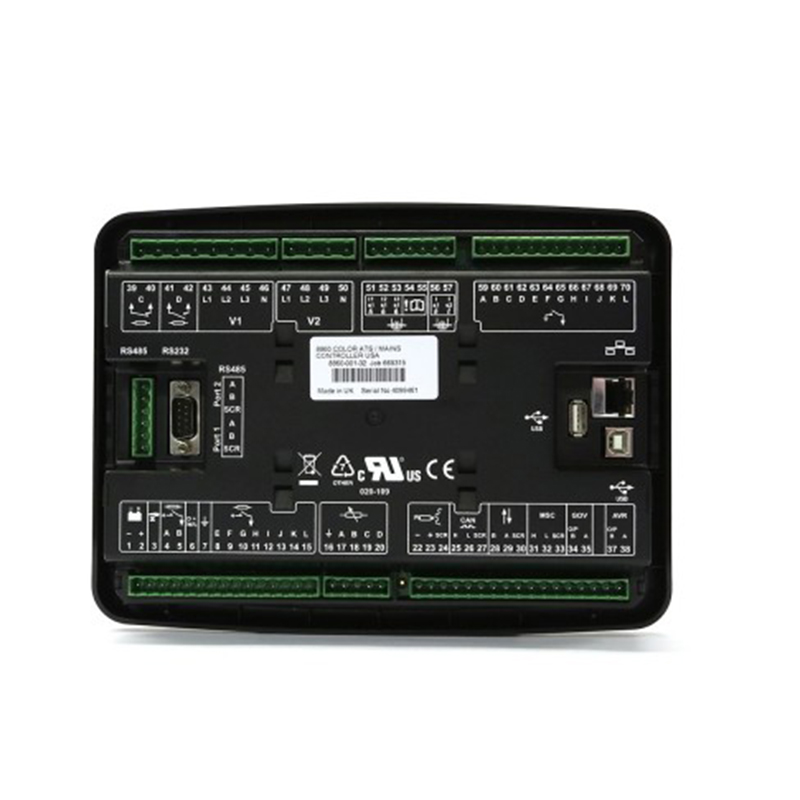

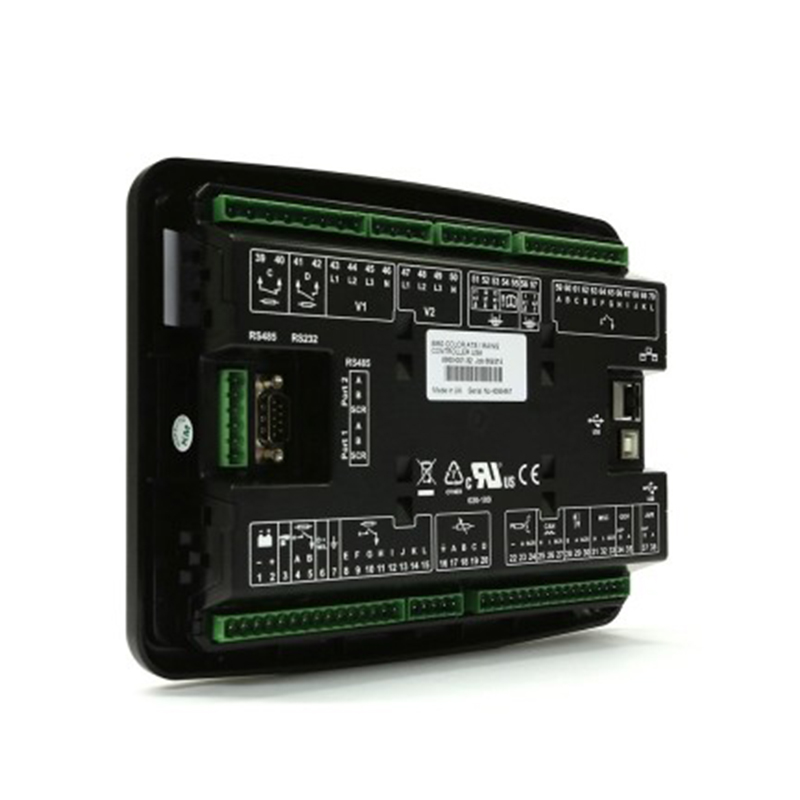

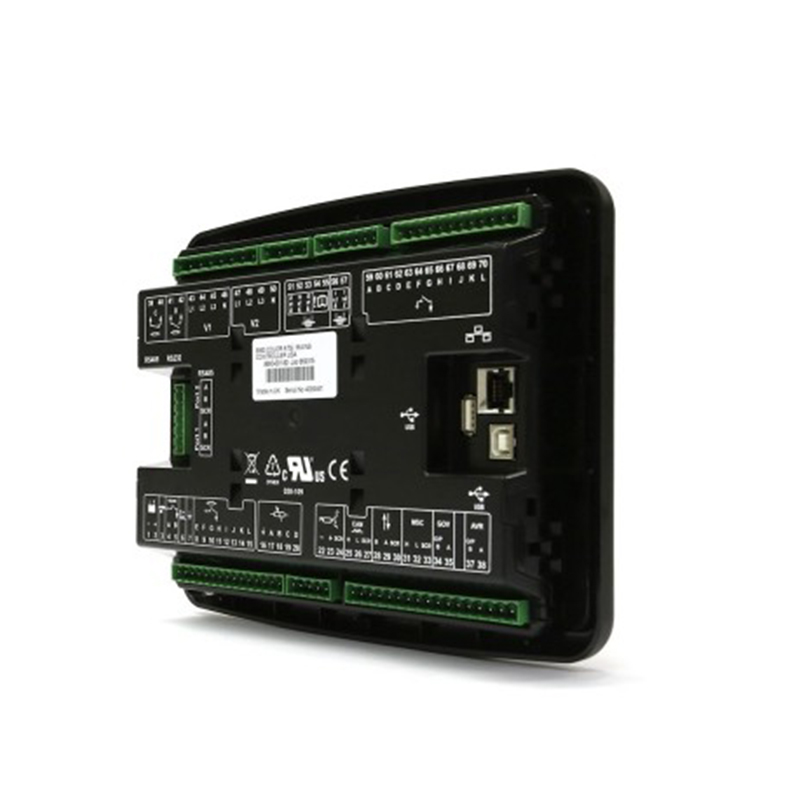

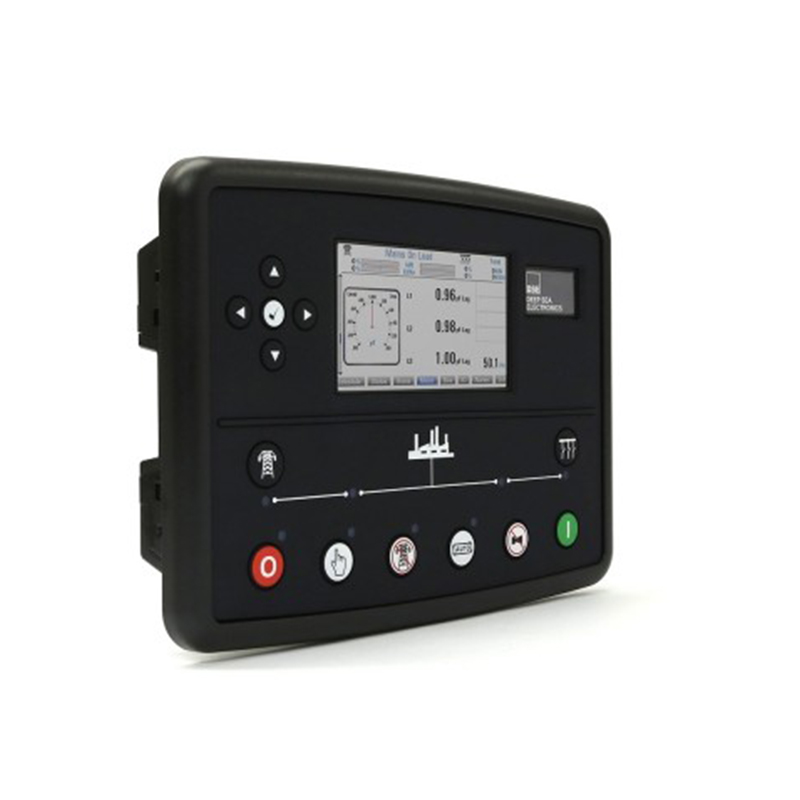

DSE8860 Genset Generator Controller Automatic Start Module
OVERALL SIZE
245 mm x 184 mm x 50 mm (9.6” x 7.2” x 2.0”)
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7" x 6.3")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)
WEIGHT
0.88kg
PRODUCT VARIANTS
8860-01 - 8860 Auto Transfer Switch & Mains (Utility) Graphical Colour Display Control Module
The DSE8860 is an intelligent graphical colour display single or multi-mains (utility) controller with automatic transfer switch capabilities.
The control module synchronises single or multiple set systems in conjunction with DSE synchronising & load share control modules.
CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous
CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V.
This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
MAXIMUM OPERATING CURRENT
600mA at 12V, 300mA at 24V (operating current adjustable with backlight intensity)
MAXIMUM STANDBY CURRENT
330mA at 12V, 160mA at 24V
VOLTAGE RANGE
15 V to 333 V AC (L-N)
FREQUENCY RANGE
3.5 Hz to 75 Hz
OUTPUTS C & D
8 A at 250 V AC (Volt free)
AUXILIARY OUTPUTS E,F,G,H, I & J
2 A DC at supply voltage
