Generator control module DSE3210
Generator controller DSE3210

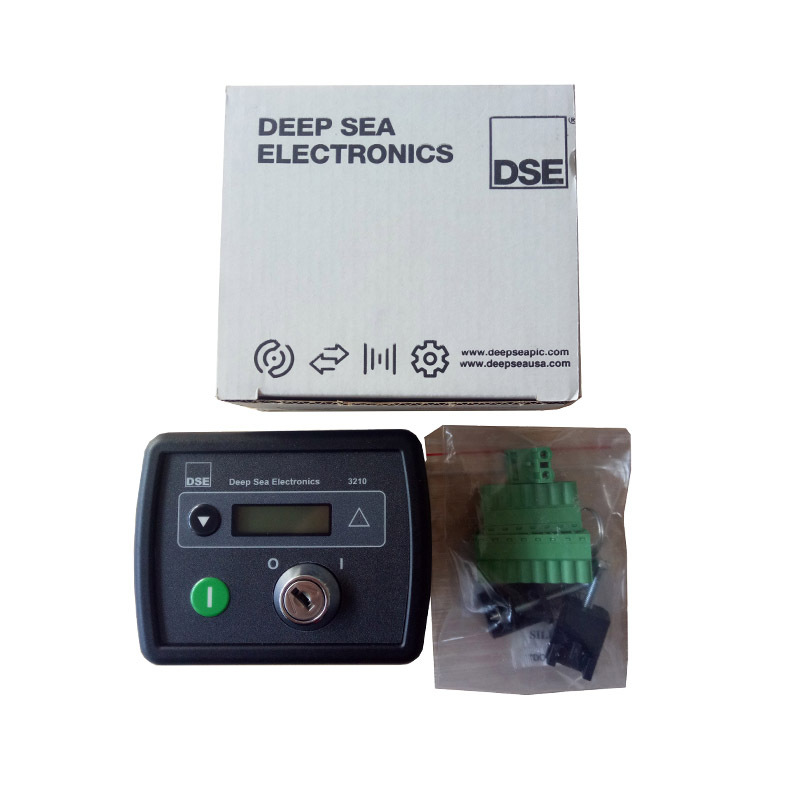

GENERATOR CONTROL MODULE MANUAL START CONTROLLER DSE3210 can be utilised as a Manual or Auto Start Module for single gen-set applications or engine only applications. The module has been designed to work with electronic and non-electronic engines, providing advanced engine monitoring and protection features.

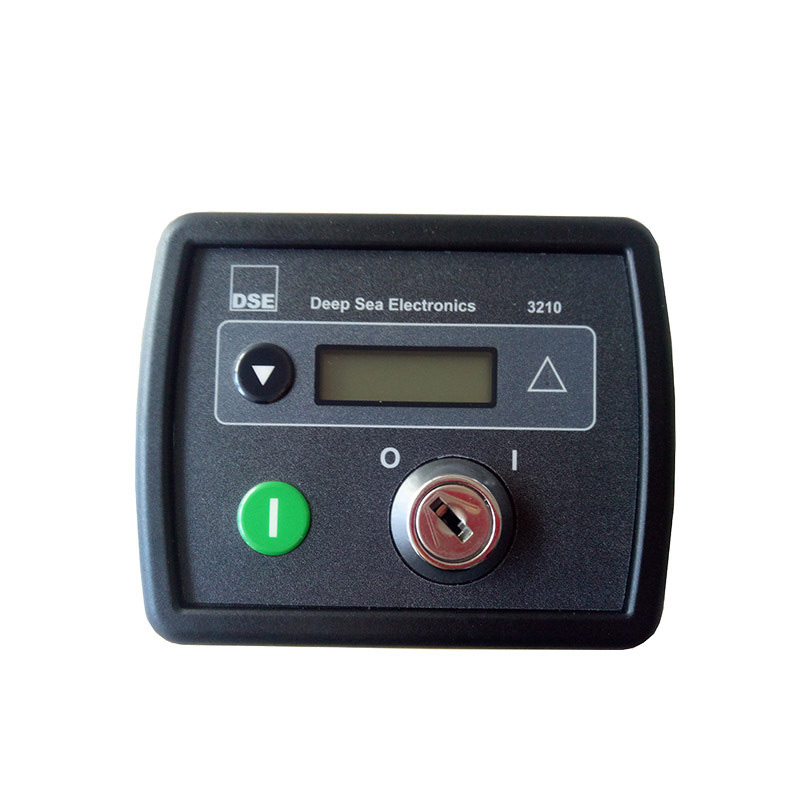

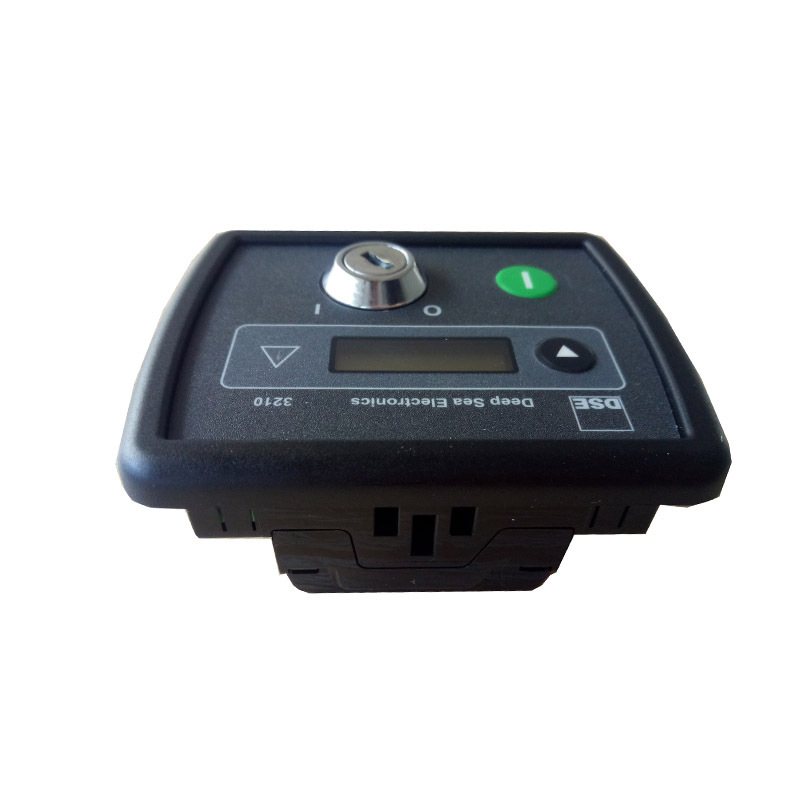

The DSE3210 includes a back-lit icon LCD display which clearly shows the status of the engine at all times.
The module monitors engine speed, frequency, voltage and engine run hours and also displays the warning and shutdown status.

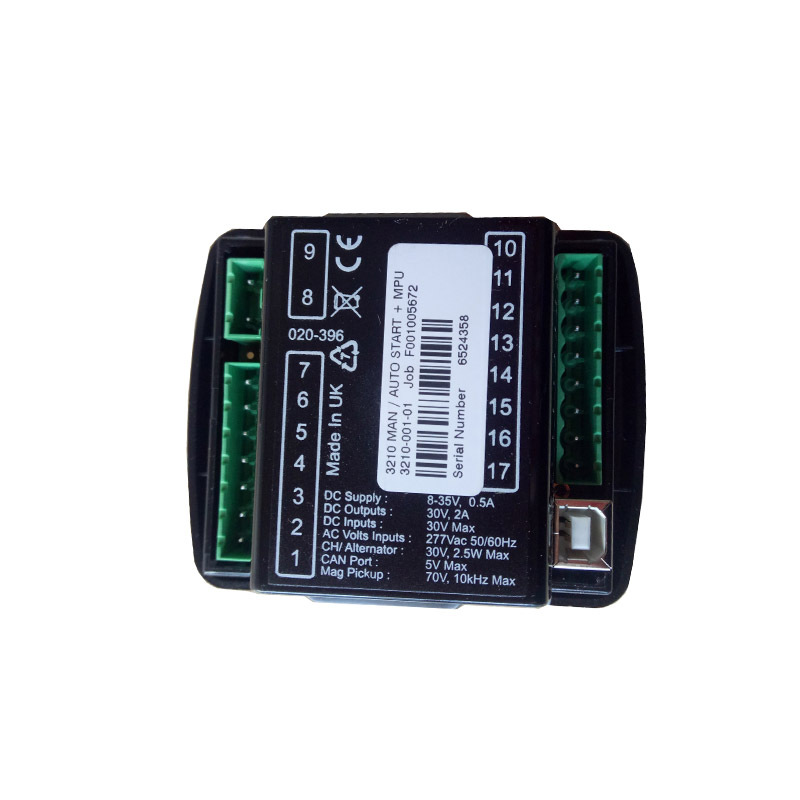

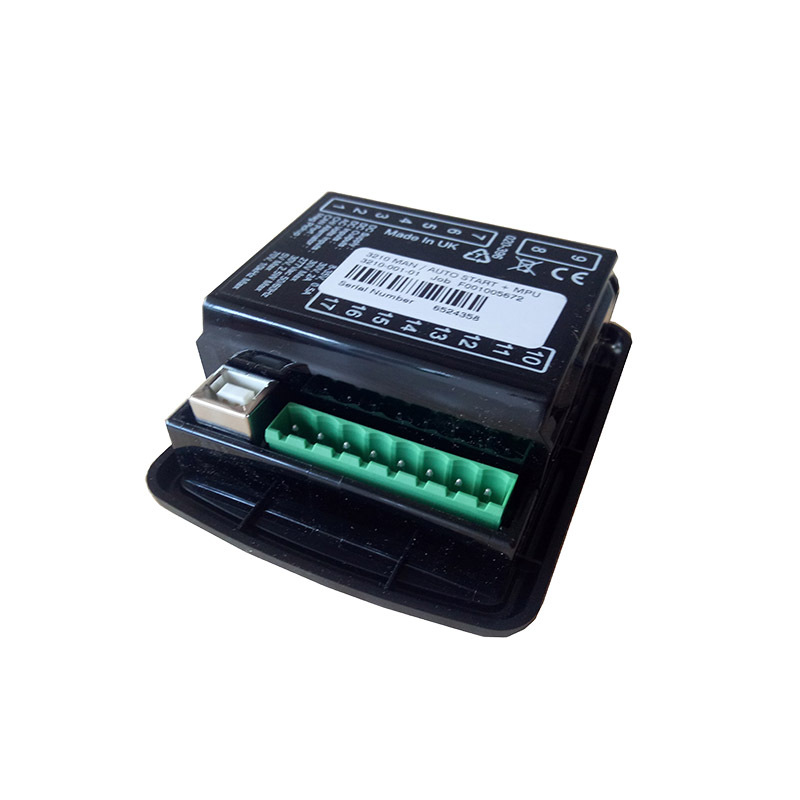

The module includes fixed and flexible outputs as well as configurable inputs making this product ideal for a wide variety of applications. The module can either be programmed using the front panel or by using the DSE Configuration Suite PC software.
|
GENERATOR CONTROL MODULE MANUAL START CONTROLLER DSE3210 |
|||
| DC SUPPLY | GENERATOR | ||
| CONTINUOUS VOLTAGE RATING | 8 V to 35 V Continuous | VOLTAGE RANGE | 15 V - 333 V AC (L-N) |
| CRANKING DROPOUTS | Able to survive 0 V for 50 mS | FREQUENCY RANGE | 3.5 Hz to 75 Hz |
| CHARGE FAIL/ EXCITATION | 8 V to 35 V fixed power source 2.5 W | MAGNETIC PICK UP | |
| NOMINAL STANDBY CURRENT | 35 mA at 12 V, 30 mA at 24 V | VOLTAGE RANGE | +/- 0.5 V to 70 V |
| MAXIMUM OPERATING CURRENT | 55 mA at 12 V, 60 mA at 24 V | FREQUENCY RANGE | 10,000 Hz (max) |
| OUTPUTS | DIMENSIONS | ||
| OUTPUT A (FUEL) | 2 A DC at supply voltage | OVERALL | 98 mm x 79 mm x 40 mm |
| OUTPUT B (START) | 2 A DC at supply voltage | PANEL CUT-OUT | 80 mm x 68 mm |
| AUXILIARY OUTPUTS C,D | 2 A DC at supply voltage | MAXIMUM PANEL THICKNESS | 8 mm |
