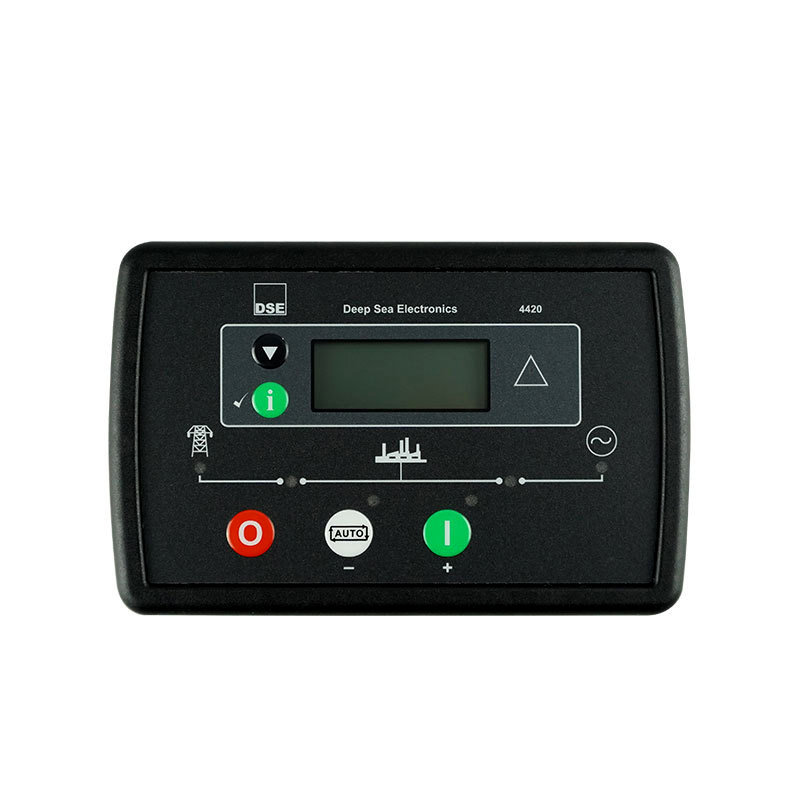

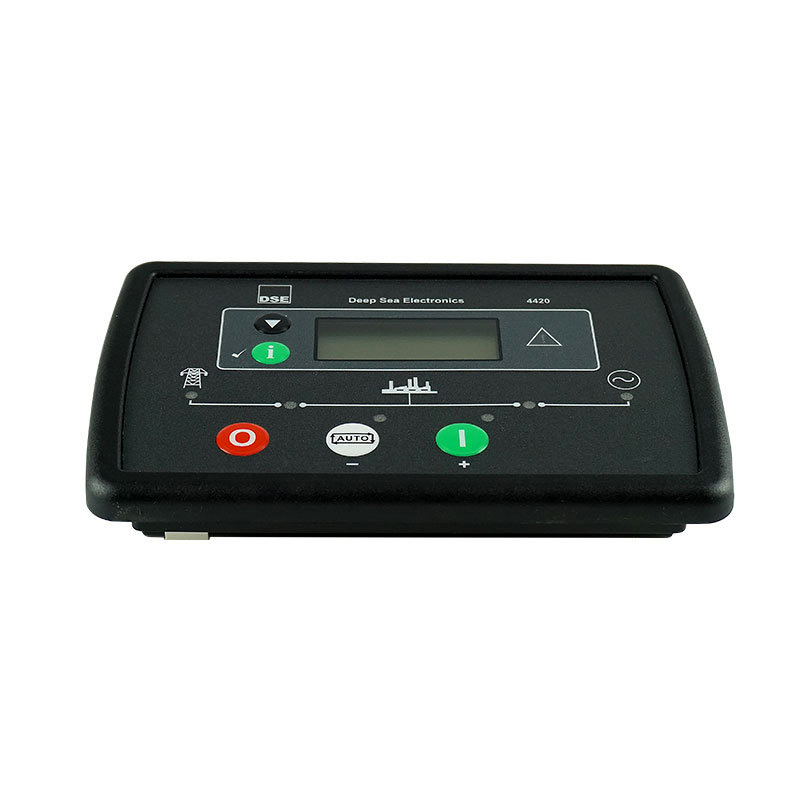

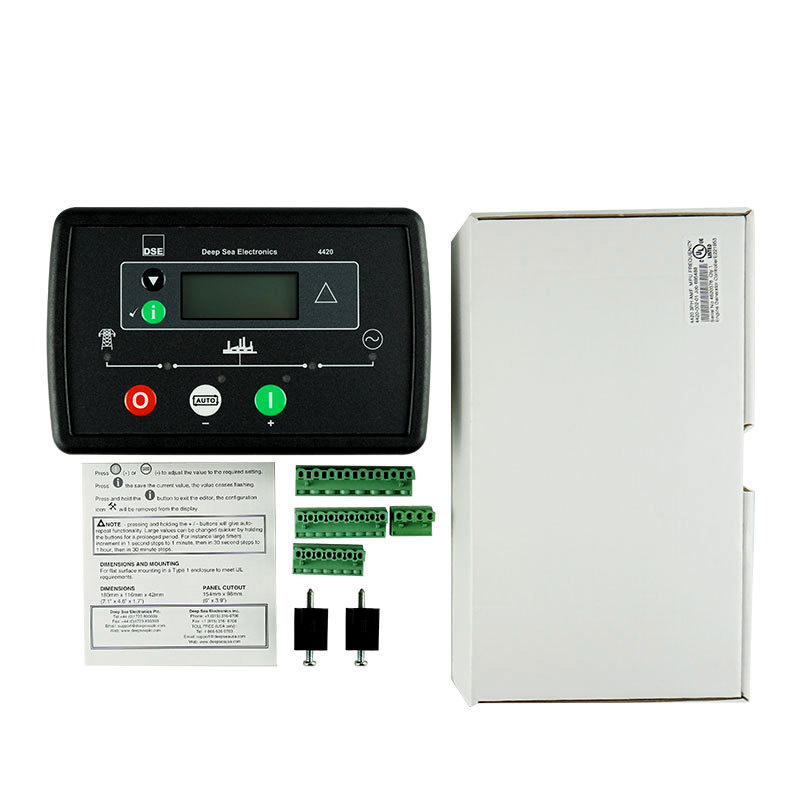

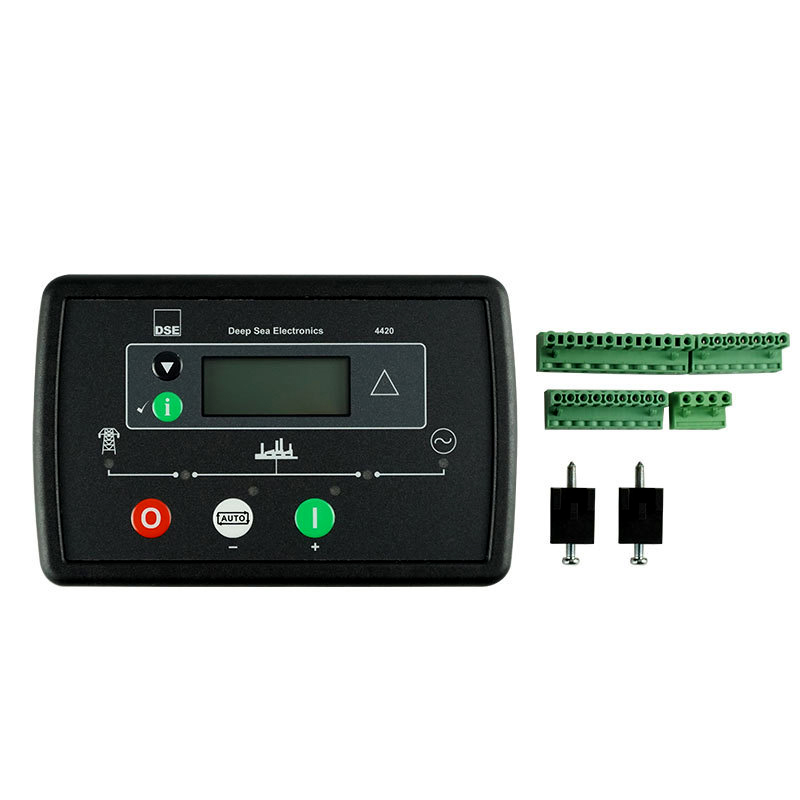

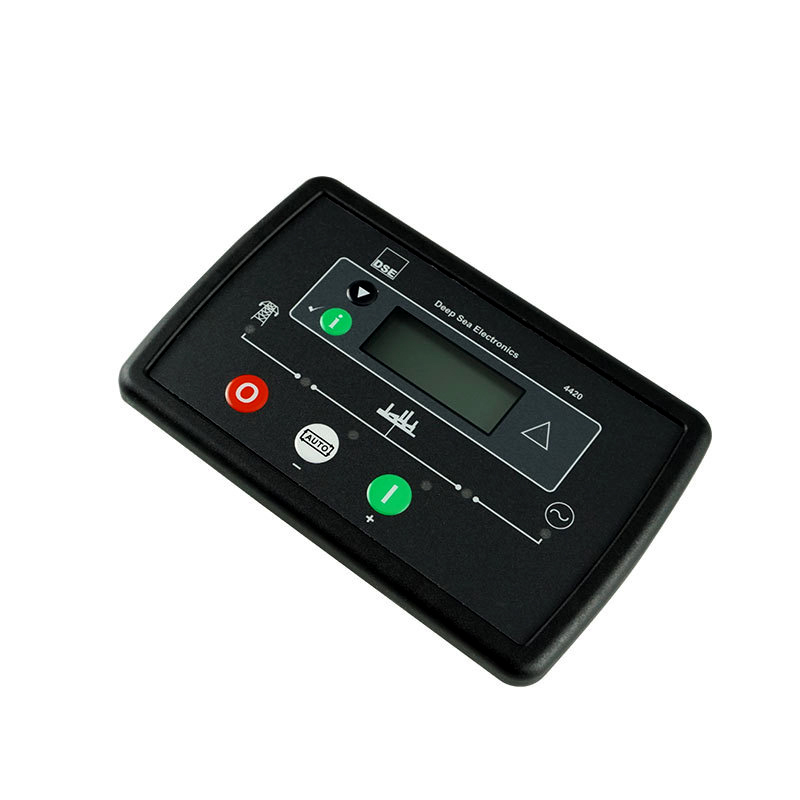

Dse4420 Module Controller For Generator
The DSE4420 is an Auto Mains (Utility) Failure Control Module with 3 phase sensing, suitable for a wide variety of single, diesel or gas, gen-set applications. Monitoring, speed, frequency, voltage, oil pressure, coolant temperature and fuel level.
The module will display warnings, shutdown and engine status information on the back-litLCD screen and illuminated LED.
Key features
• CAN and magnetic pick-up/Alt.sensing versions (specify on ordering)
• 3 phase generator monitoring
• Four digital inputs/three analogue inputs
• Six outputs (all six configurable on CANbus version,four configurable on magnetic pickup version)
• Three phase sensing
• Event log (5)
• 50/60 Hz calibration setting
• Configurable timers
• Automatic shutdown or warning when fault conditions are detected
• Overspeed protection
• Manual and remote start
• Engine pre-heat
• Protected Solid State Outputs(PSS)
• Advanced metering capability
• Front panel/PC programming
• Hours counter
• LED indicators
• Back-lit character icon LCD display
Key benefits
• Automatically transfers between mains (utility) and generator power
• Hours counter provides accurate information for monitoring and maintenance periods
• User-friendly set-up and button layout
• Multiple engine parameters are monitored simultaneously
• Module can be configured to suit individual applications
• Compatible with a wide range of CAN engines
• IP65 rating offers advanced resistance to water ingress when the gasket is fitted
• License-free PC software.
