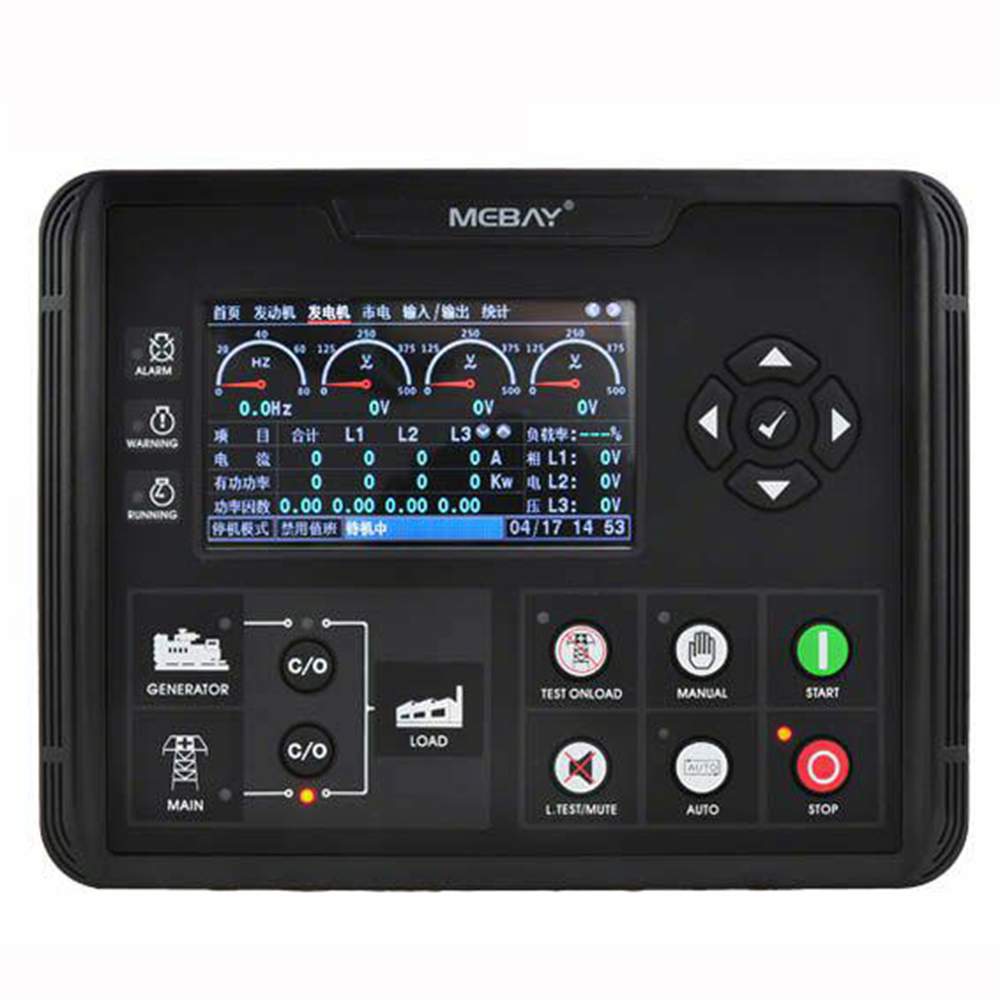

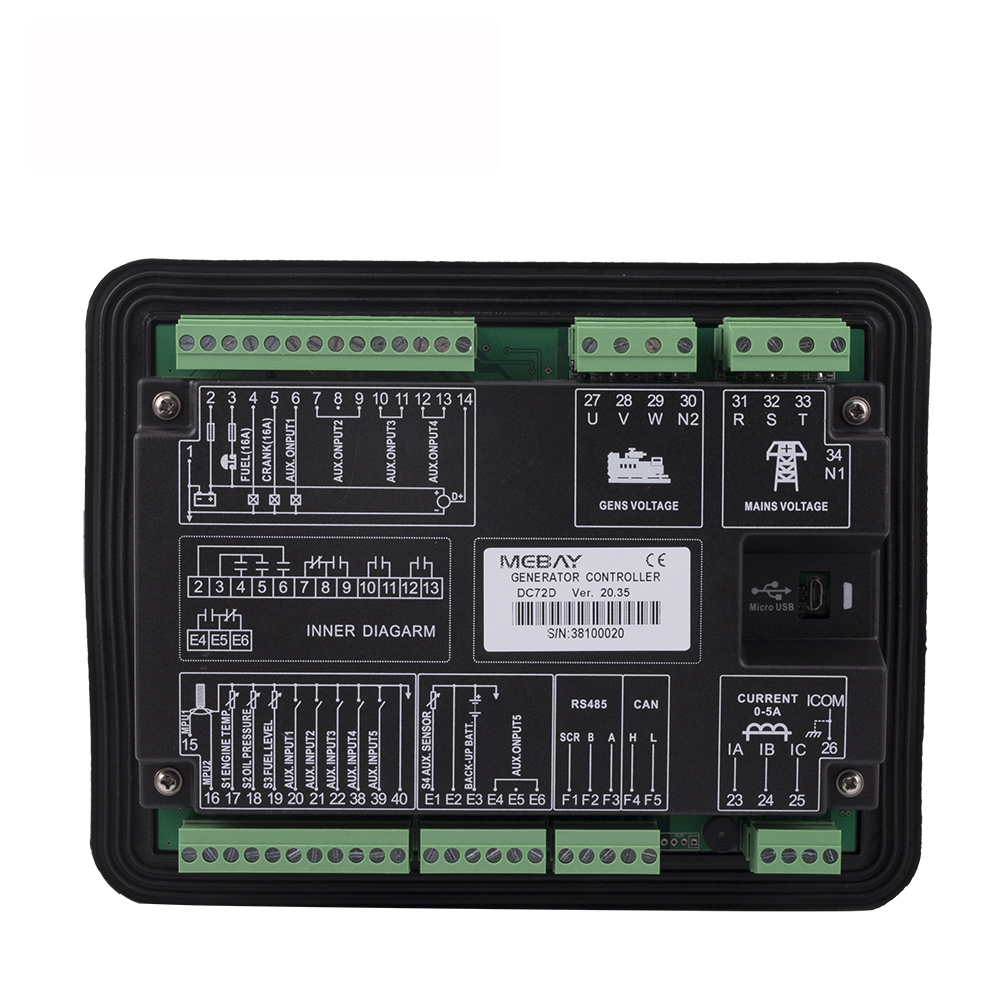

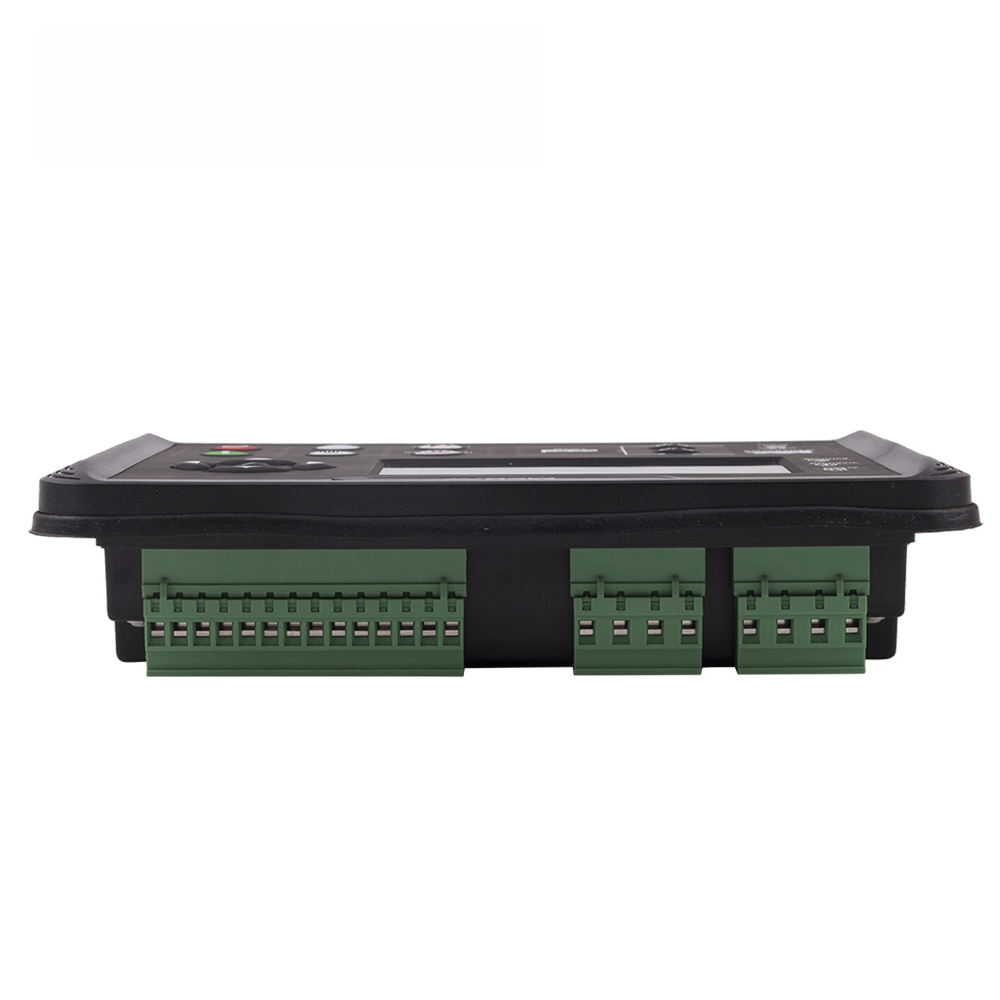

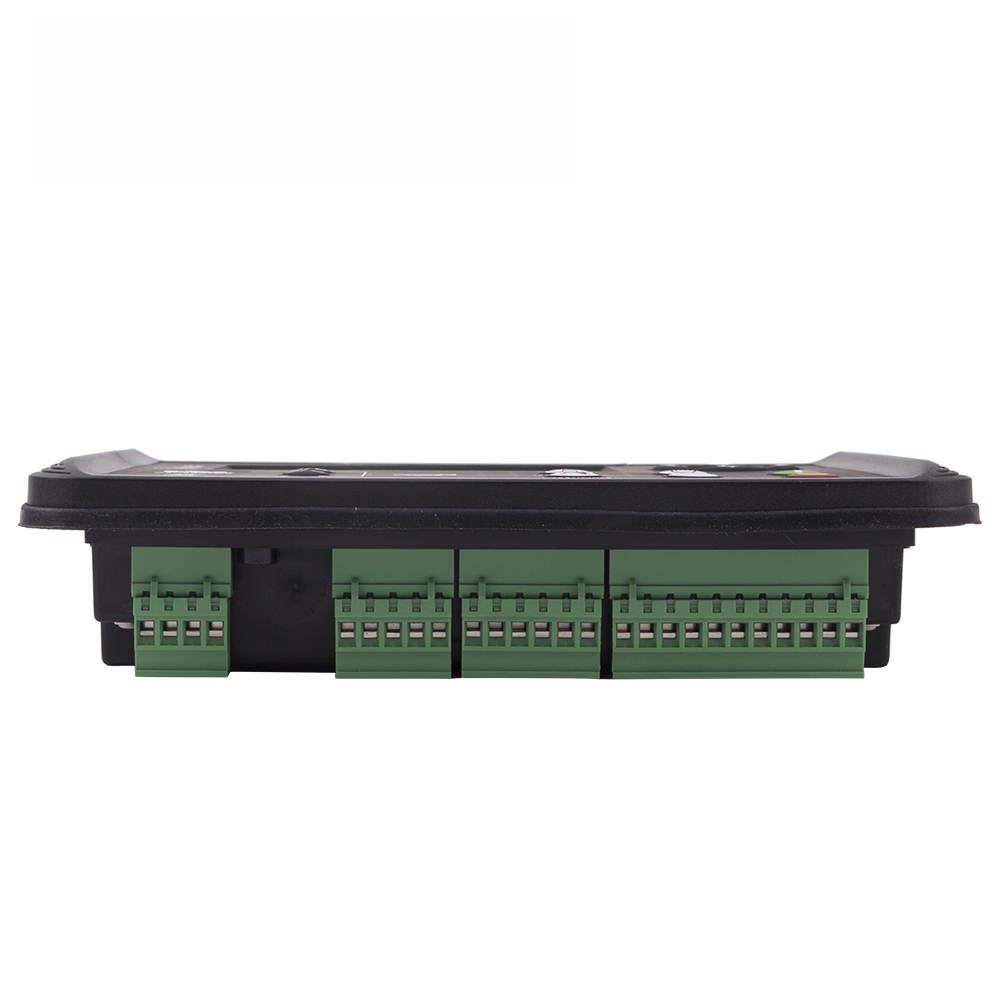

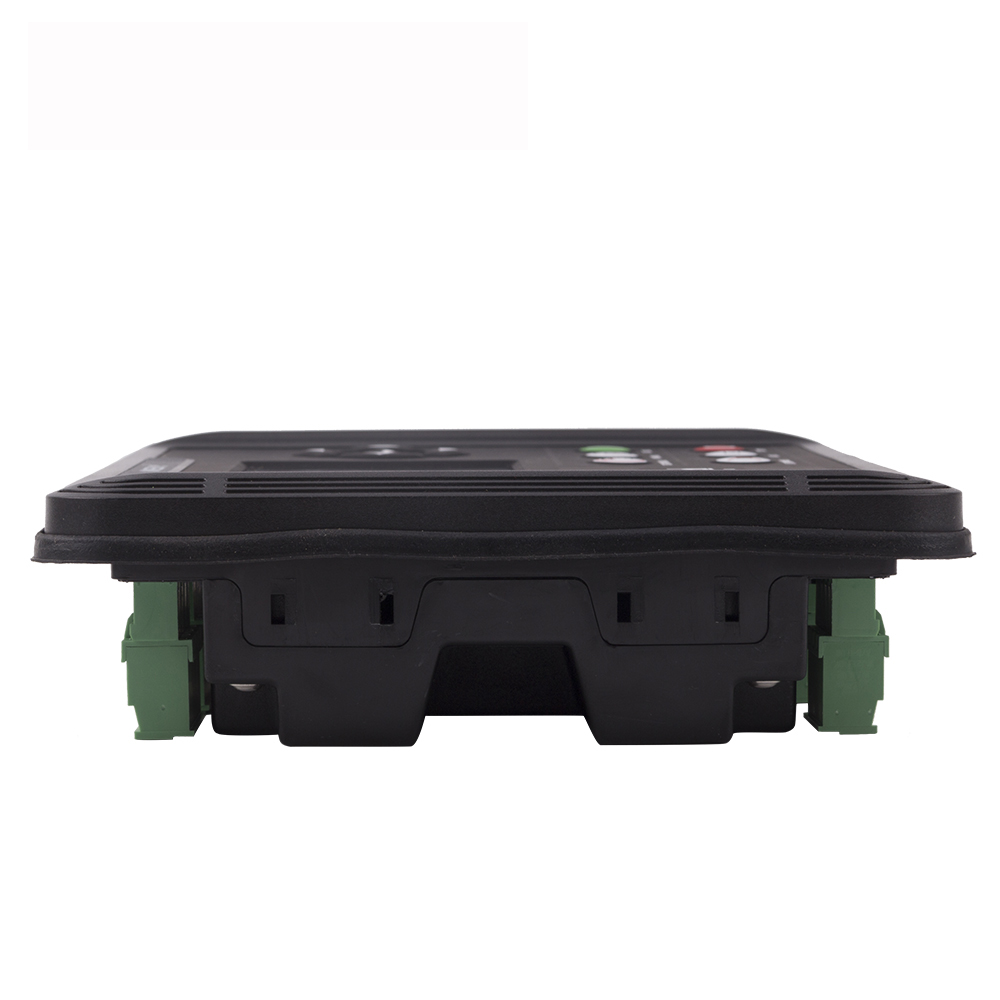

Remote Monitor ATS AMF Generator controller DC72D

Product ID : DC72D

Product Attributes :

Product Description

Options	Parameters
Working voltage	DC8V----36V Continuous
Power consumption	Standby：24V：MAX 1W
Power consumption	Working：24V：MAX 5W
AC Voltage Input	1P2W 30VAC-276VAC(ph-N)
	2P3W 30VAC-276VAC(ph-N)
	3P4W 30VAC-276VAC(ph-N)
Rotate speed sensor Frequency	200-10000Hz
MAX Accumulating Time	99999.9Hours（Min Store time:6min）
Fuel Relay Output	16Amp DC+VE Supply voltage
Start Relay Output	16Amp DC+VE Supply voltage
Programmable Relay output 1	5Amp DC+VE Supply voltage
Programmable Relay output 2	5AMP Non-contact-Normal open--Normal close output
Programmable Relay output 3	5AMP Non-contact Normal Open output
Programmable Relay output 4	5AMP Non-contact normal open output
Programmable Relay output 5	5AMP Non-contact-Normal open--Normal close output
Excitation output	Max 1AMP DC+VE supply voltage
Switch value input	Available if connecting with Battery -
Working condition	-20-65℃
Storage condition	-40-85℃
Protection Level	IP54：when waterproof rubber gasket is added between controller and its panel
Overall dimension	210mm160mm50mm
Panel cutout	186mm*142mm
Weight	0.9Kg
