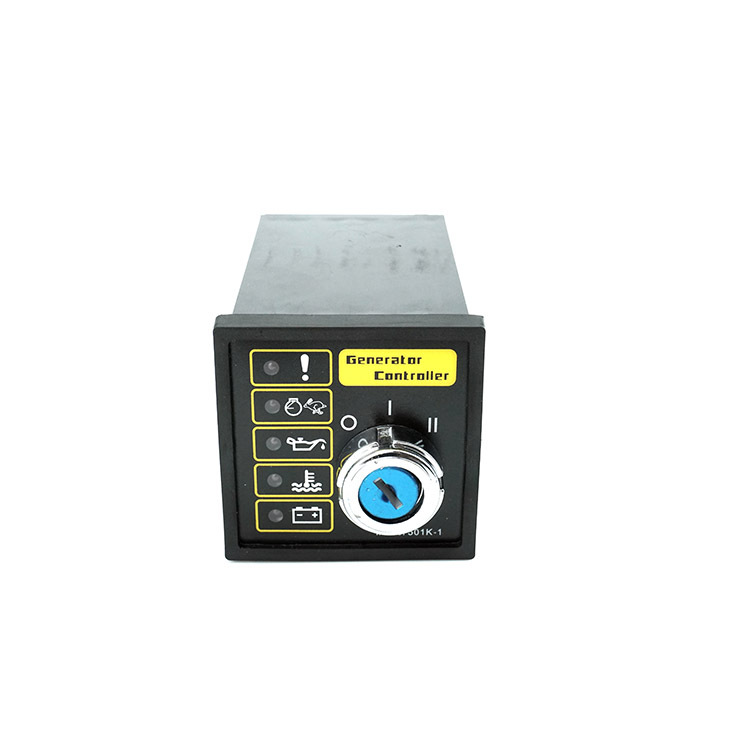

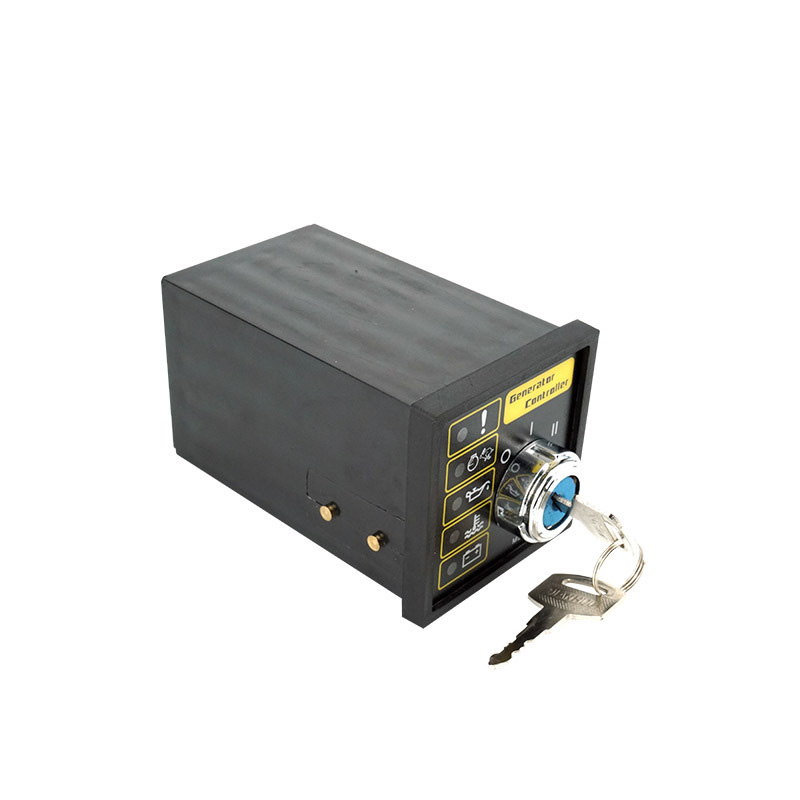

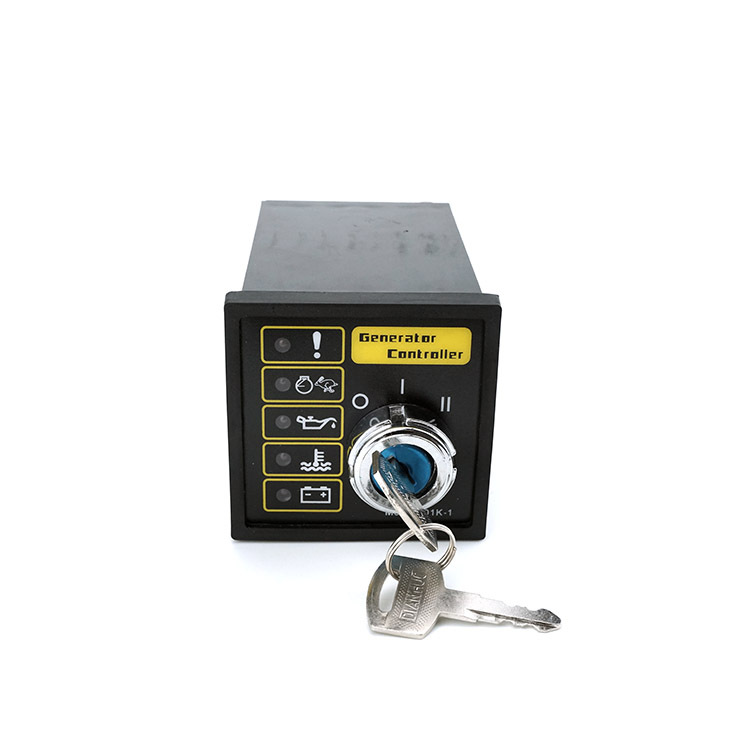

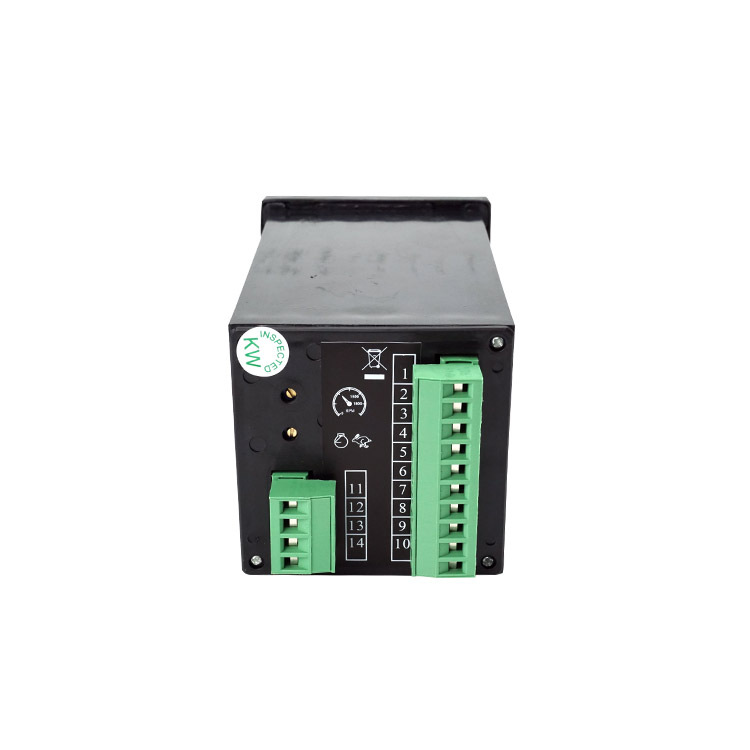

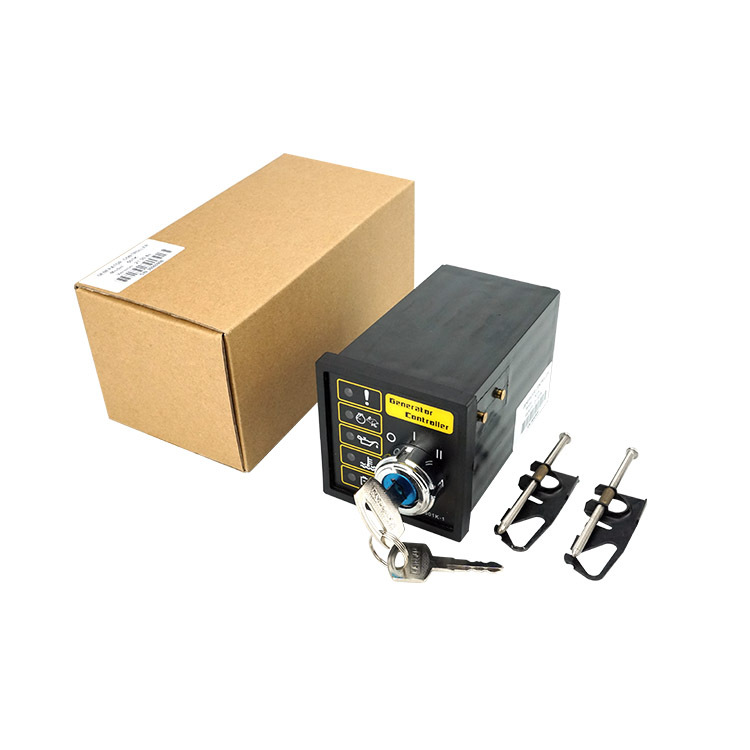

Generator controller DSE501K auto start genset control DSE501K-1

Power Supply:  9 to 33 Vdc Continuous

Cranking Dropouts:   Able to survive voltage dips during cranking. Without

the need for internal batteries.

Alternator Input Range :  15 - 305 V AC RMS

Alternator Input Frequency:   50 - 60 Hz at rated engine speed

Magnetic Input Range :  0.5 V to +/- 80 V

Magnetic Input Frequency: 2300Hz to 6000 Hz at rated engine speed

Start Relay Output: 16 Amp DC at supply voltage

Run Relay Output: 16 Amp DC at supply voltage

Alarm Output:   1 Amp DC at supply voltage

Operating Temperature Range: -30 to +70°C
