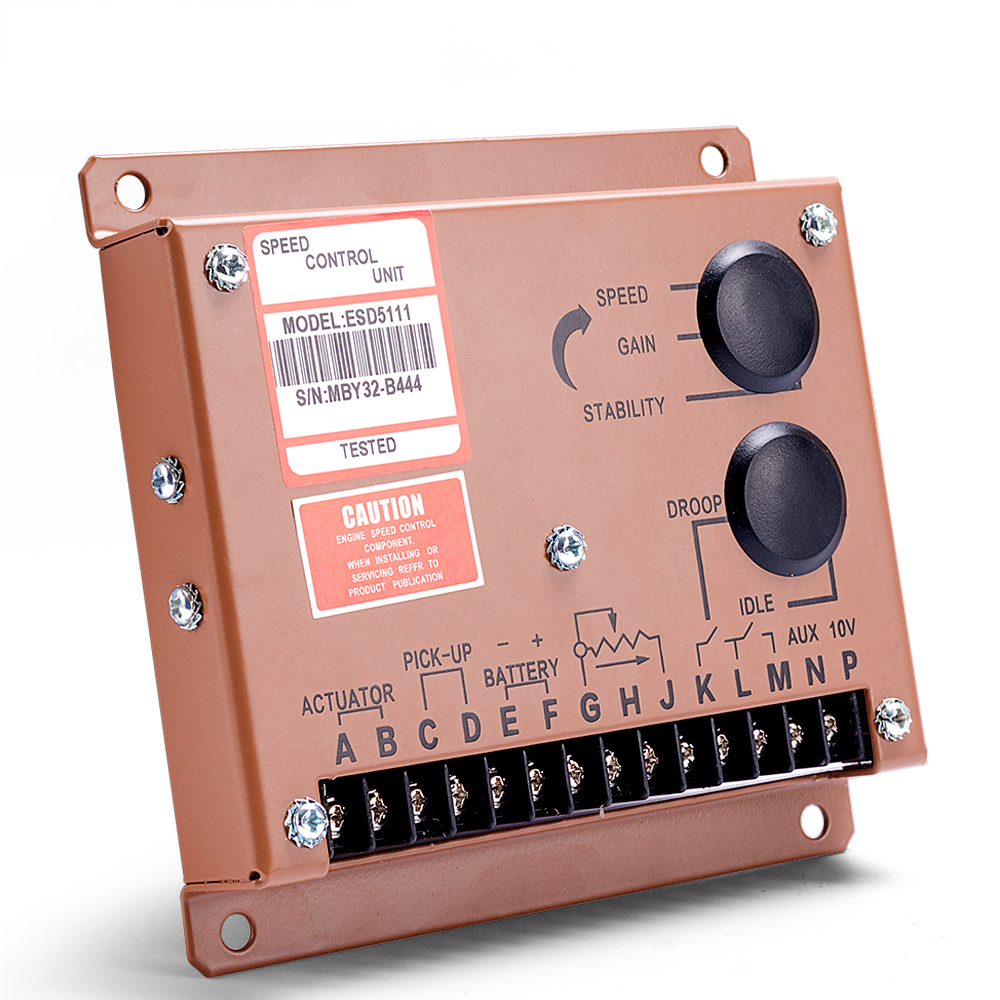

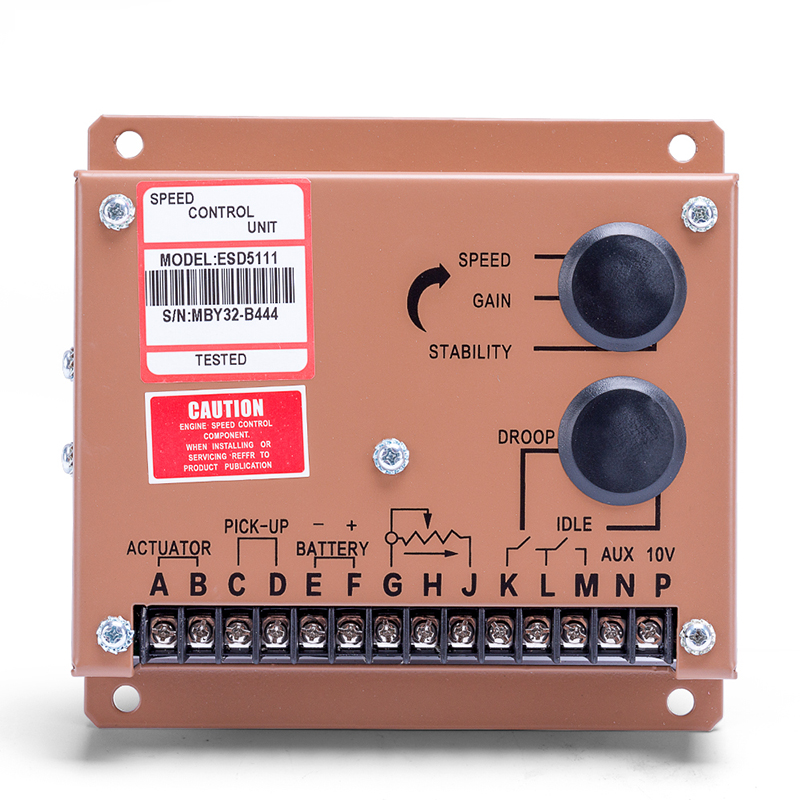

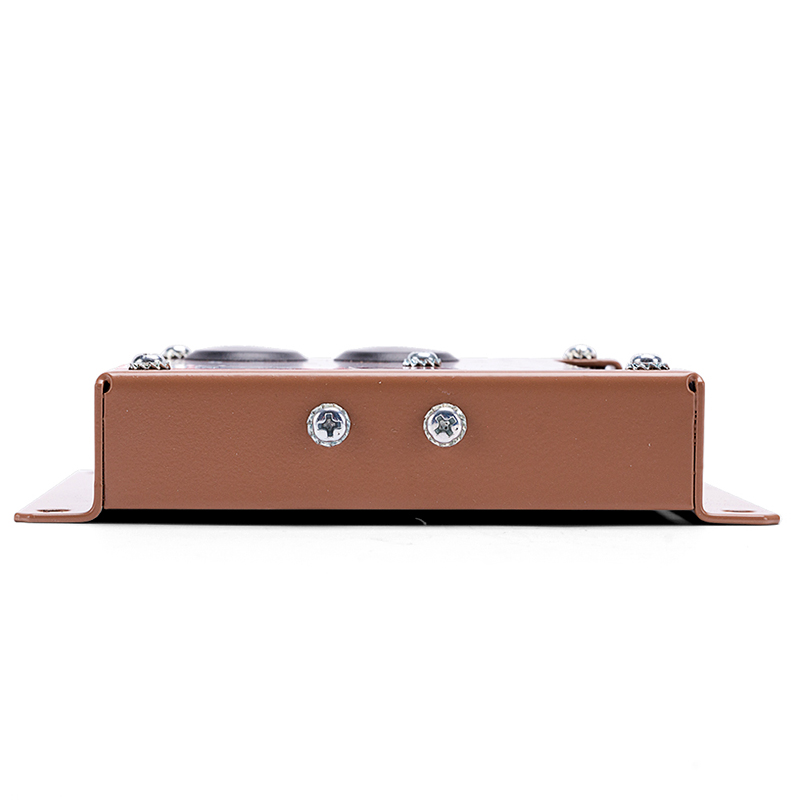

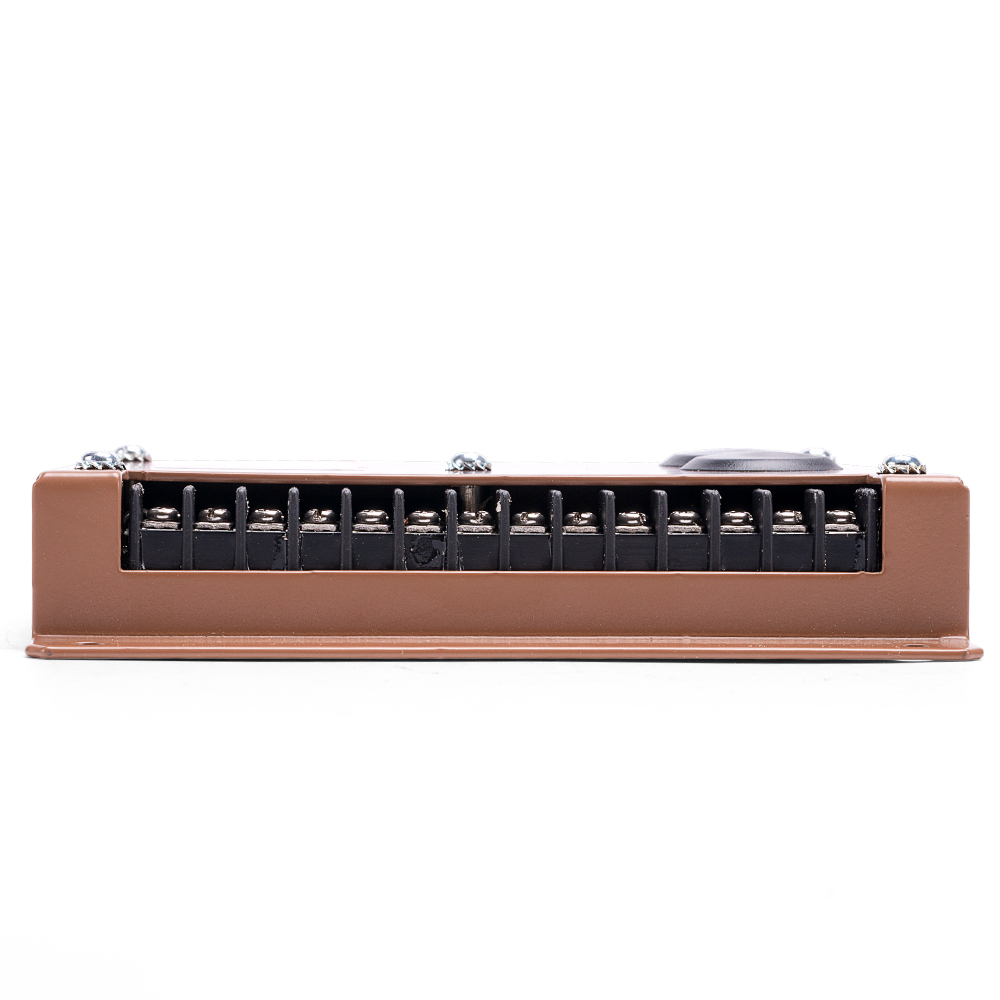

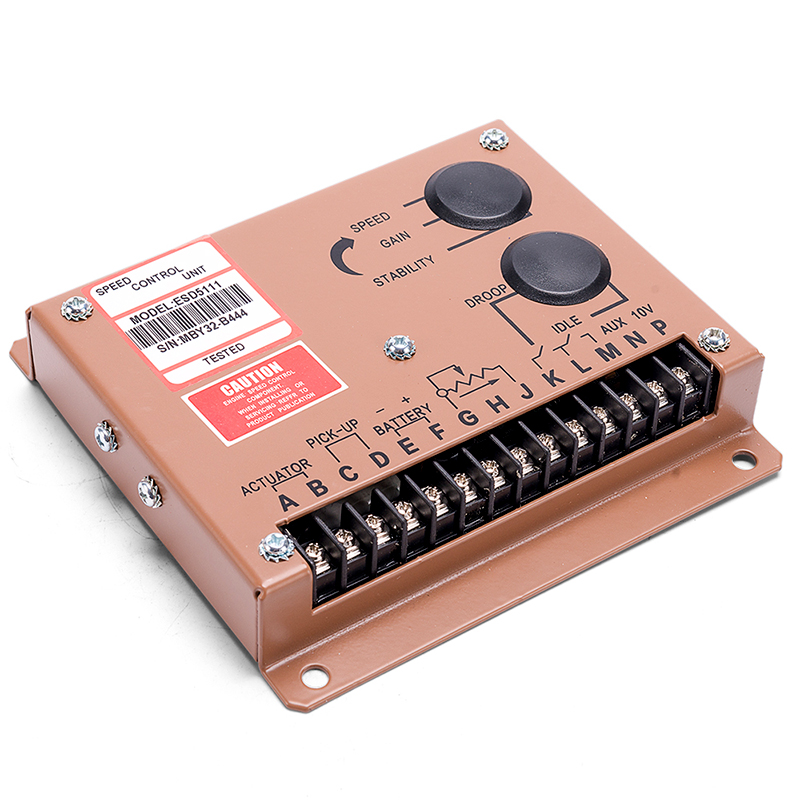

ESD5111 Engine Speed Control Governor Unit Controller for Diesel Generator
ESD5111 built on the basis of the start of the new fuel control and smooth slow start to control the process, these new features can be resolved in the engine to start the process by the rapid filling of black smoke caused by the phenomenon has greatly improved the engine's life .
| Specification | |
|
Isochronous Operation/Steady State Stability |
± 0.25% or better |
|
Speed Range/Governor |
1K-7.5K Hz continuous |
|
Speed Drift with Temperature |
± 1% Maximun |
|
IDLE Adjustment |
160 ± 20Hz ~ 60% of set speed |
|
Droop adjustment Min.(K-L Jumpered) |
15Hz. ± 6Hz. per 1.0 A change |
|
Droop adjustment Max.(K-L Jumpered) |
400Hz. ± 75Hz. per 1.0 A change |
|
Droop Adj. Max. (K-L Jumpered) |
875Hz., ± 75Hz. per 1.0 A change |
|
Droop Adj. Min. (K-L Jumpered) |
15Hz., ± 6Hz. per 1.0 A change |
|
Speed Trim Range |
± 200Hz. |
|
Remote Variable Speed Range |
500 -7.5Hz. or any part thereof |
|
Terminal Sensitivity |
J: 100Hz., ± 15Hz/Volt @ 5.0 K Impedance |
|
L: 735Hz., ± 60Hz/Volt @ 65 K Impedance |
|
|
N: 148Hz., ± 10Hz/Volt @ 1Meg. Impedance |
|
|
P: 10V DC Supply @ 20ma Max. |
|
|
Speed Switch Adjustment Range |
1000-10000Hz. |
|
Environmental |
|
|
Ambient Operating Temperature Range |
-40°c to +85°c |
|
Relative Humidity |
up to 95% |
|
Storage Temperature |
-55°c ~ 90°c |
|
Shock |
20-100HZ 500mm/Sec. |
|
Input Power |
|
|
Supply |
12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected) |
|
Polarity |
Negative Ground(Case Isolated) |
|
Power Consumption |
50mA continuous plus actuator current |
|
Actuator Current Range @ 25°c-(Inductive Load) |
Min. 2.5 Amps, Max. 10 Amps continuous |
|
Speed Sensor Signal |
0.5-120 V RMS |
|
Speed Switch Relay Contacts(N.O.and N.C.) |
10Amp |
