Genset Engine Generator Actuator ADC120 ADC120S-12

ADC120 Gasoline Generator Actuator:

· Rotary output linear torque proportional servo

· Small, low cost, low friction model

· 1.0 lb-ft of torque, 25° rotation, < 32 msec. response

· Suitable for rotary or small inline fuel pumps of small carburetors

· Ideal for fuel systems on engines up to 150 HP

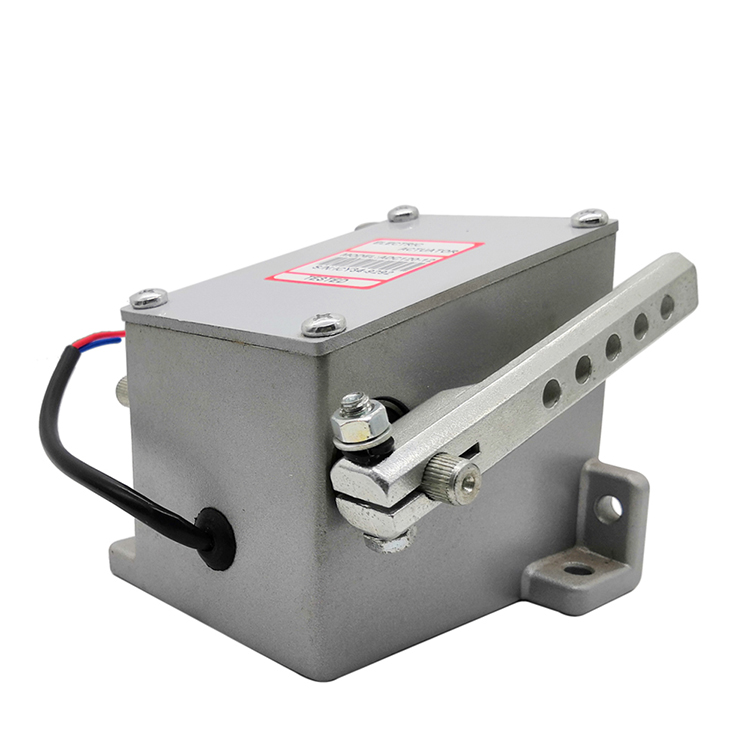

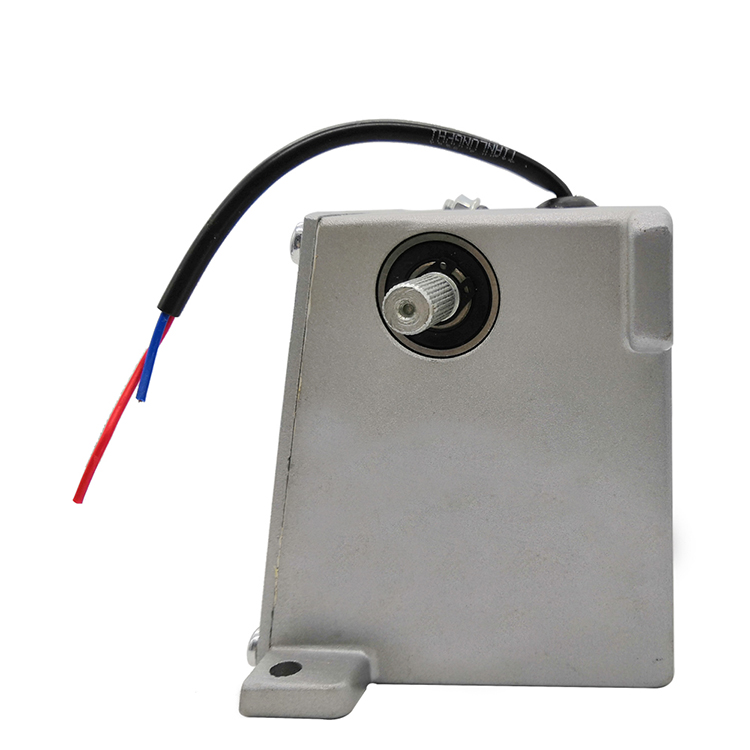

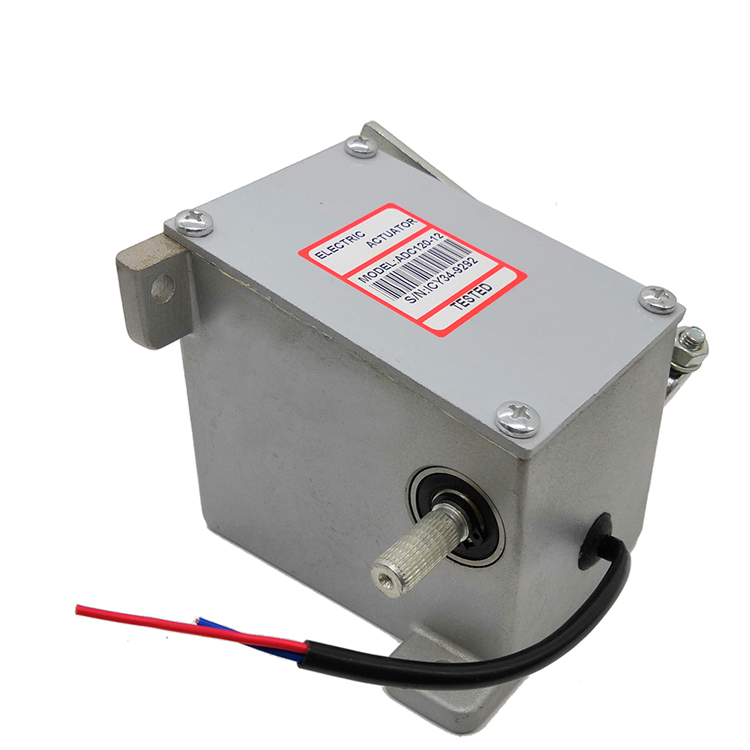

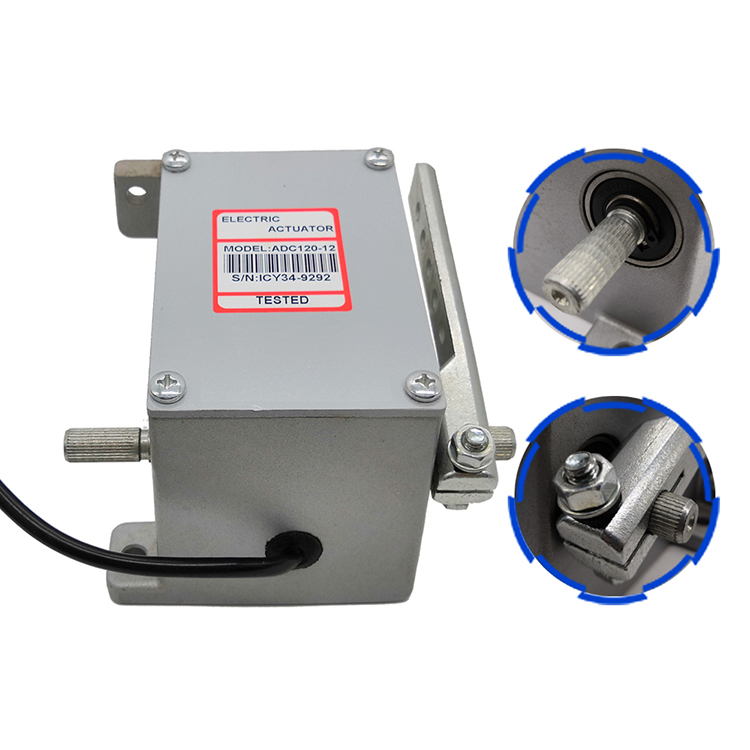

The Gasoline Generator Electric Actuator ADC120-12 is a rotary output, liner torque, proportional servo.

This electromechanical actuator is typically used as an engine fuel control positioning device. An internal

spring provides fail safe operation by forcing the actuator to the fuel shut off position when the actuator is

de-energized. This design combines fast operation, multi-voltage usage, wider rotation angles, and proven reliability.

The actuator can operate directly from 12, 24, or 32 volt battery supplies.

The speed of operation of the actuator is typically faster  than competitive units, thus it provides more stable and rapid response to transient conditions.

Applications include most block pumps, with or without mechanical governors, distributor type pumps, and medium sized carbureted engines.

The 25 degrees of rotation expands the application to a wider variety of engines.

The GAC Electric Actuator ADC120-12 is an electromagnetic servo device which can be intergrated into a closed loop control system.

An engine control system can be described as follows. An electrical signal is generated by a magnetic speed sensor which is proportional

to engine speed setting are not equal, a change in current from the speed control unit to the actuator will change the magnetic force in the actuator.

The rotation of the Generator Actuator ADC120-12 shaft will then adjust the fuel to the engine and cause the engine speed to be equal to

the preset engine setting. Shaft rotation is proportional to the amount of actuator current and counterbalanced by the internal spring.

Since the design has no sliding parts and is totally sealed, outstanding reliability results. A single compression spring is used to improve reliability.
