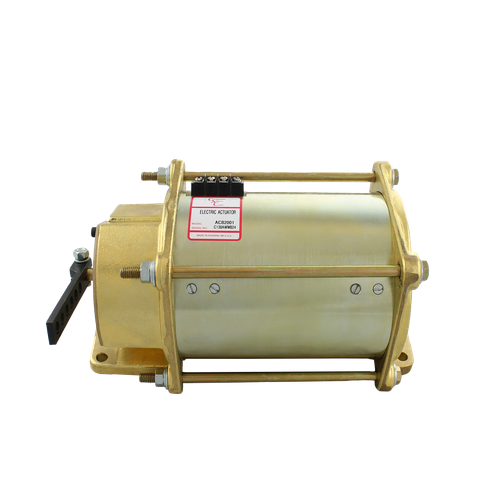

ACB2001 External actuator

ACB2001 actuator is a rotary output, 24V, linear torque proportional electric servo designed for mechanical

actuation of fuel system control levers requiring torques in the 5 ft-lb range. Energized by ESD5300 Series speed control units,

the actuator is capable of 35 degrees of rotation with torques as high as 12 ft-lb. Internal springs provide fail safe operation

by forcing the actuator to the fuel shut off position when the actuator is de-energized. Since the design has no sliding parts,

and is totally sealed, its reliability is outstanding and no maintenance necessary. Engine applications include large block pumps,

dual medium carburetors, and some large size carburetors.
