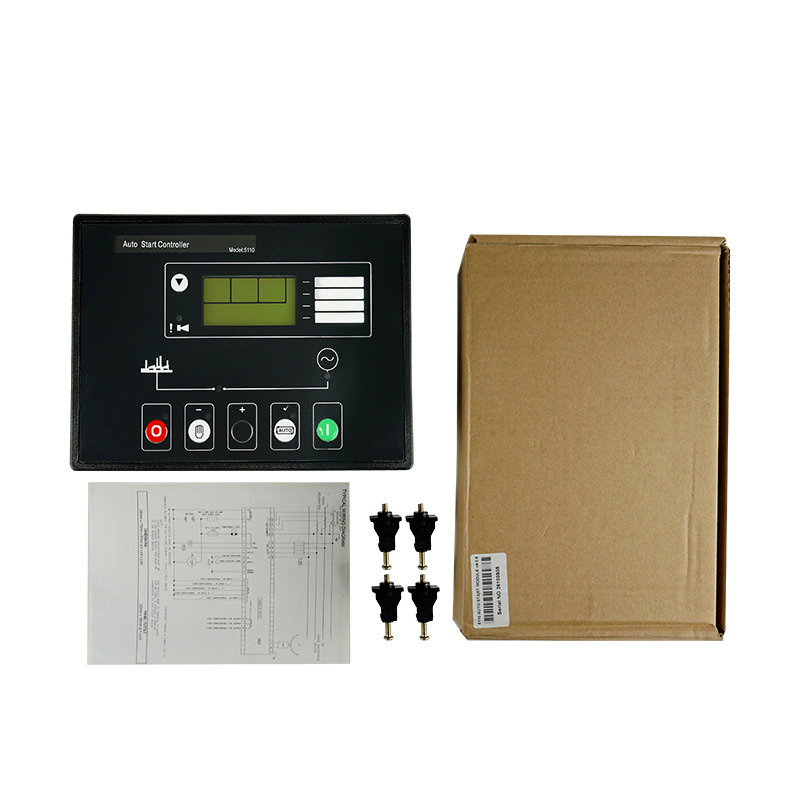

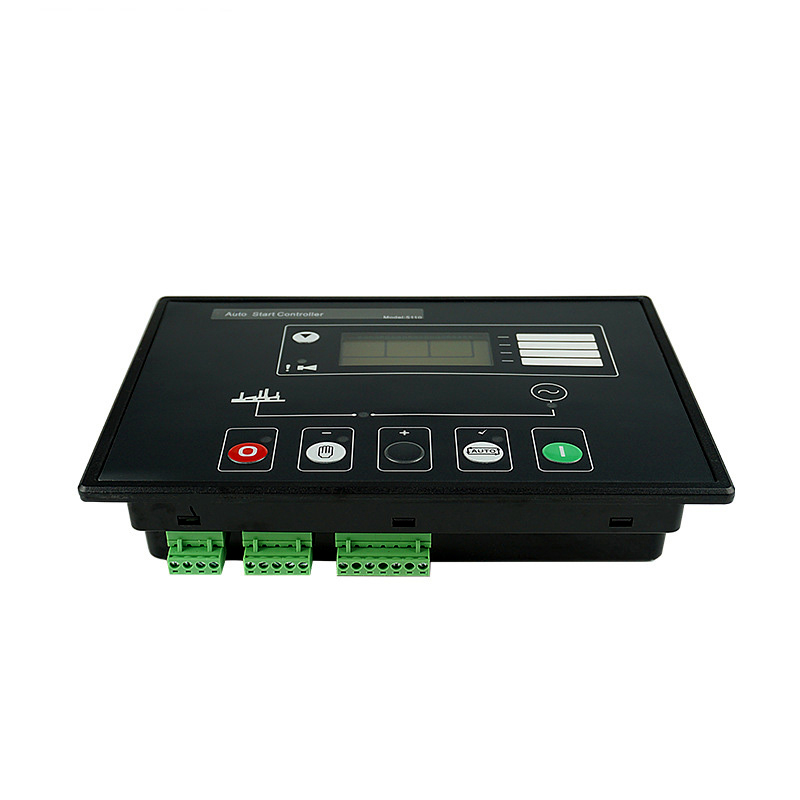

Diesel Generator Engine Controller Module Auto Start Control Unit DSE5110
The DSE Generator Automatic Controller 5110 is an Automatic Start Control Module designed to automatically start and stop diesel and gas generating sets that include non electronic engines. The module also provides excellent engine monitoring and protection features.

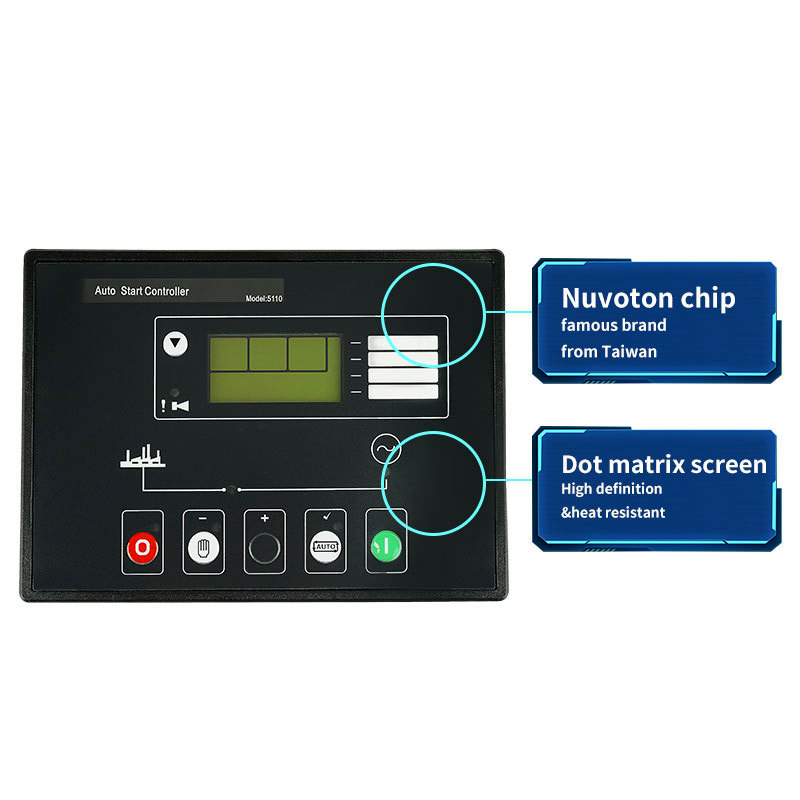

DSE DSE5110 Generator Controller has the ability to monitor under speed, over speed, charge failure, emergency stop, low oil pressure, high engine temperature, fail to start, fail to stop and loss of the speed sensing signal. The module displays fault conditions on the LCD display and via the LED indicators on the front.
OPERATION for 5110 DSE Controller

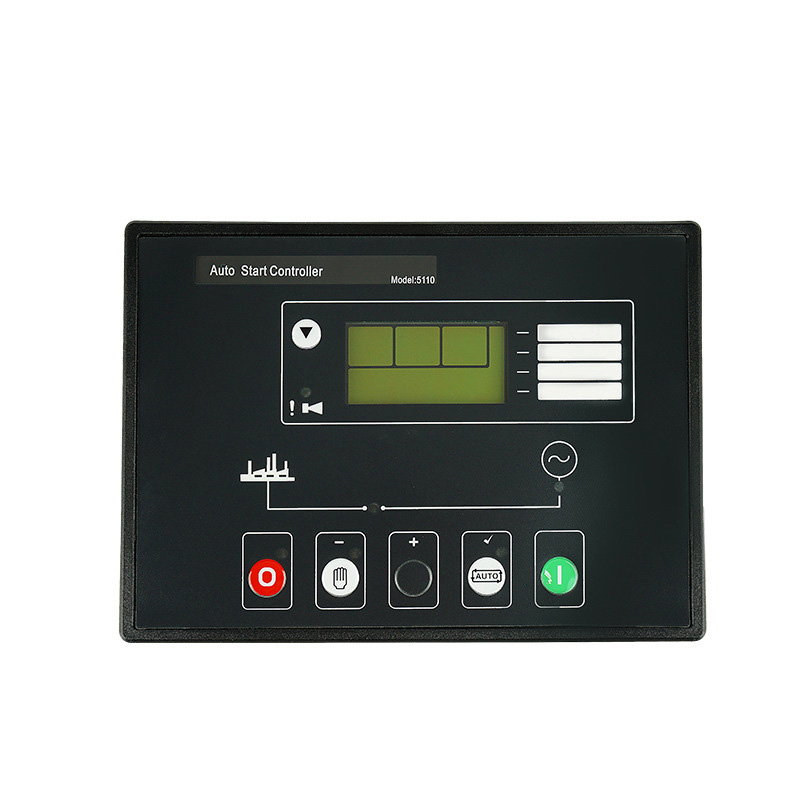

The DSE5110 is operated using the front STOP, AUTO and MANUAL push buttons. An additional
push button on both modules allows the user to scroll through the LCD instrumentation display.
CONFIGURATION of DSE 5110 Generator Controller
The module DSE5110 can be configured using the front panel buttons or the DSE810 interface and PC software.

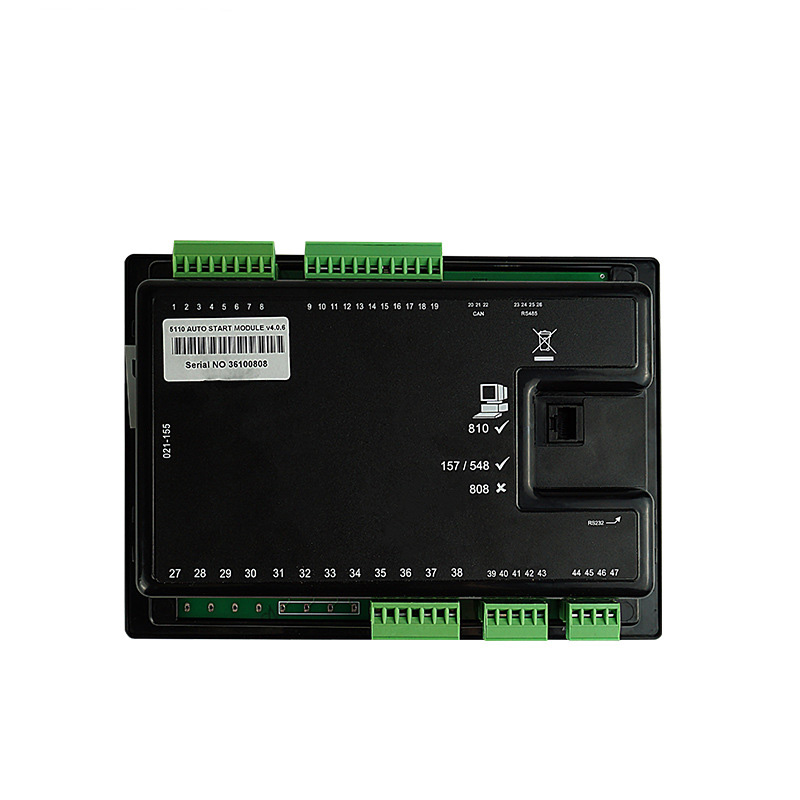

INPUTS & OUTPUTS of DSE5110 Generator Automatic Controller
Analogue inputs are provided for oil pressure and engine temperature. These connect to conventional engine mounted
resistive sender units to provide accurate monitoring and protection facilities. The modules can also be configured to interface
with digital switch type inputs for low oil pressure and high engine temperature shutdowns.
