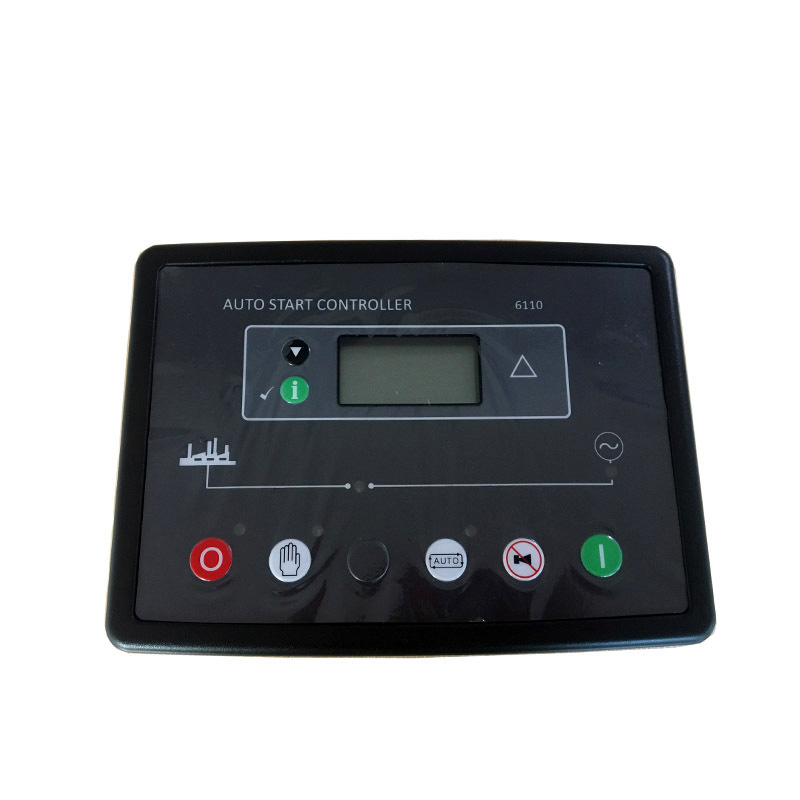

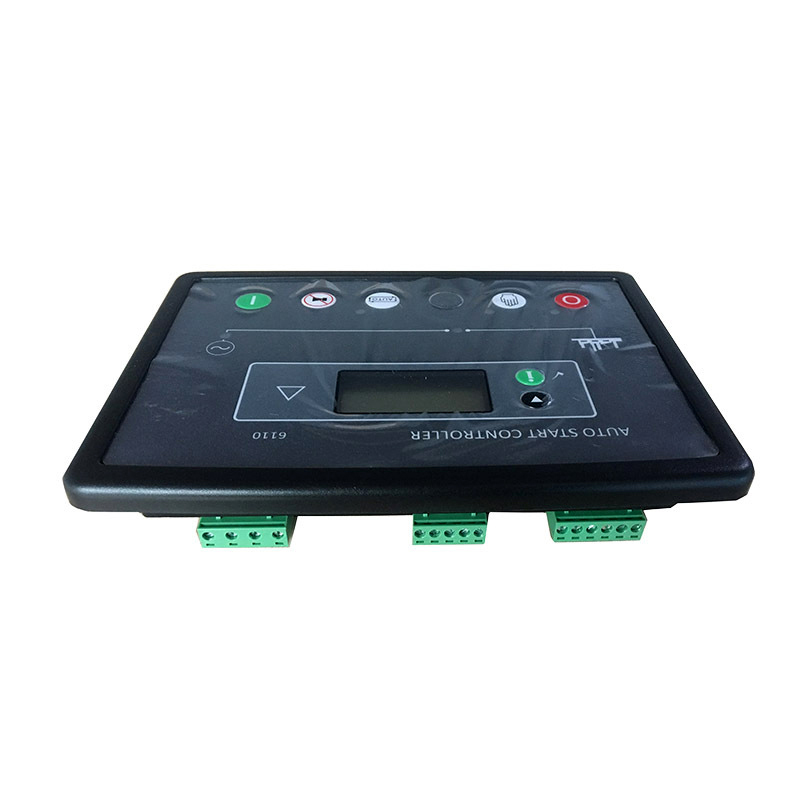

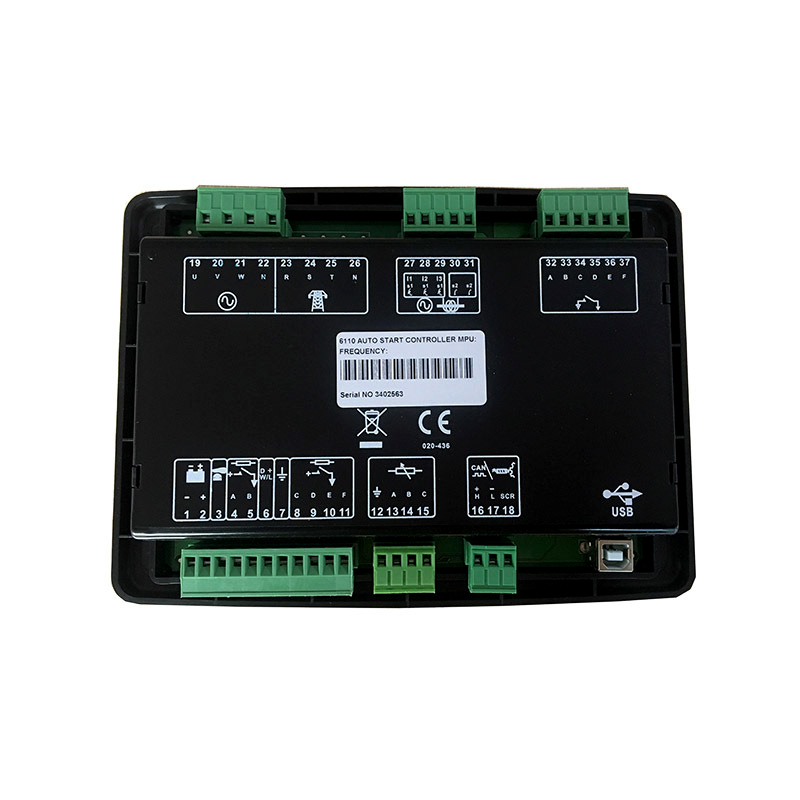

Generator Engine Auto Start Control Module DSE6110

Generator Engine Auto Start Control Module DSE6110

Product ID : DSE6110

Product Tags : Auto Genset Generator Controller Electronic Auto Start Generator Set Generator ATS Controller Generator Spare Parts Generator Speed Controller Generator parts speed control unit Intelligent Generator Controller Automatic Remote Monitor ATS AMF Generator controller Smart Genset Controller electronic engine governor control

Product Attributes :

Generator Engine Auto Start Control Module DSE6110 can completely replace with it. It has the function of auto mains (utility) failure control modules monitor incoming mains (utility) supplies and instruct gen-sets to start when mains (utility) power is not available. All modules include a range of intelligent control, monitoring and protection features for standard and electronic engine gen-set applications.

Product Description

Specification
CONTINUOUS VOLTAGE RATING	8 V to 35 V Continuous
FREQUENCY RANGE	3.5 Hz to 75 Hz
MAXIMUM OPERATING CURRENT	100 mA at 12 V, 105 mA at 24 V
OVERALL DIMENSIONS	216 mm x 158 mm x 43 mm
PANEL CUT-OUT	184 mm x 137 mm
OPERATING TEMPERATURE RANGE	-40 °C to +70 °C
CRANKING DROPOUTS	Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.
