Generator Controller HGM180HC Auto Control Module For Diesel Generator
Product ID : HGM180HC
Product Tags :
Auto Genset Generator ControllerElectronic Auto Start Generator SetGenerator ATS ControllerGenerator Spare PartsGenerator Speed ControllerGenerator parts speed control unitIntelligent Generator Controller AutomaticRemote Monitor ATS AMF Generator controllerSmart Genset Controllerelectronic engine governor control
Product Attributes :

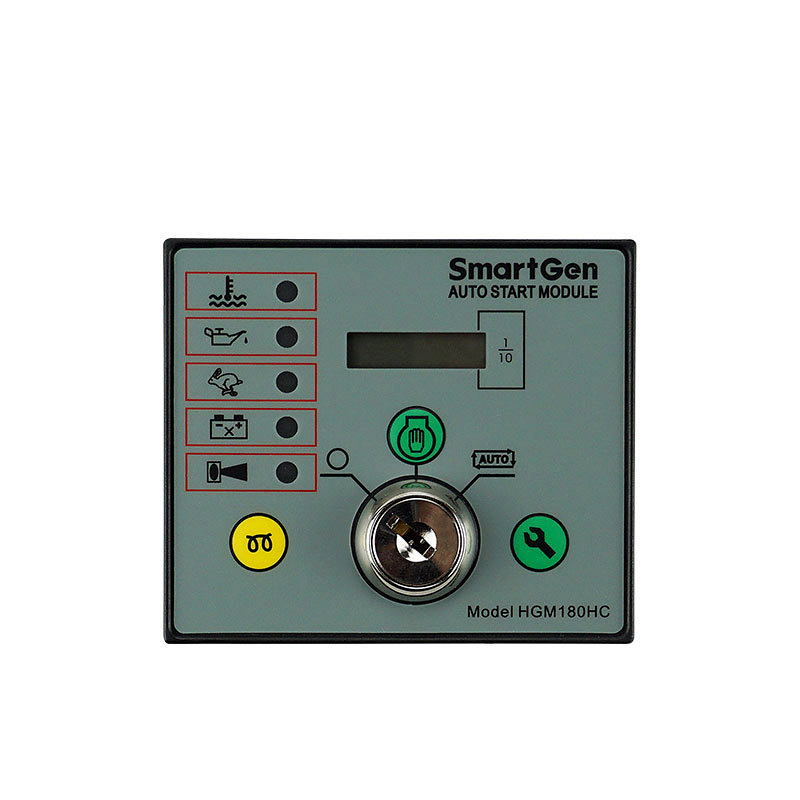

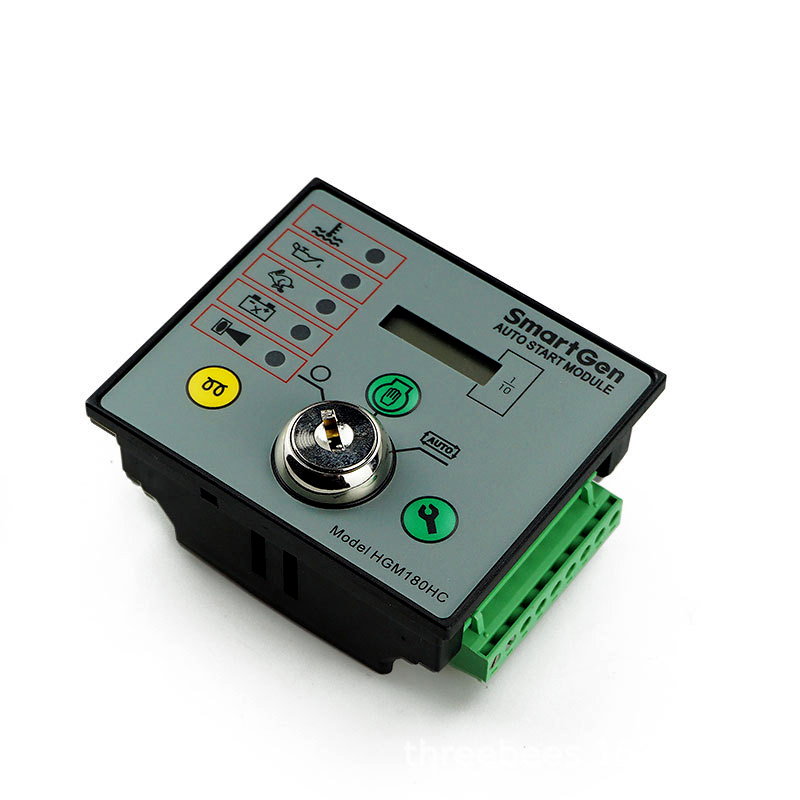

HGM180HC auto start module is an engine control module designed to control the engine via pushbuttons on the front panel or remote start signal. The module has 3 working modes to choose. When detecting faults, such as low oil pressure, high water/cylinder temperature, auxiliary alarm, over speed, it will disconnect fuel relay and energize to stop. LED annunciator displays the faults, which can offer real and effective alarm information.
Product Description
DC Supply: 8 to 35 V Continuous.
Alternator Input Range: 15 - 306VAC(+20%) RMS
Alternator Input Frequency: 50 - 60 Hz at rated engine speed.
Over speed: nominal frequency +14% (+24% Overshoot)

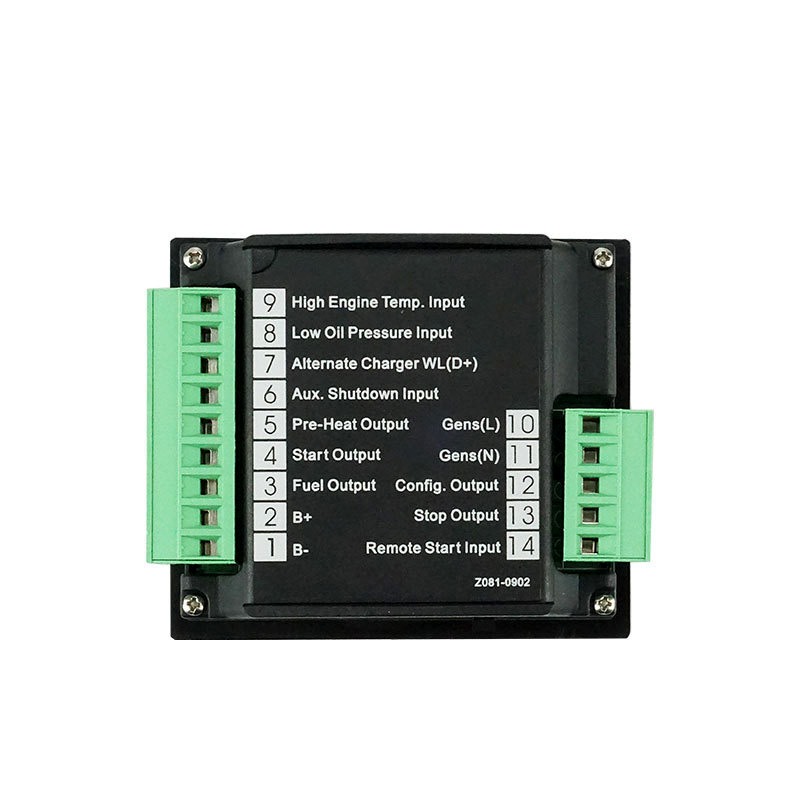

Start Output: Solid State 1A positive B+ terminal
Fuel Output: Solid State 1A positive B+ terminal
