Battery Charger BAC1203VL
Battery Charger BAC1203VL Battery Charger BAC1203VL Battery Charger BAC1203VL Battery Charger BAC1203VL

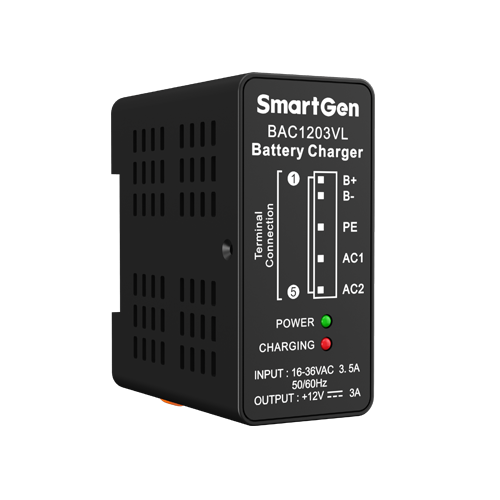

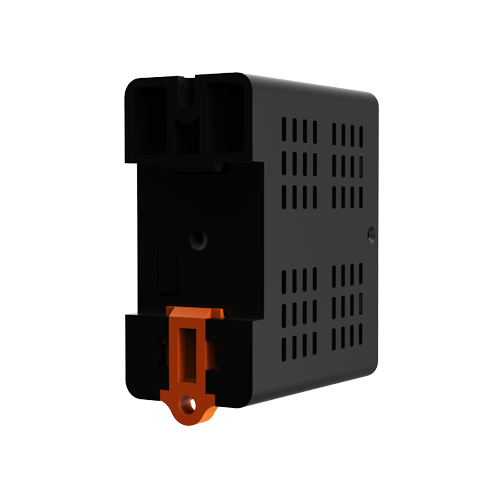

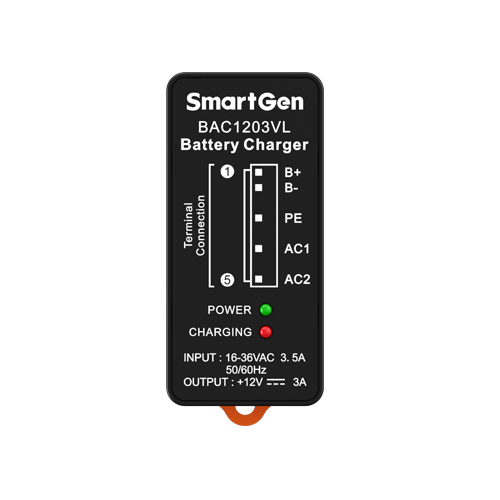

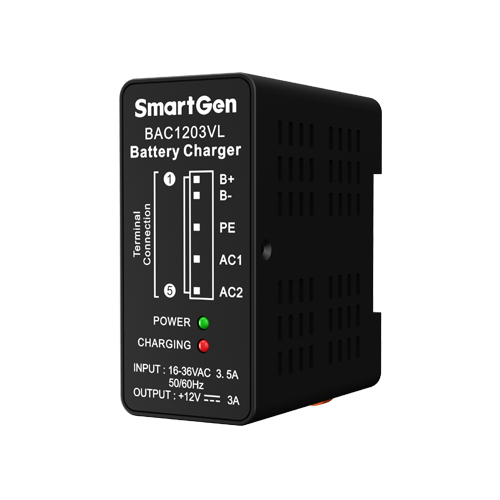

Battery Charger BAC1203VL

Product ID : BAC1203VL
Product Attributes :

Product Code:6070027

Power Supply:AC(16~36)V

Case Dimensions:80*35.5*65(mm)

Operating Temp. :(-30~+70)℃

Weight:0.15kg

Product Description

Fit with up-to-date power supply device, battery charger BAC1203VL is specially designed for meeting the charging characteristics of lead-acid batteries and can be used for long-term supplement (float) charging of 12V battery pack.

PERFORMANCE AND CHARACTERISTICS

  1. Applies switch power supply structure, wide range and low input voltage, small size, light weight, high efficiency rate;

  2. Applies automatic two-stage charging process (first constant current, then constant voltage) according to storage battery charging characteristics to prevent overcharging and significantly prolong battery lifetime;

  3. Short-circuit protection function;

  4. Suitable for 12V storage battery with maximum charging current 3A;

  5. LED display: Power indication and charging indication;
