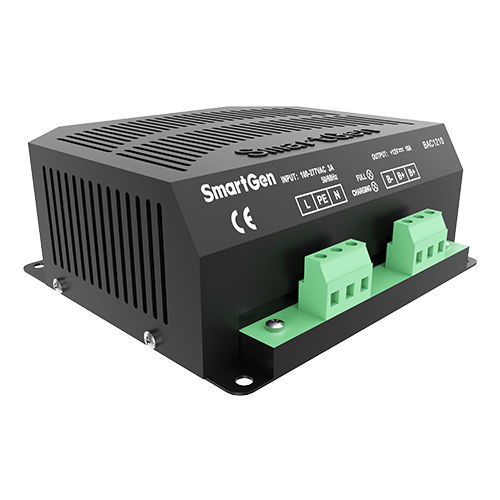

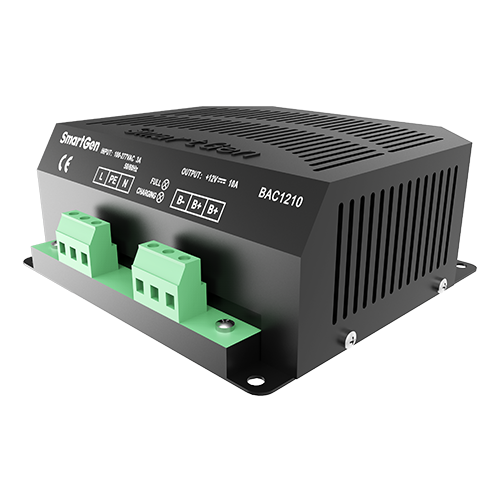

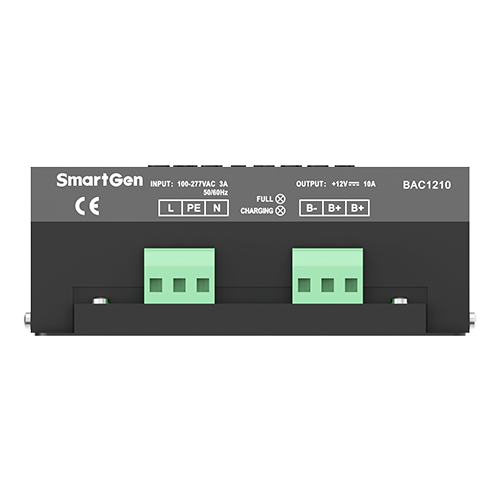

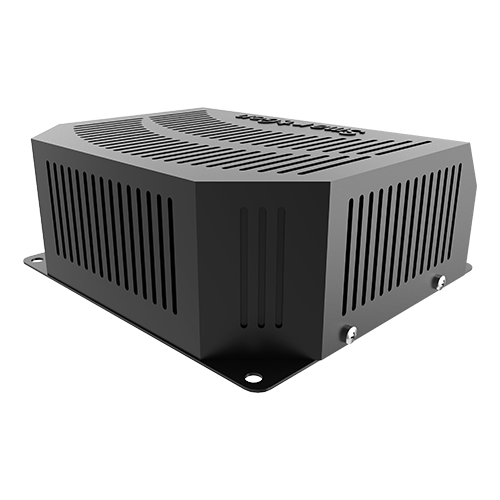

Smartgen BAC1210 Floating Charge, Two-stage Charge, 12V10A
Smartgen BAC1210 Floating Charge, Two-stage Charge, 12V10A Smartgen BAC1210 Floating Charge, Two-stage Charge, 12V10A Smartgen BAC1210 Floating Charge, Two-stage Charge, 12V10A Smartgen BAC1210 Floating Charge, Two-stage Charge, 12V10A

Smartgen BAC1210 Floating Charge, Two-stage Charge, 12V10A

Product ID : BAC1210
Product Attributes :

Product Code:6070006

Power Supply:(100~240)V

Case Dimensions:145.5*131*55(mm)

Operating Temp. :(-30~+55)℃

Weight:0.8kg

Product Description

Fit with up-to-date power supply device, float charger BAC1210 is specially designed for meet the charging characteristics of the lead-acid engine starter batteries and can be used for long-term float charging of 12V lead-acid batteries.

PERFORMANCE AND CHARACTERISTICS

  1. Switch power supply structure, wide input alternating voltage range, small size, light weight, high efficiency rate;

  2. Automatic two-stage charging process (first constant current, then constant voltage) carried out according to storage battery charging characteristics to prevent overcharging and significantly prolong battery lifetime;

  3. Built-in current protective circuit, which can give effective protection when output over current, short-circuit or reverse connection occurs. Regard power lamp or charge lamp fast blinking as alarm.

  4. Suitable for 12V storage battery and the rated current is 10A;

  5. LED display: Power indication (Green light) and charging indication (Red light).
