Generator Automatic Battery Charger Smartgen Battery Charger 3A 5A 6A 10A 12V 24V Bac1203 Bac2408 Bac1210 Bac2410 Bacm2420

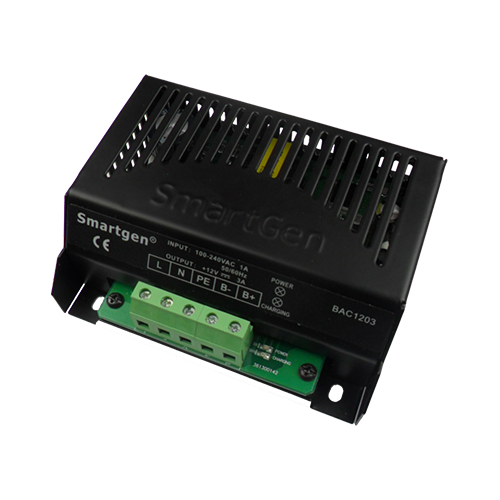

Fit with up-to-date power supply device, float charger BAC1203 is specially designed for meet the charging characteristics of the lead-acid engine starter batteries and can be used for long-term float charging of 12V lead-acid batteries.

PERFORMANCE AND CHARACTERISTICS

1. Switch power supply structure, wide input alternating voltage range, small size, light weight, high efficiency rate;

2. Automatic two-stage charging process (first constant current, then constant voltage) carried out according to storage battery charging characteristics to prevent overcharging and significantly prolong battery lifetime;

3. Built-in current protective circuit for short-circuit protection and reverse connection protection. If failure occurs, power indicator and charging indicator will flash rapidly.

4. Suitable for 12V storage battery and the rated current is 3A;

5. LED display: Power indication (Green light) and charging indication (Red light);
