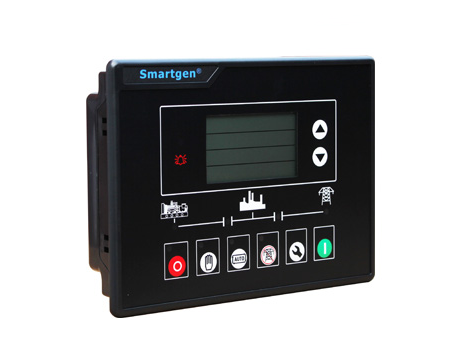

Smartgen HGM6020K Genset Controller

Smartgen HGM6020K Genset Controller

HGM6000K series generator  controller integrating digital, intelligent and network techniques is used for  automatic control system of diesel generator. It can carry out functions   including automatic start/stop, data measure and alarming. The controller uses  LCD display, character and icon display interface with operation easy and  reliable.

HGM6000K series generator controller uses micro-processing  technique which can carry out precision measure, constant value adjustment,  timing and threshold setting and etc. of multi-parameters. It can be widely  used in all types of generator automatic control system for compact structure,  advanced circuits, simple connections and high reliability.

Performance and  characteristics

HGM6000K controller has two  types:

HGM6010K: ASM (Automatic  Start Module)

HGM6020K: AMF (Automatic  Mains Failure Module)

Its main features are as follows:

Using microprocessor as a core, graphics LCD with big screen and  backlight, display between Chinese, English, and Spanish, key touch for  operation;

Have a RS485 port, can used for communicate with PC;

Configurable single phase 2  wires or 2 phase 3 wires or 3 phases 4 wires AC system input;

Control protection: Automatic  start/stop, load transfer and alarming of generator;

Parameters setting: Allow  user to modify setting and store them inside internal FLASH memory, the  parameters can not be lost even with power down. All parameters can be set from  the front panel, or be set by PC used SG72;

Three channel analog  inputs, may joint with Resistive-type temperature/ pressure/ fuel level  sensors, Several temperature and pressure sensors can be used directly (ie.  VDO, DATCON, CUMMINS), also may select “user defined” sensor via entering 8  point curves;

Display of generator  cumulated electric energy;

Security password-protected programming levels;

Several crank success conditions are optional;

Built-in speed/frequency  detecting units can accurately judge the states such as crank success and over  speed;

Power supply range is wide,  accommodating to different starting battery voltage environments;

All parameters use digital  modulation, abandoning analog modulation using conventional electronic   potentiometer, reliability and stability are increased;

Built-in watch dog can  never be dead halt, ensuring smooth program execution;

Modular configuration  design, inserted type connection terminals, flush type installation, compact  structure, easy installation.
