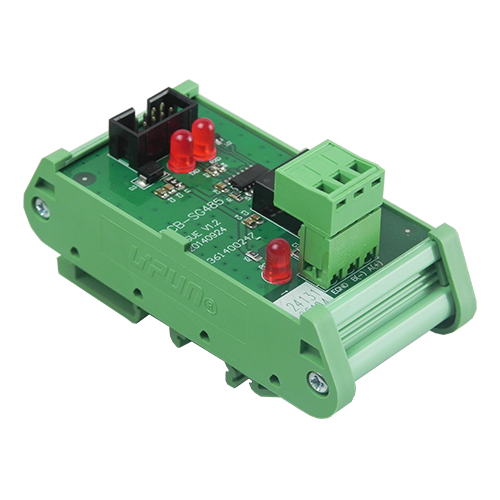

SG485 Communication Interface Conversion Module
Product ID : SG485
Product Tags :
Auto Genset Generator ControllerElectronic Auto Start Generator SetGenerator ATS ControllerGenerator Spare PartsGenerator Speed ControllerGenerator parts speed control unitIntelligent Generator Controller AutomaticRemote Monitor ATS AMF Generator controllerSmart Genset Controllerelectronic engine governor control
Product Attributes :
Power Supply：LINK interface
Case Dimensions：91*42*61(L*W*H)(mm)
Operating Temp. ：(-40～+70)℃
Weight：0.06kg
Product Description
SG485 Communication Interface Conversion Module can convert the communication interface from LINK (Smartgen special) to isolated standard RS485. The module integrated DC/DC power isolation and RS485 interface chip which enable it to connect to RS-485 network.
PRODUCT FEATURE
-
RS485 network can connect to maximum 32 nodes;
-
Isolation Voltage: reach up to DC1000V;
-
Power supplied by LINK interface and there is no need to connect to external power supply.
-
Baud rate ≤ 9600bps；
-
Humidity：20%~90%(No Condensation)；
-
Working Temperature：-40℃~+70℃；
-
Case Dimension：91*42*61mm(L*W*H)；
-
Weight：0.06kg.
