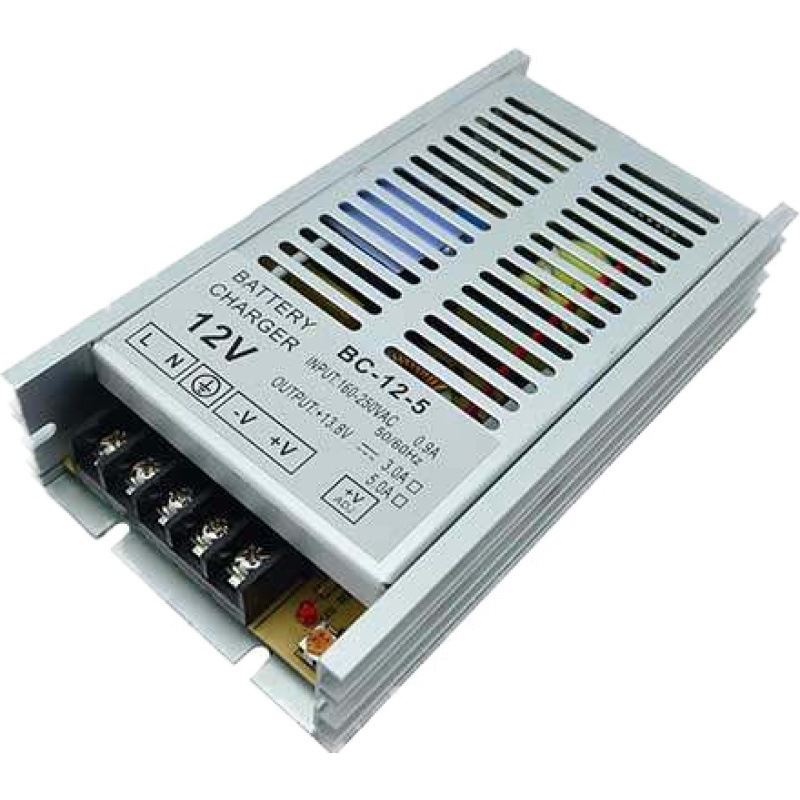

Diesel Generator Set Lead-Acid Battery Charger Battery BC125 12V / 24V 5A
Diesel Generator Set Lead-Acid Battery Charger Battery BC125 12V / 24V 5A

Diesel Generator Set Lead-Acid Battery Charger Battery BC125 12V / 24V 5A

Product ID : BC125
Product Attributes :

Technical characteristics

Input voltage: 160 ~ 250V AC

Frequency: 50 / 60HZ

Maximum charging power: BC245 5A

Floating charge voltage: BC245 26V ~ 29V adjustable

12V factory setting 13.8V

24V factory setting 27.6V

Product Description

BC125 is a switch-type lead-acid battery automatic floating charger.

It adopts constant current and constant voltage charging methods.

It uses constant current charging at the initial stage of charging. It strictly

controls the charging current to keep the battery in the best state of charge. ,

So that the battery maintains a sufficient voltage value for a long time, and is

particularly suitable for charging the battery of a backup generator set.



Functional characteristics

1. Can be used in humid environments with a temperature of -40 ℃ ~ + 50 ℃ and a relative humidity of 98% RH without condensation.

2. This allows the starter motor to be started while the mains is charging the battery.

3. It is suitable for charging lead-acid batteries, especially for charging fully sealed solid wide temperature batteries.

4. Constant current fast charge: when the voltage of the charged battery is lower than the set value (12V battery pack ∠12V, 24V power

When the battery pack is 24V), the charger quickly charges the battery with the maximum constant current.

5. Current limit: when the charged battery is nearly full (12V battery pack ≥12V, 24V battery pack ≥24V),

The charging current is automatically limited (characteristics are shown in Figure 1 constant voltage section).

6. Trickle floating charge: When the voltage of the charged battery reaches the floating charge set value (about 12V battery pack

13.8V, 24V battery pack is about 27.6V), it will automatically switch to floating charge state, that is, about 0.1 ~ 0.2A

Current charging (specifically related to the power consumption of the powered equipment at the time).

7. Stop charging: When the voltage of the charged battery reaches the charging set value (14V at 12V, 28V at 24V), the charging output is automatically turned off.

8. Over current and short circuit protection: The product has perfect over current and short circuit protection.

Current characteristics, so when the battery capacity is large (the internal resistance is very small), the load is short-circuited or during the mains charging

When starting the motor at the same time (the starting current is very large at this time, it is close to the charger

Short circuit). At the same time, due to this characteristic of the product,

The charger does not need to be disconnected when the source is in use.

9. Automatically identify the voltage level of the charged battery pack, and then automatically charge according to the battery voltage level.

10. With aluminum casing, the heat dissipation effect is faster and better.



Precautions

1. The input voltage must not be greater than 265V AC (or 132V AC), otherwise the charger will be damaged.

2. The charger has a reverse connection protection function. If the positive and negative terminals of the battery

are reversed, the self-recovery fuse inside the charger is disconnected and disconnected from the battery. After 10 minutes,

the self-recovery fuse is restored to conduction and the charger Can continue to use.
