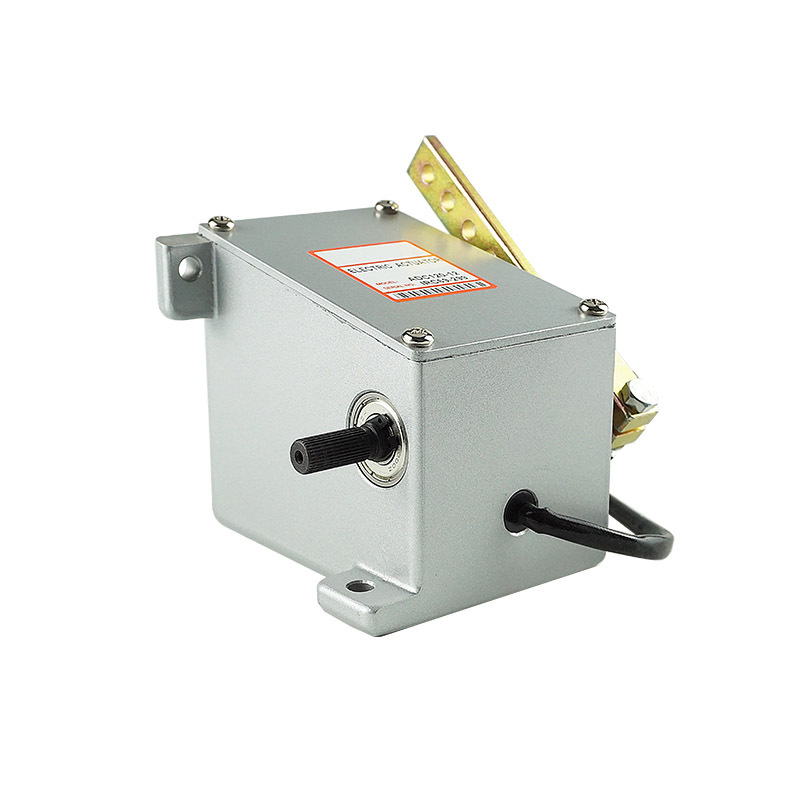

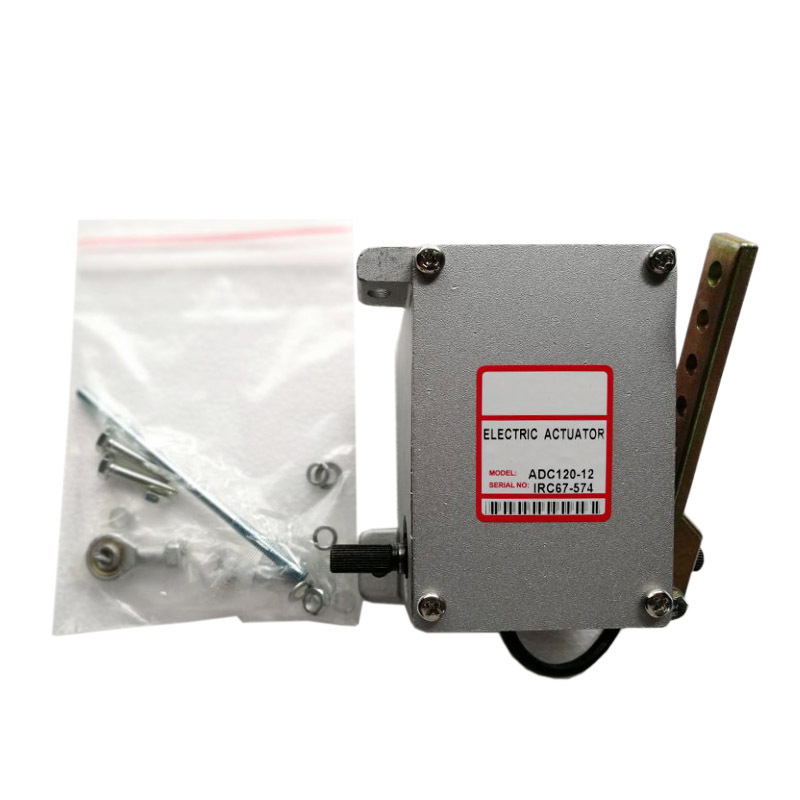

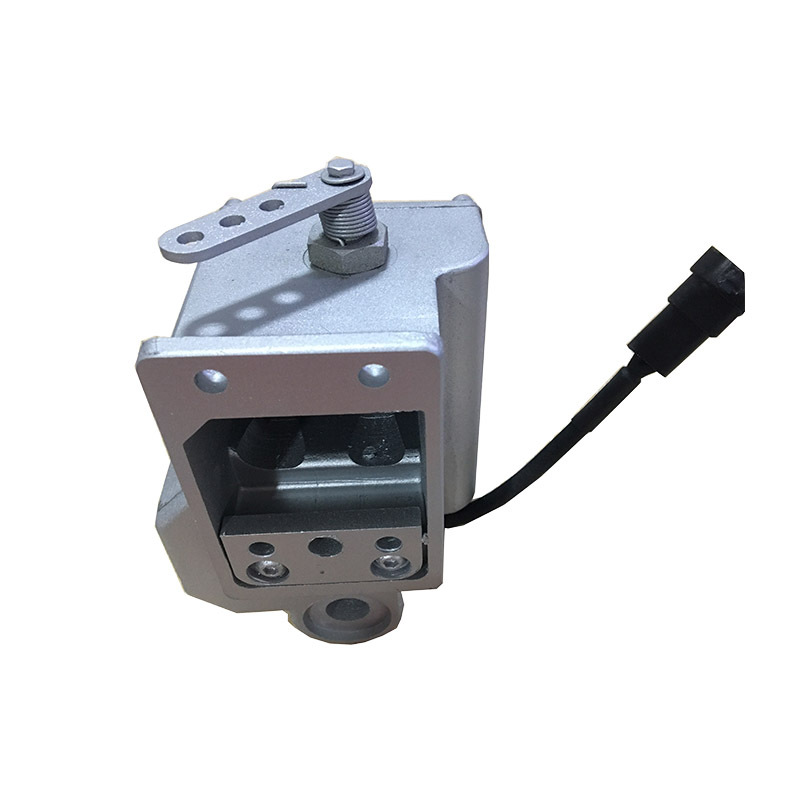

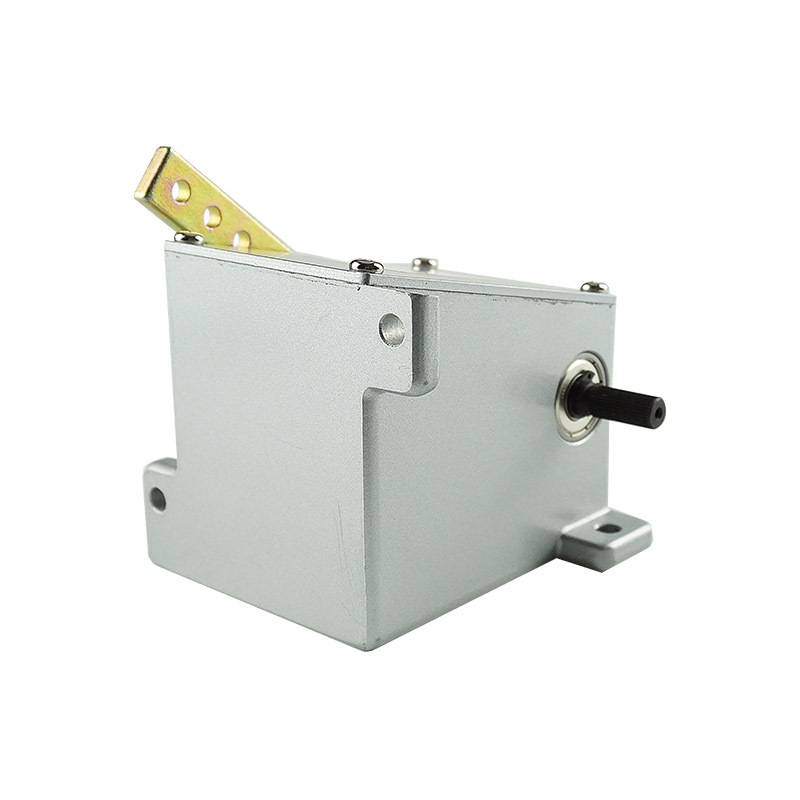

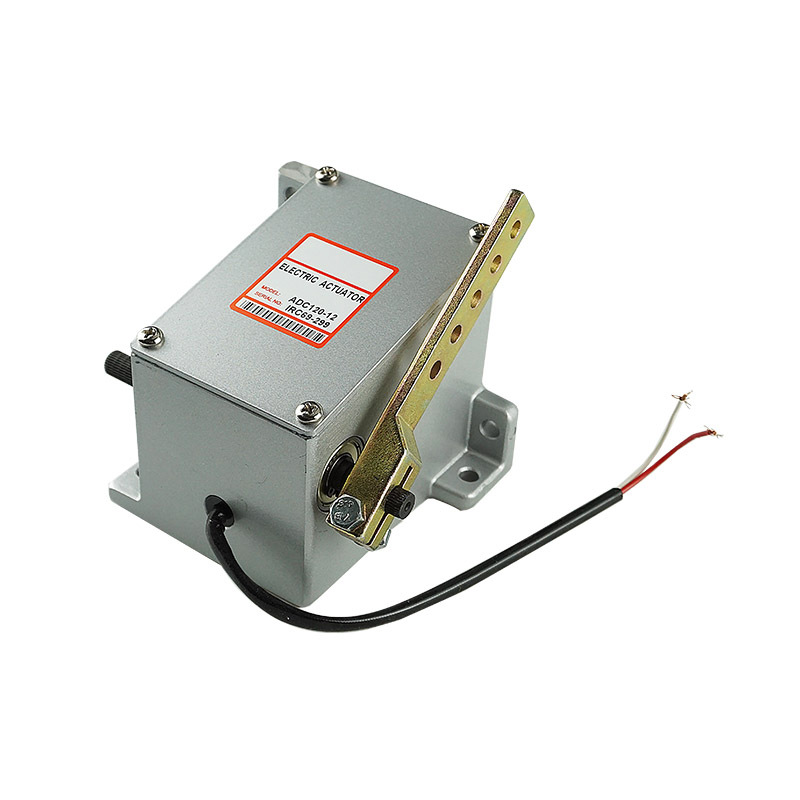

12V ADC120 Generator Actuator ADC120-12 ADC120-12V For Generator Engine electronic Parts
Product ID : ADC120-12
Product Tags :
AC Brushless GeneraAVR for generatorCircuit Diagram board StabilizerFully AutomaticGenerator AVRGenerator Universal AVRPower Voltage RegulatorVoltage Protectorautomatic voltage regulatorstep down voltage regulatorvoltage regulator
Product Description
| ADC120-12V 24V | ||
| Power Input | Operating Voltage | 12, 24, or 32 VDC |
| Normal operating Current | 2A at 12VDC | |
| Maximum Current-Continuously Rated | 6A at 12V DC, | |
| Performance | Available Torque | Max 1.0 ib-ft (1.4Nm) |
| Maximum operating shaft Augular travel ACB/ACE | 20± 1 degree CW/CCW | |
| Maximum operating shaft Augular travel ADB/ADC | 25± 1 degree CW/CCW | |
| Environmental | Temperature Range | -65 to + 200°F(-54° to +95 °C) |
| Relative Humidity | Up to 100% | |
| All Surface Finishes | Fungus Proof and Corrosion Resitant | |
| Reliability | Vibration | up to 20 G 100 50-500 Hz. |
| Testing | 100% Tested | |
| physical | Dimensions | See Diagram 1 |
| Weigh1 | 4.50 lbs.(2.05kg) | |
| Mounting | Any position, Vertical Preferred |
