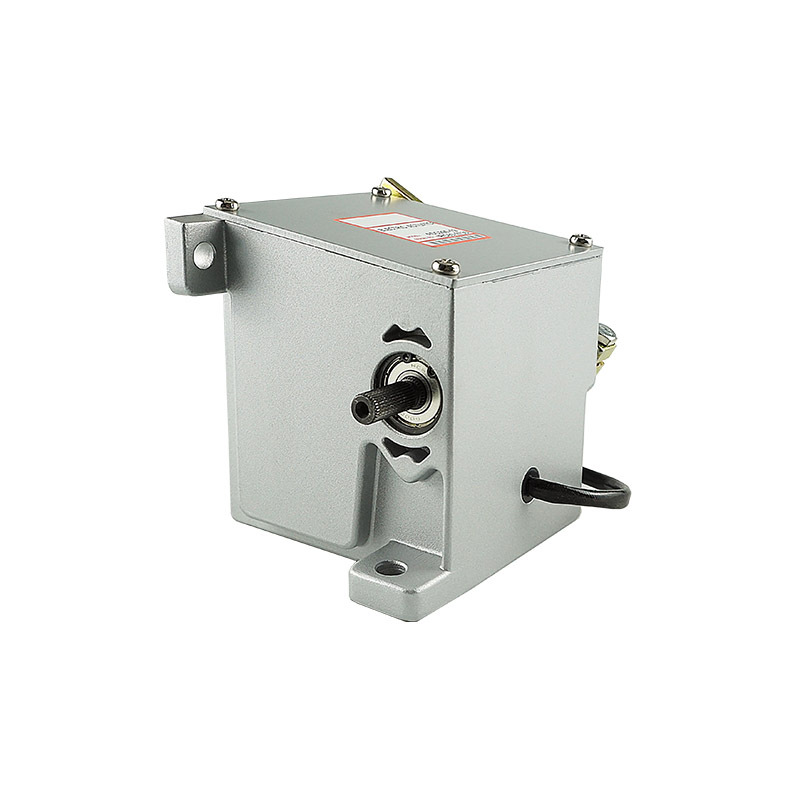

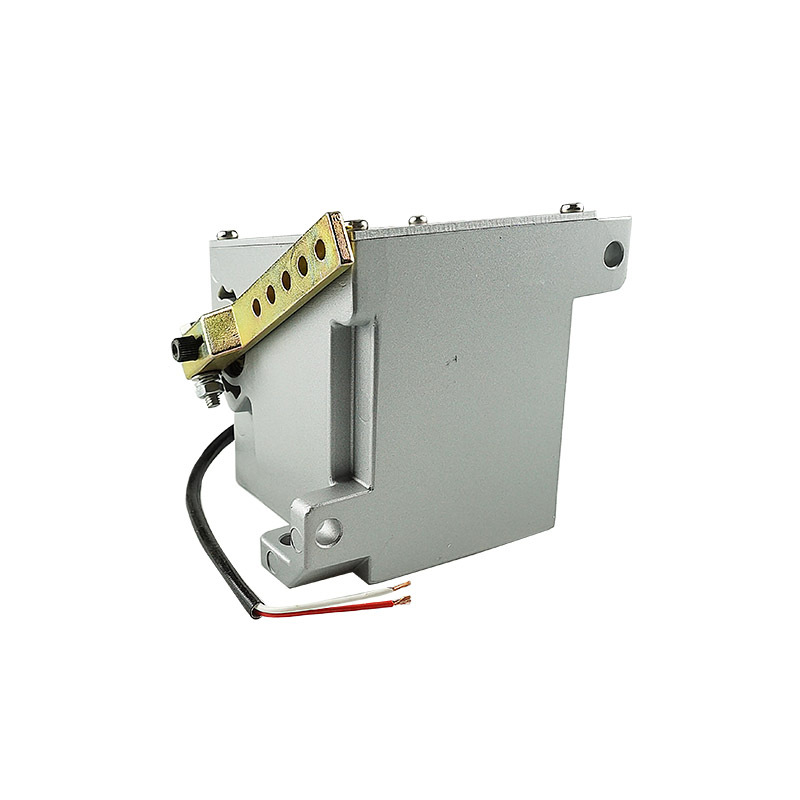

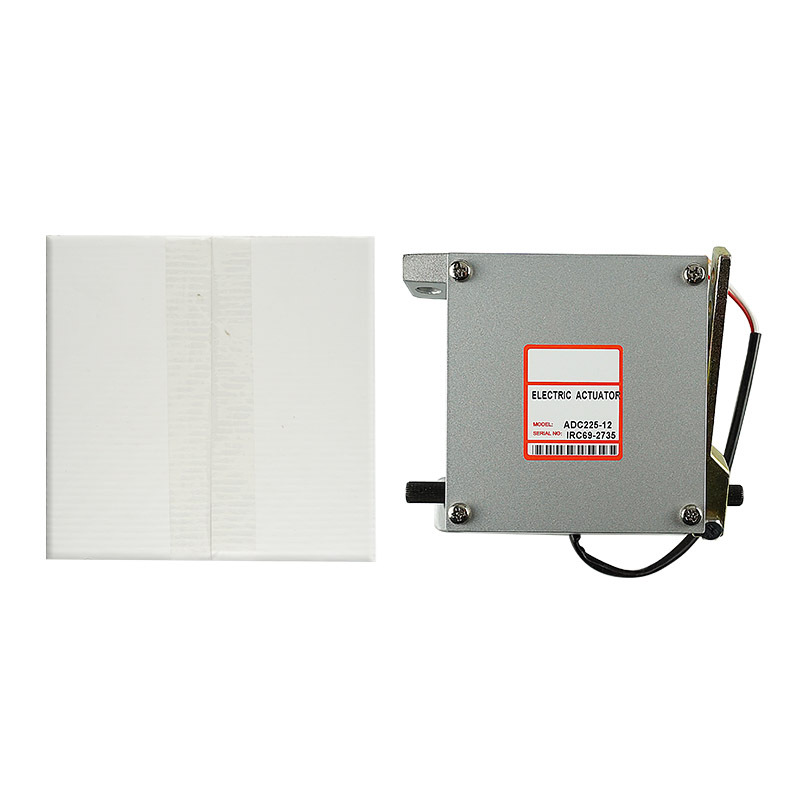

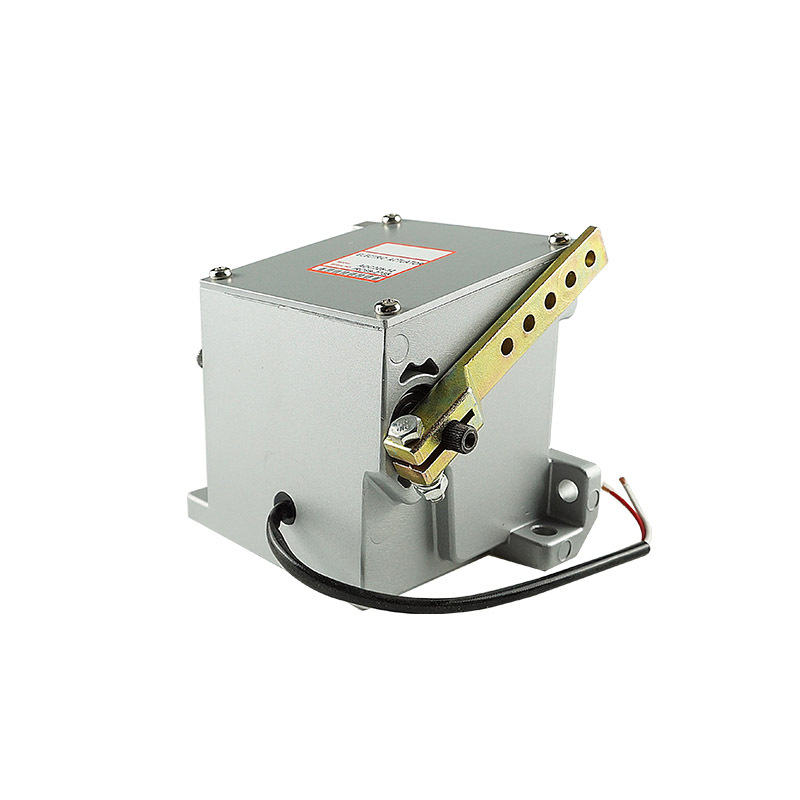

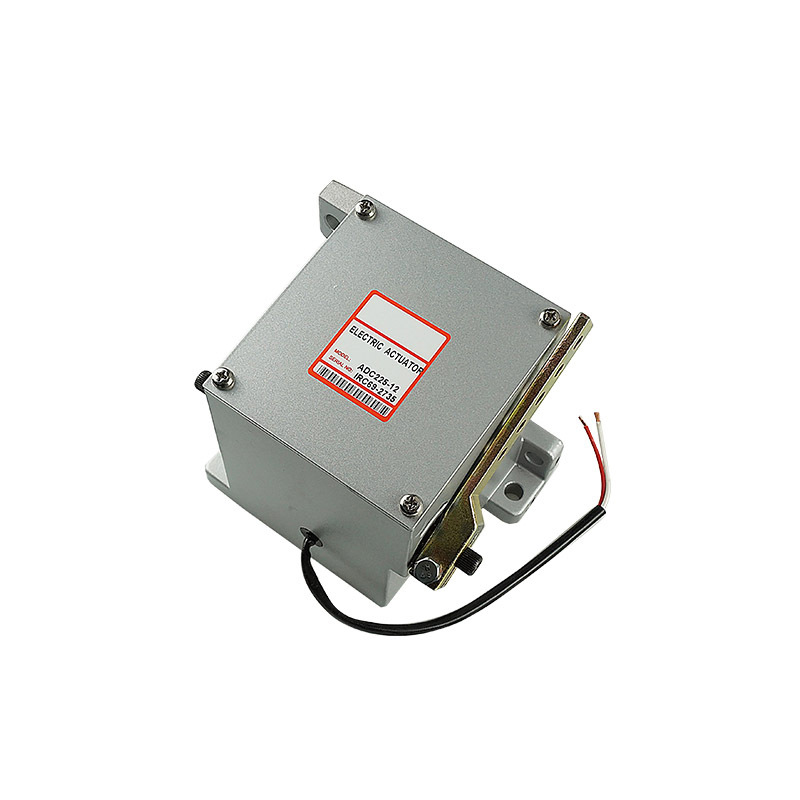

ADC225 Electric Governor Actuator diesel engine generator part speed controller electromagnetic heavy duty 12v 24V
Product ID : ADC225
Product Tags :
Generator Speed GovernorGenset Generator Engine Speed Governor Control Unit Controller
Product Description
|
PERFORMANCE
Working pressure :12VDC/24VDC Working angle:28 degree. Working Current:Less than 4A DC resistance:4.5OM the maximum torque:4Nm Hit:20G Vibration:Less than 500Hz. |
Specifications
|
PERFORMANCE |
||
|
Force: |
6.2 lb. (27.5N) |
|
|
Operating Stroke: |
0.80 in. (21 mm) |
|
|
Response Time (10-90%, 2-19 mm): |
35 msec. |
|
|
ELECTRICAL POWER INPUT |
||
|
Operating Voltage: |
12 or 24V DC |
|
|
Nominal Operating Current: |
12V DC version: |
4.0A |
|
24V DC version: |
2.0A |
|
|
Maximum Current: |
12V DC version: |
5.8A |
|
24V DC version: |
3.1A |
|
|
ENVIRONMENTAL |
||
|
Operating Temperature: |
-40 to +95 °C (-40 to +200 °F) |
|
|
Relative Humidity: |
up to 100% |
|
|
Vibration: |
20g, 20-500 Hz |
|
|
Shock: |
20g @ 11 msec. |
|
|
PHYSICAL |
||
|
Weight: |
4.75 lb. (2.2kg.) |
|
