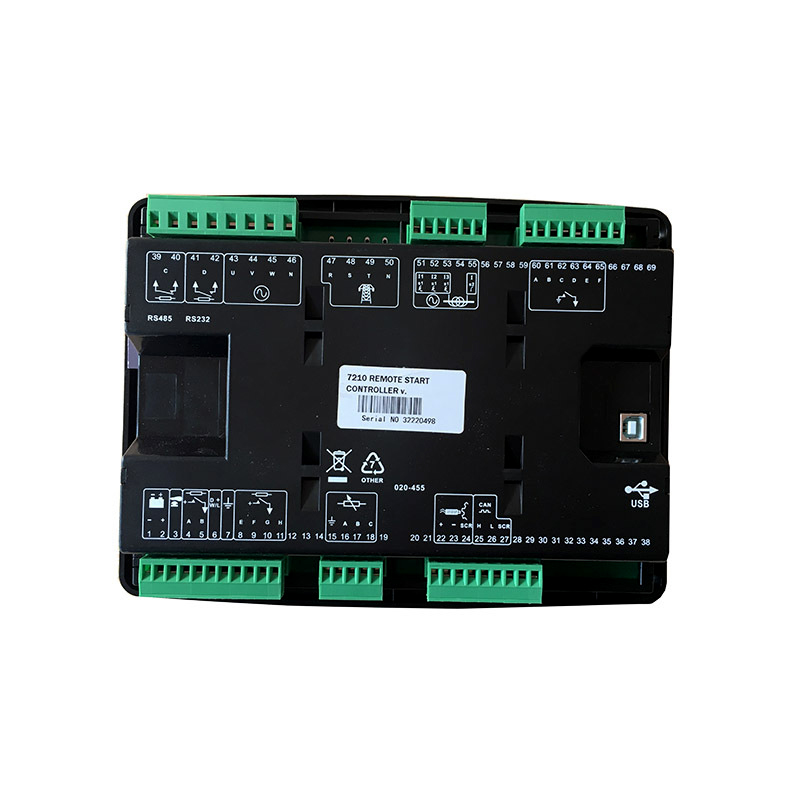

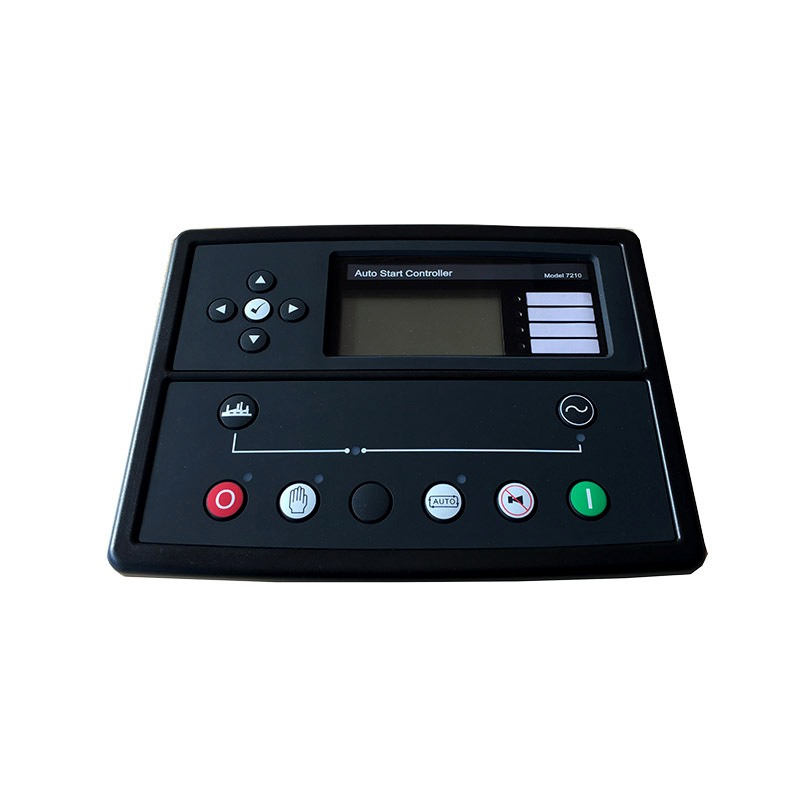

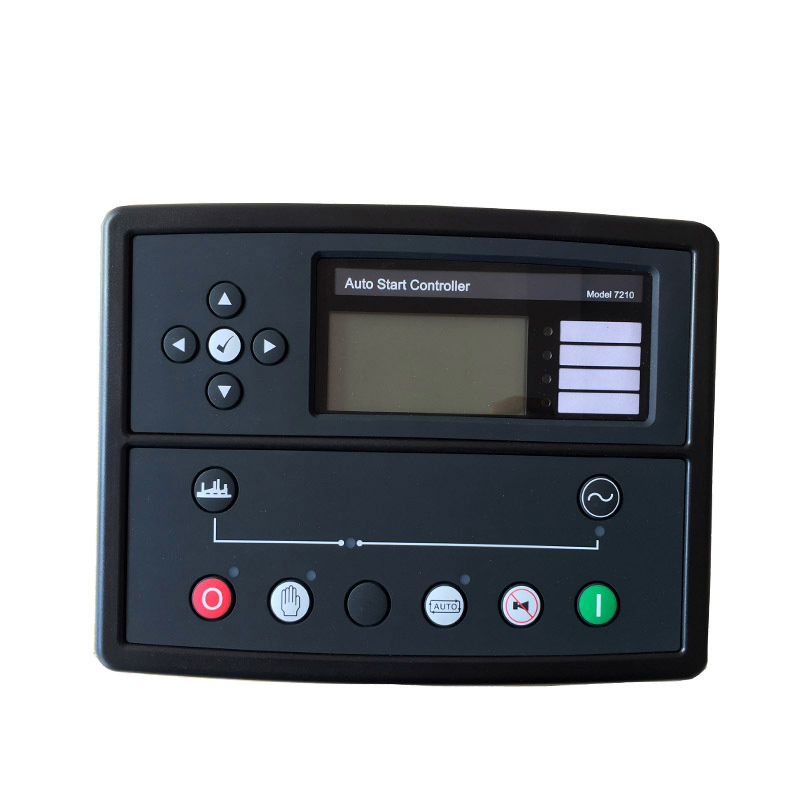

Genset Controller Automatic engine Start Module DSE7210
DSE 7210 Genset Auto Controller is an Auto Start Control Module .
Monitoring an extensive number of engine parameters, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen and illuminated LEDs. The deep sea 7210 Genset Controller will also monitor the mains (utility) supply.
DSE7210Genset Controller are compatible with electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engines and offer an extensive number of flexible inputs, outputs and engine protections so the system can be easily adapted to suit a wide range of application demands.
Enhanced features include a real time clock for improved event monitoring, the ability to display information in any language and a clear 4-line text display.
The modules can be easily configured using the DSE Configuration Suite PC software.
KEY FEATURES of DSE Genset CONTROLLER 7210
• 4-Line back- lit LCD text display
• Five key menu navigation
• Front panel editing with PIN protection
• LED and LCD alarm indication
• Customisable status screens
• Power save mode
• 7 configurable inputs
• 8 configurable outputs
• Configurable timers and alarms
• 3 configurable maintenance alarms
• Multiple date and time scheduler
• Configurable event log (100)
• Control logic facilities
• Easy access diagnostic page
• CAN and Magnetic Pick-up/Alt. sensing
• Fuel usage monitor and low fuel alarms
• Charge alternator failure alarm
• Manual speed control (on compatible CAN engines)
• Manual fuel pump control
• Engine exerciser
• “Protections disabled” feature
• KW Overload protection
• Power monitoring (kW h, kV Ar, kV A h, kV Ar h)
• Load switching (load shedding and dummy load outputs)
• True dual mutual standby with load balancing timer (Deep Sea DSE7210 Genset Controller only)
• USB connectivity
• Backed-up real-time clock
• Fully configurable via DSE Configuration Suite PC software
• Configurable display languages
• Remote SCADA monitoring via DSE Configuration Suite PC software
KEY BENEFITS of Genset Controller Deep Sea 7210
• 132 x 64 pixel ratio display for clarity
• Real-time clock provides accurate event logging
• Multiple date and time scheduler
• Set maintenance periods can be configured to maintain optimum engine performance
• Licence-free PC software
• IP65 rating (with supplied gasket) offers increased resistance to water ingress
