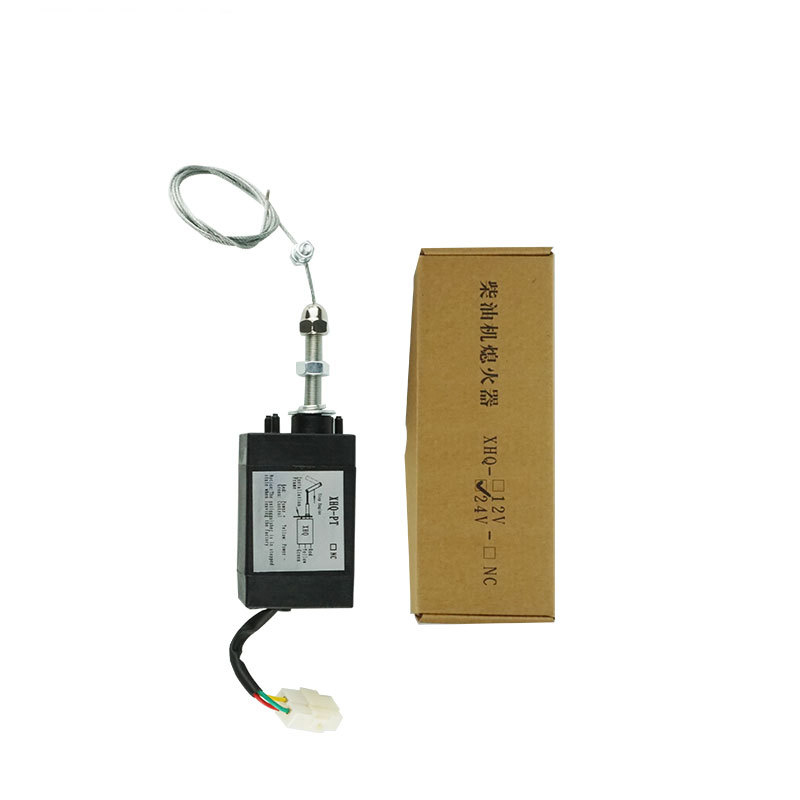

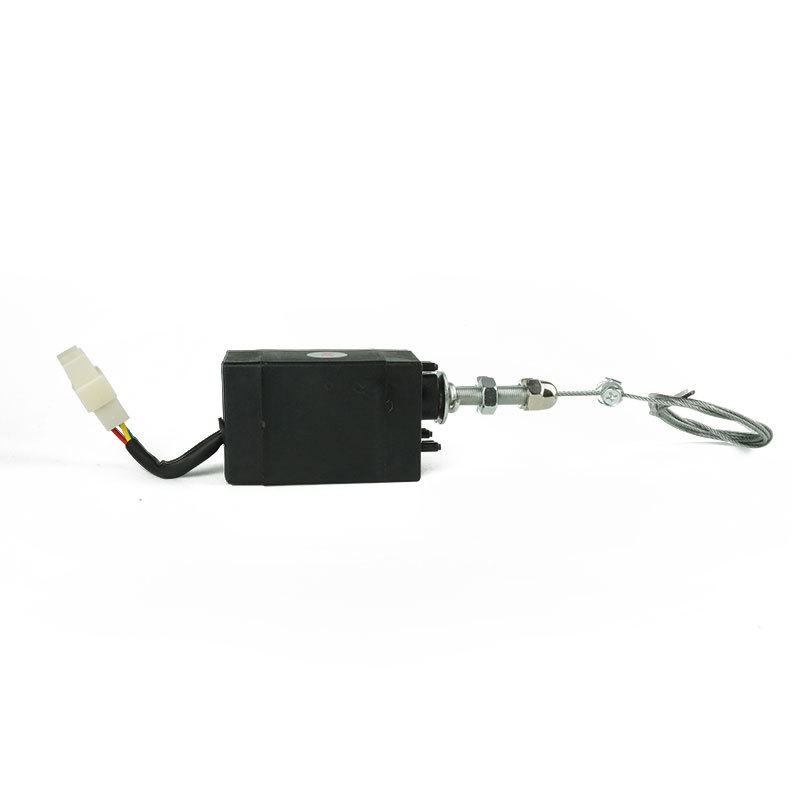

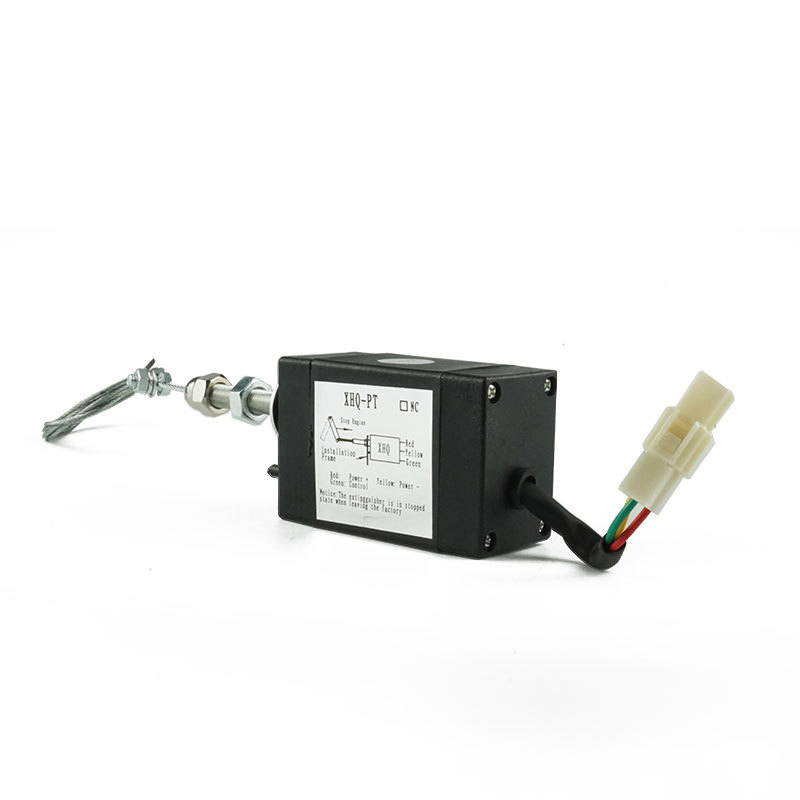

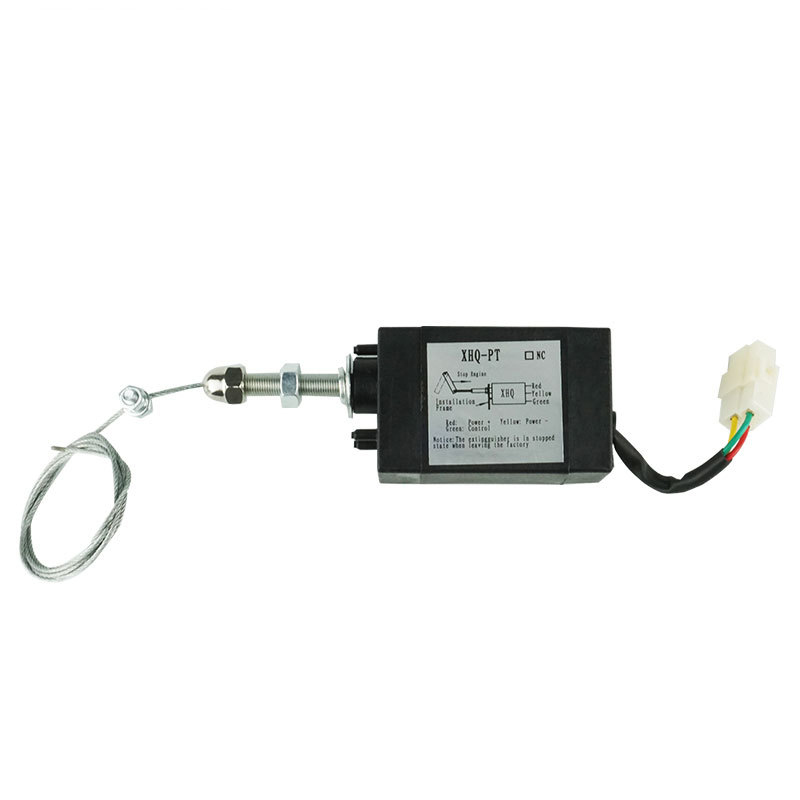

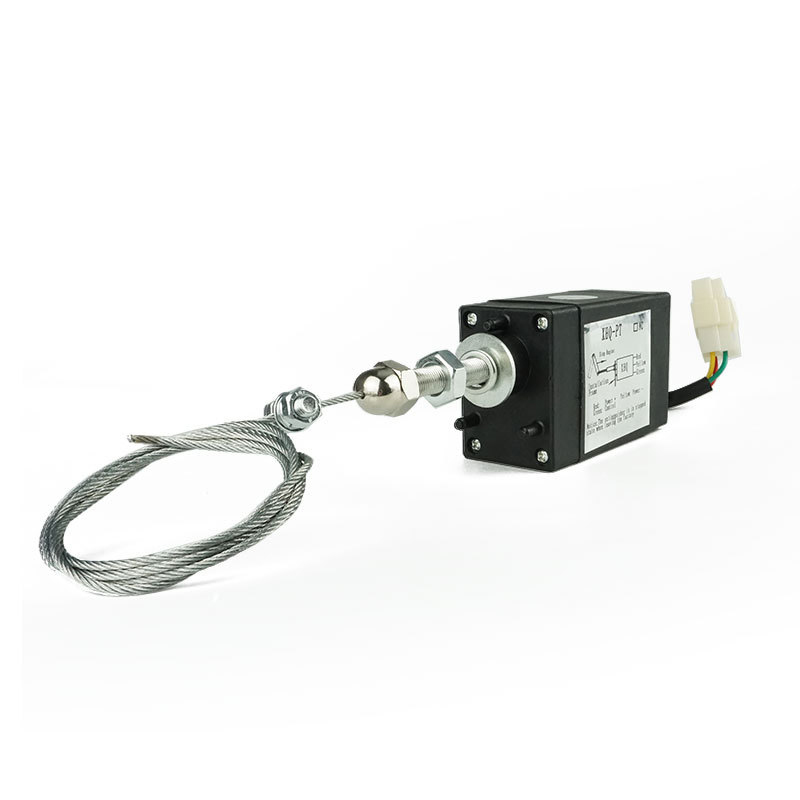

Flame extinguisher diesel generator parking solenoid valve flame extinguisher XHQ-PT 12V 24V flameout switch

Size :85mm × 58mm × 38mm

Weight :340g

Drawing length: 100CM

Rated voltage: DC12V / 24V

Working current: ≤0.5A

Action time: ≤1.5S

Pull force ≥100N

Wire travel 40mm ± 1mm

Ambient temperature -40 ℃ ～ 105 ℃

Service life ≥10000 times

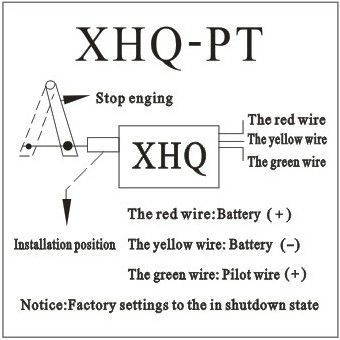

"Red wire" is connected to the positive pole of the battery, and "yellow wire" is connected to the negative pole of the battery;

 "Green line" Connect to the positive terminal of the control line. For details, refer to the wiring diagram of the flameout controller.
