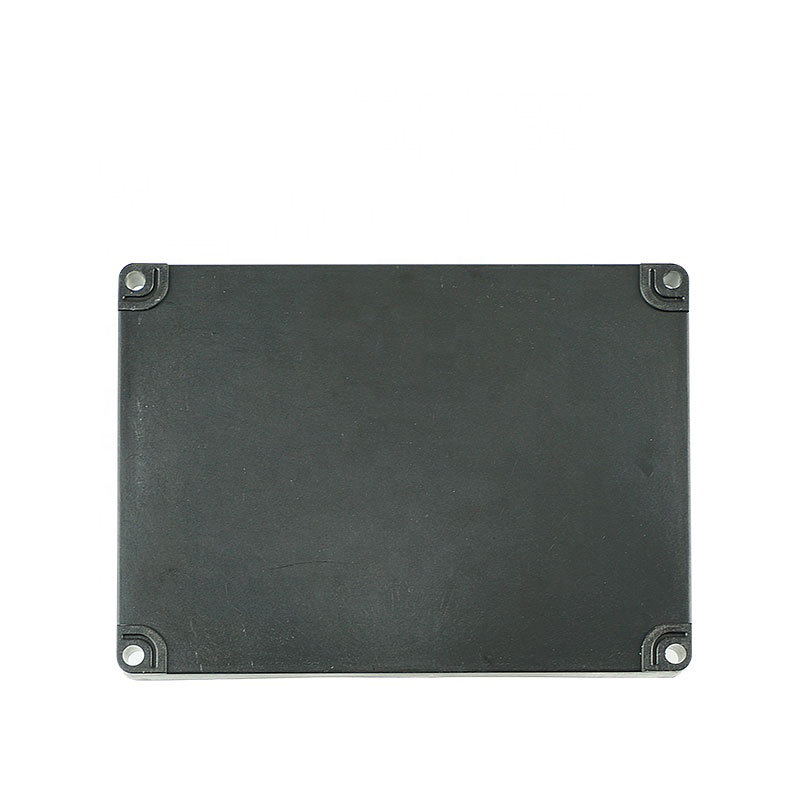

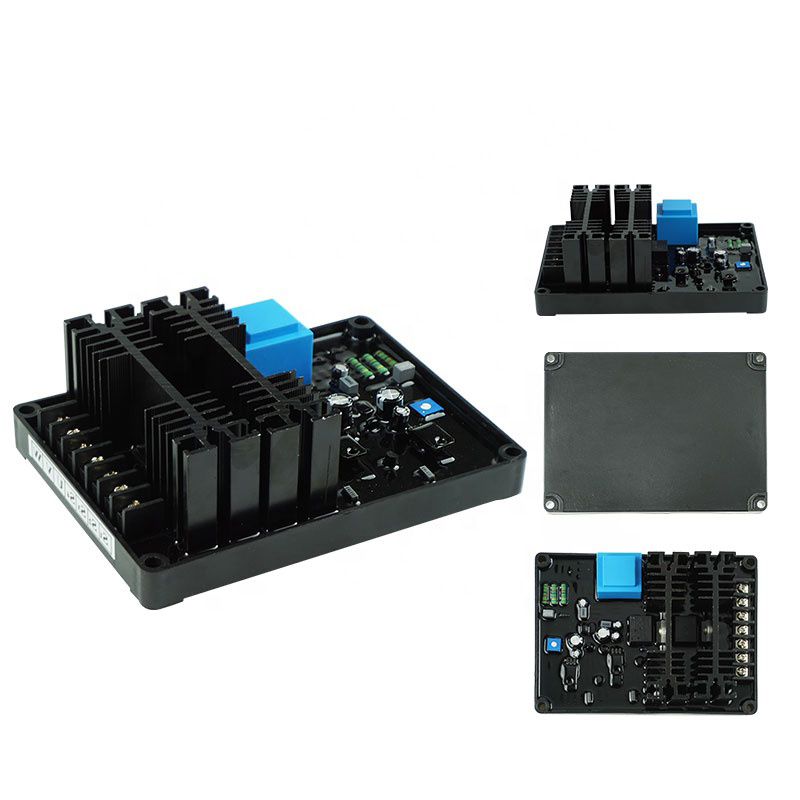

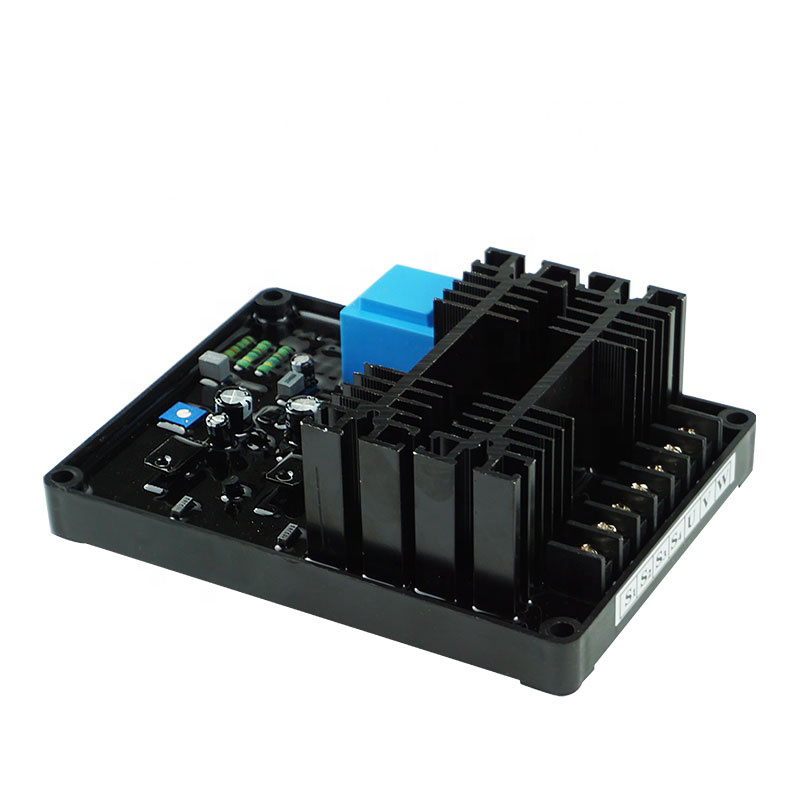

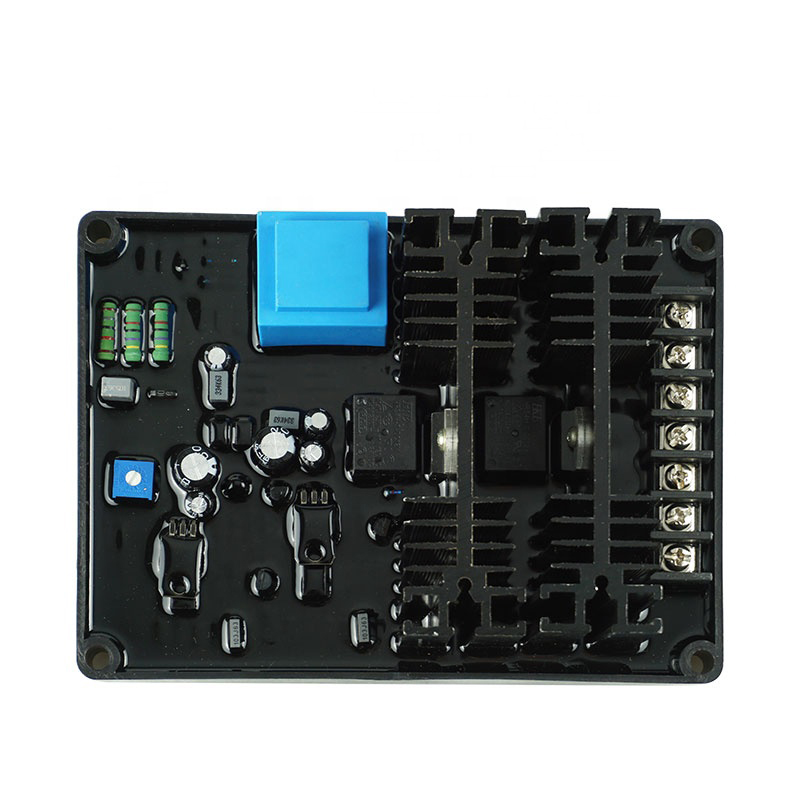

Diesel Generator Set Avr Automatic Voltage regulator GB-130B AVR

It is used for brush generator , from 64kw to 300kw.

Sensing Input.

Voltage:400VAC , 3 phase 3 wire

Frequency:50-60Hz

Exiciting voltage:20-130VDC

Partial current:20A

Regulation:+/-1% RMS with 4% engine governing

Voltage build-up: residual voltage at AVR terminal ?5VAC

External voltage regulation:+/-10% with 1k ohm 1 watt trimmer
