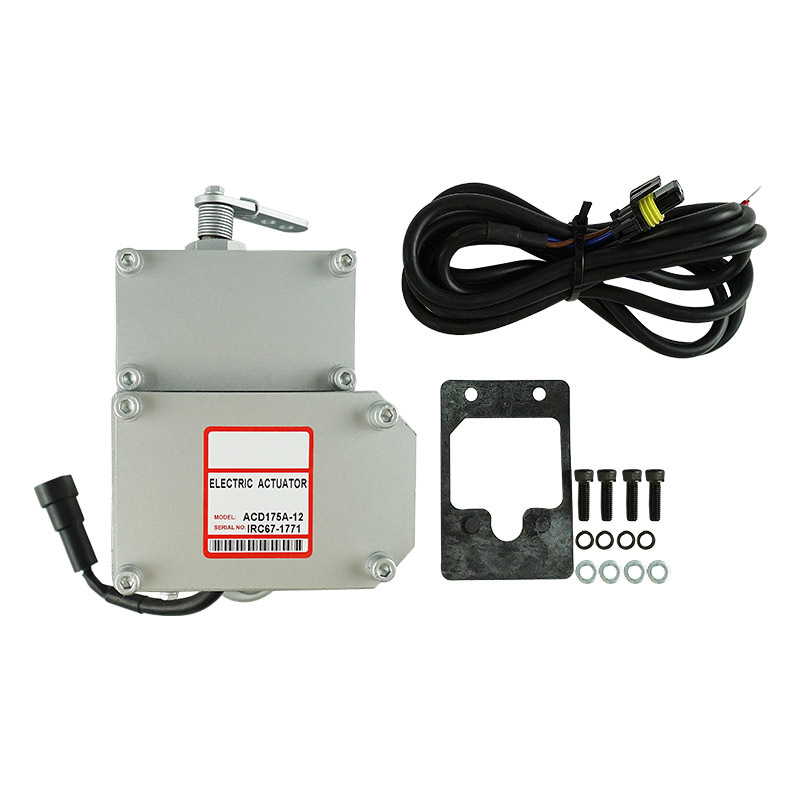

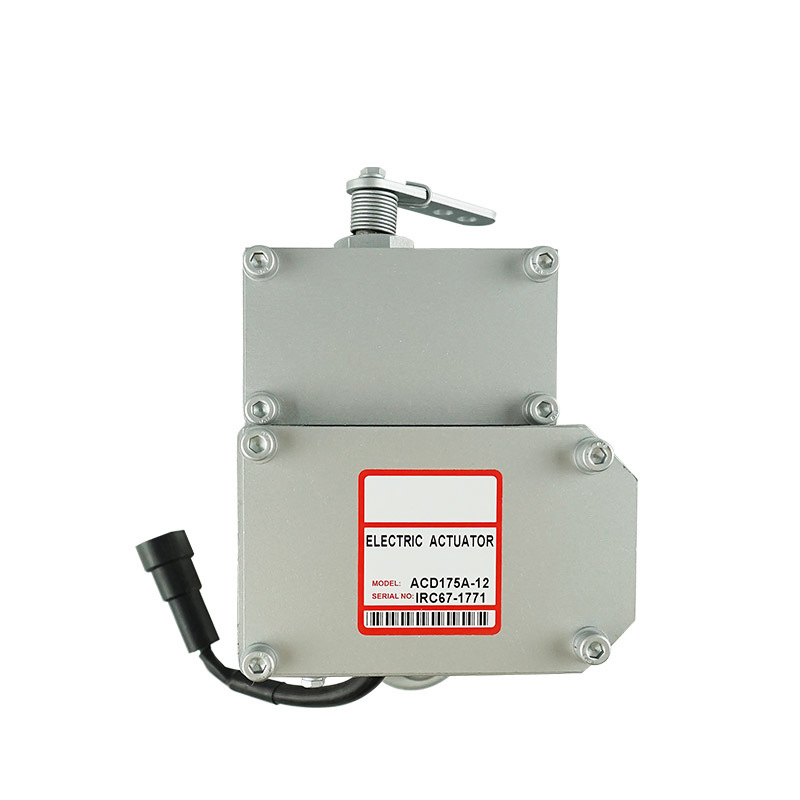

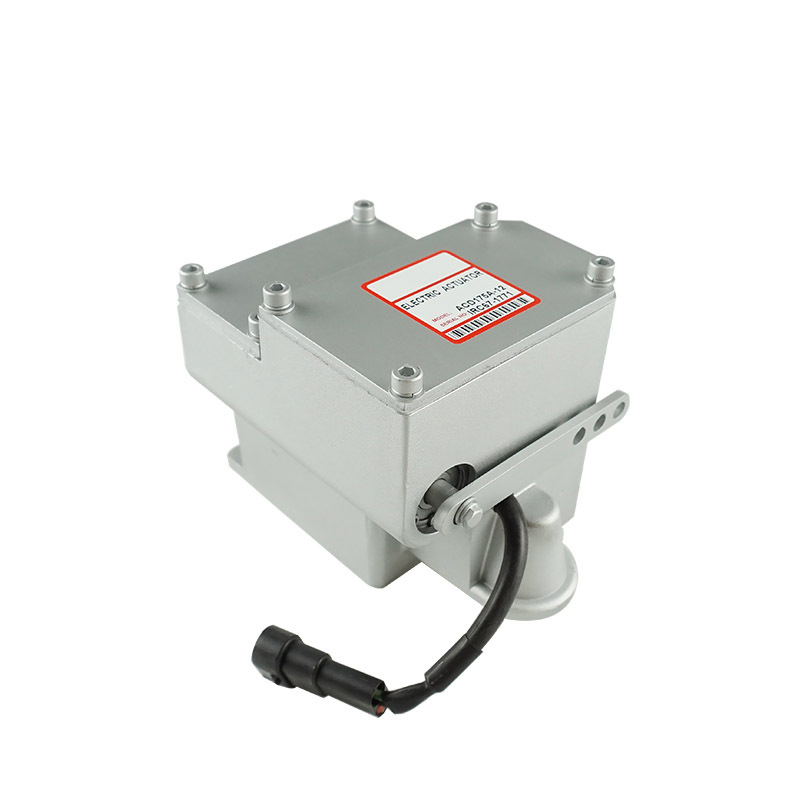

ACD175 12V/24V Genset Electronic Actuator ACD175A-12 ACD175A-24 For Diesel Governor Generator Parts

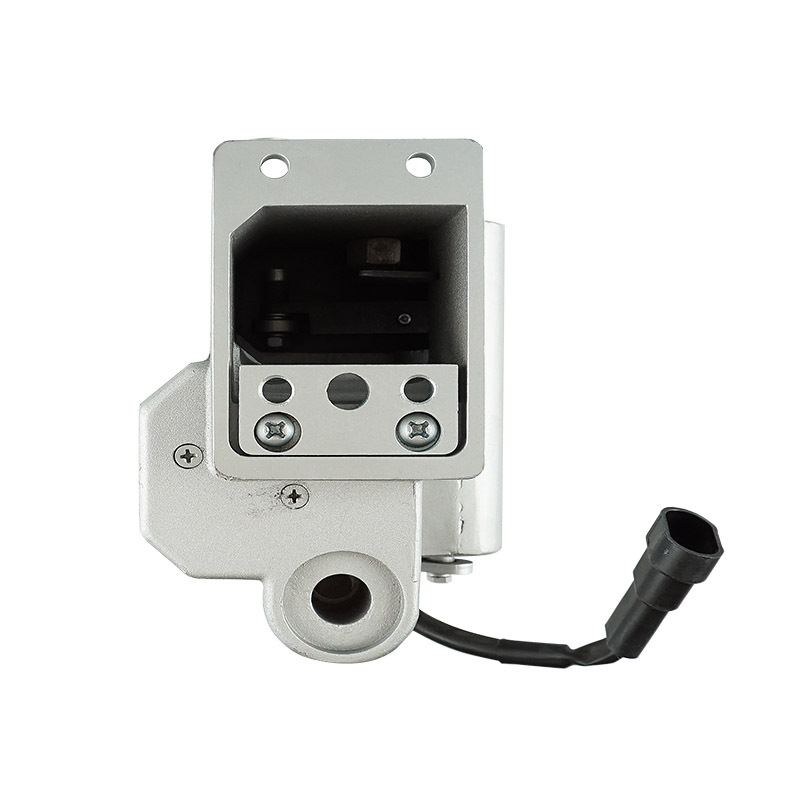

The Engine Actuator ACD175A-12/24 is designed to mount directly to inline fuel injection pumps, with a right hand rack in place of the mechanical governor.

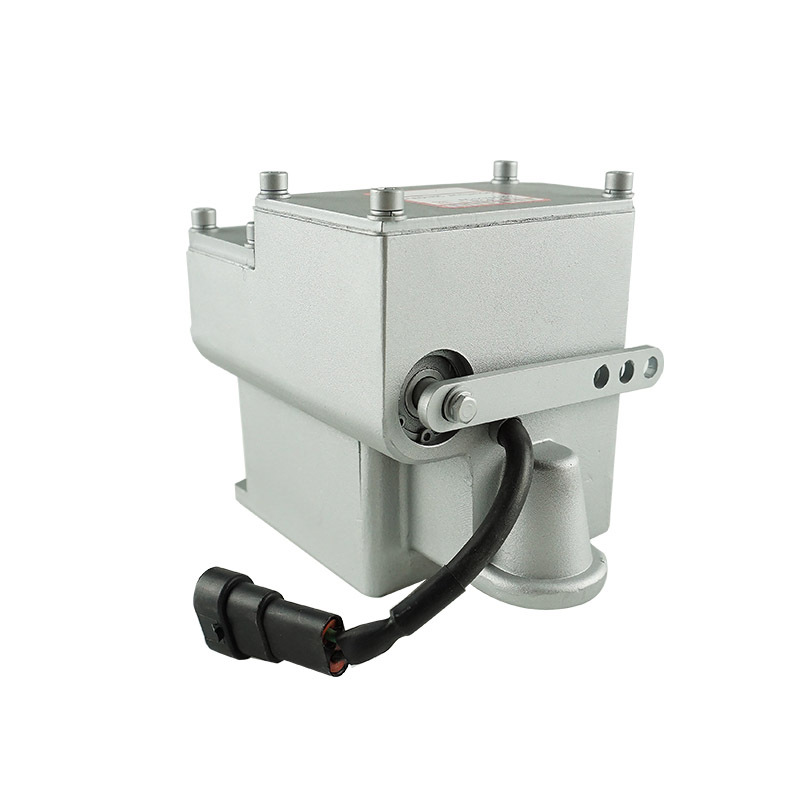

An optional external fuel shut off lever is provided to manually override the actuator’s control. Also provided, as standard equipment, is an adjustable internal maximum fuel limit.

The Engine Actuator ACD175-12/24 can control fuel pumps up to 8 cylinders. The ACD175A-12/24 Generator Actuator was designed with two isolated chambers.

The upper chamber is wet with oil and contains the connection to the fuel rack and an optional manual shut off mechanism. The sealed lower chamber contains the electromagnetic components.

Performance of ACD175-12 Engine Actuator

Force ：6.2 lbs (27.5N)

Operating Stroke：0.80 in (21mm)

Response Time (10-90% 2-19mm)：35 MSEC

Internal Sealing Pressure：2 bar (29 psi)

Electrical Power Input

Operating Voltage：12 VDC

Coil Resistance：12 VDC Version- 1.7+/-0.2 OHMS

Nominal Operating Current：12 VDC Version- 4.0 A

Maximum Current：12 VDC Version- 5.8 A

Actuator ACD175A-24

Force：6.2 lbs (27.5N)

Operating Stroke：0.80 in (21mm)

Response Time (10-90% 2-19mm)：35 MSEC

Internal Sealing Pressure：2 bar (29 psi)

Electrical Power Input

Operating Voltage：24 VDC

Coil Resistance：24 VDC Version- 7.2+/-0.5 OHMS

Nominal Operating Current：24 VDC Version- 2.0 A

Maximum Current：24 VDC Version- 3.1 A

Environmental for ACD175A-12/24V Engine Actuator

Operating Temperature：-40° to +200°F (-40° to +95°C)

Relative Humidity：Up to 100%

Shock：20g @11msec

Vibration：20g, 20-500 Hz

Agency：RoHS Compliant Physical

Weight：2.2 kg
