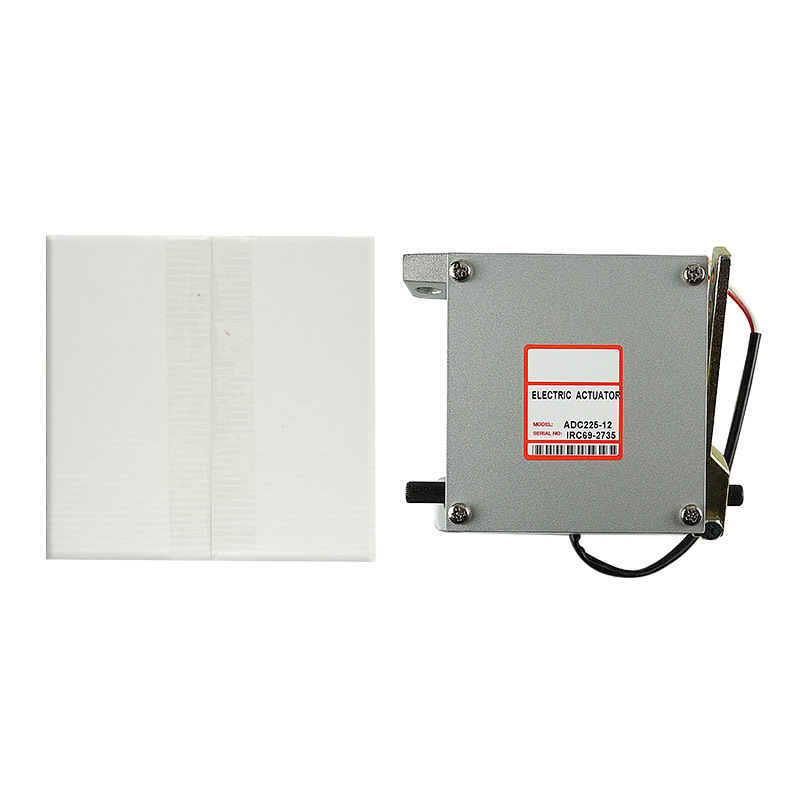

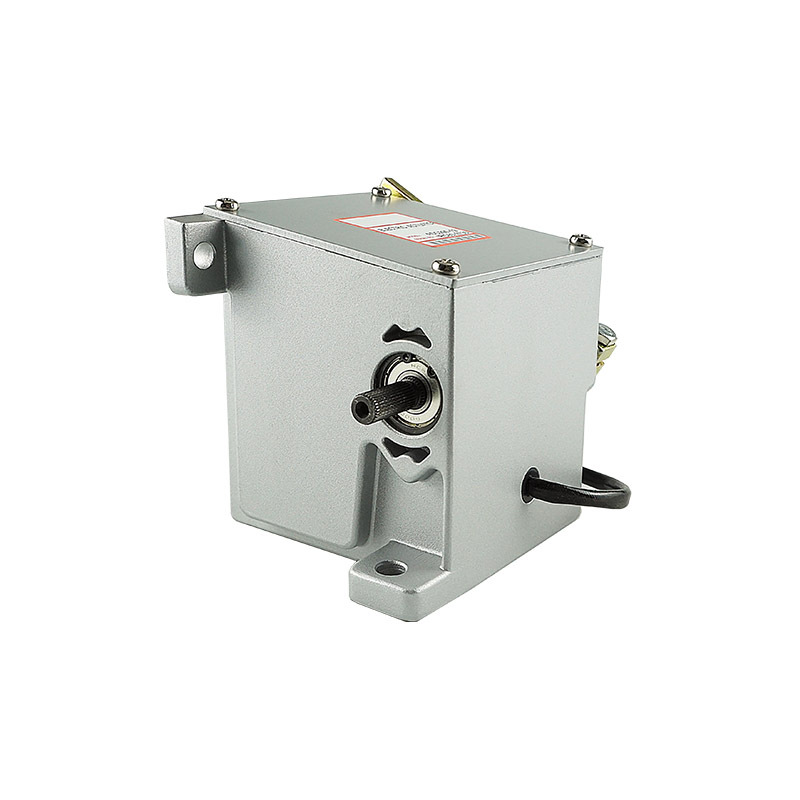

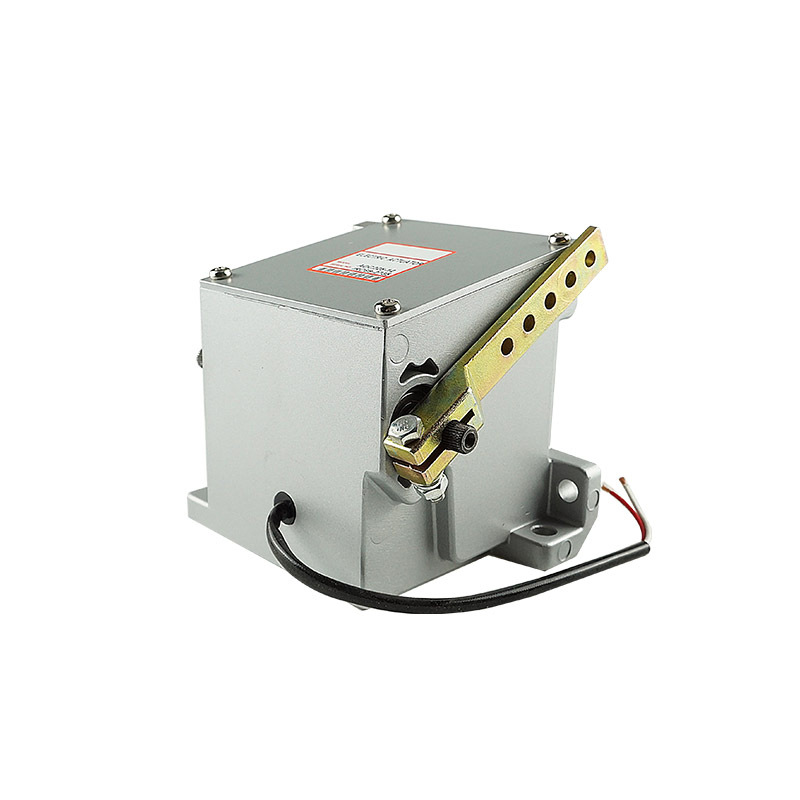

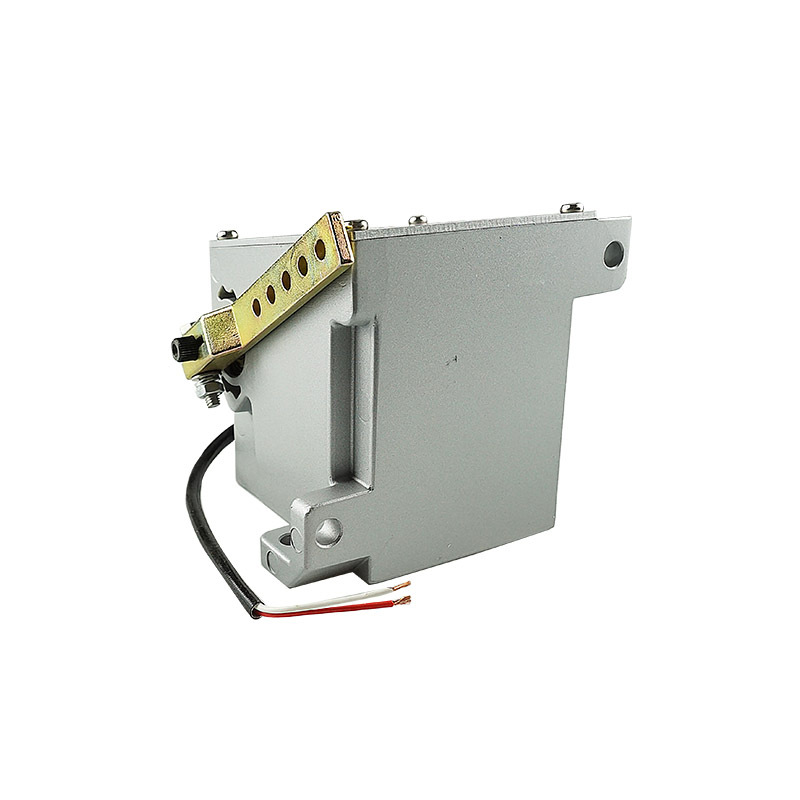

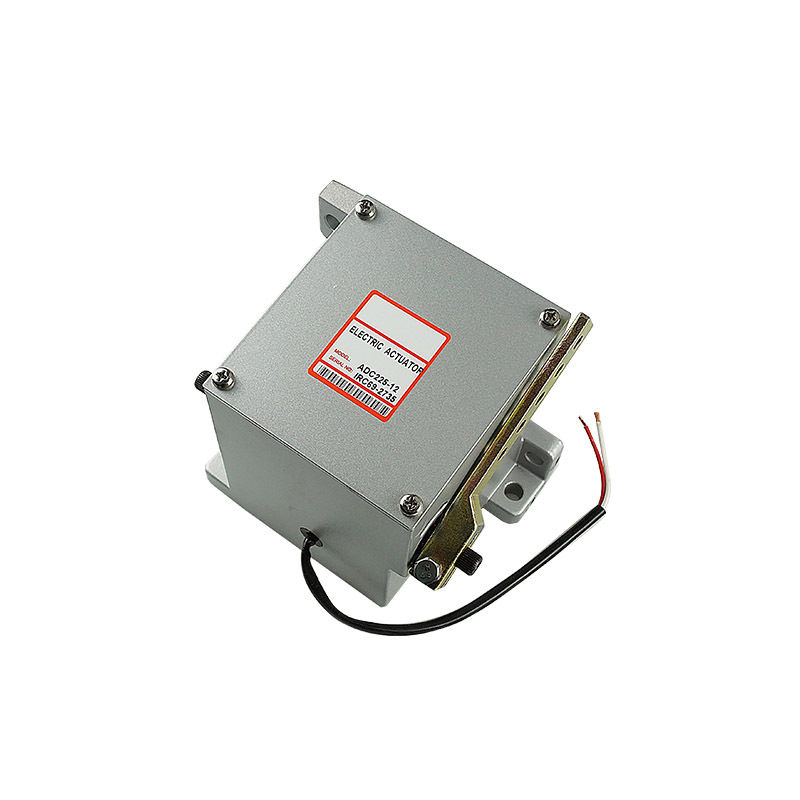

Diesel generator electronic actuator ADC225-12V or ADC225-24V
Product ID : ADC225-12V
Product Tags :
Diesel EngineFuel Pump ActuatorGenerator Governor ActuatorSpeed Governor Actuatoengine actuator controlfuel Actuator
Product Description
| ADC225-12V 24V | ||
| Power Input | Operating Voltage | 12, 24, or 32 VDC |
| Normal operating Current | 1.5 A at 24/32VDC | |
| Maximum Current-Continuously Rated |
4A at 24V/ 32 VDC | |
| Performance | Available Torque | Max 2.2 ib-ft (2.7Nm) |
| Maximum operating shaft Augular Travel |
25± 1 degree CW/CCW | |
| Environmental | Temperature Range | -65 to + 200°F(-54° to +95 °C) |
| Relative Humidity | Up to 100% | |
| All Surface Finishes | Fungus Proof and Corrosion Resitant | |
| Reliability | Vibration | Up to 20 G 100 50-500 Hz. |
| Testing | 100% Tested | |
| Physical | Dimensions | See Diagram 1 |
| Weigh1 | 8.25 lbs.(3.75kg) | |
| Mounting | Any position, Vertical Preferred | |
| Mating Hardware | Connector ACB 225/ADB 225 | EC 1000/ MS3106R 14S-6S (6 pins) |
| Connector ADC 225 | Supplied with Actuator | |
| Lever ACB 225/ ADB 225/ADC225S | LE 1400-2 | |
| Lever ADC225 | LE 1500-2 | |
| Rod End Bearings (to attach a 1/4- 28THD linkage rod to the lever) |
BR 200(right hand) / BR201 (left hand) | |
| Wiring harness ADC225 | Supplied with Actuator | |
| Wiring harness ACB225/ ADB225 | Various Lengths availale |
|
