PRODUCT

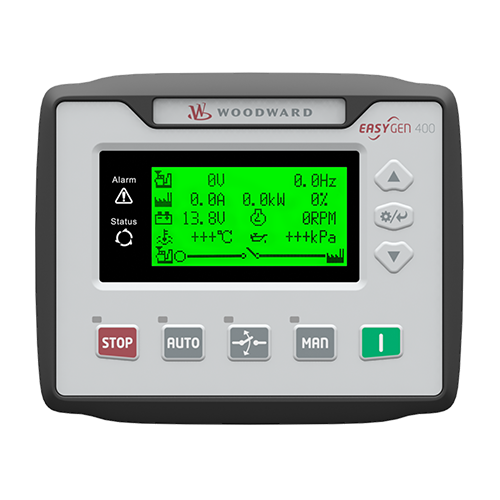

Woodward Controller EASYGEN 400
easYgen-400 is intended to be used for single automation systems, auto start/stop of the unit is performed using a remote signal.
Functions
-
automatic start/stop of the genset, ATS (Auto Transfer Switch) control with failure indication and protection function
-
All output ports are relay-out Parameter settings: parameters can be modified and stored in internal FLASH memory and cannot be lost even in case of a power outage; most of them can be adjusted using front panel of the controller and all of them can be modified using ToolKit-SC on a PC via USB port.
-
Temperature and oil pressure curves can be used directly and users can define the sensor curves by themselves.
-
Multiple crank disconnect conditions (generator frequency,speed sensor, oil pressure) are optional.
-
Event log, real-time clock, scheduled start & stop generator(can be set as start genset once a day/week/month with or without load).
-
Start-up logo and display time are user-defined.
-
Can be used on pumping units and as an indicating instrument(indicate and alarm are enable only, relay is inhibited).
-
Maintenance function: Actions (warning or shutdown) can be set when maintenance time out.
-
Instead of conventional analog modulation with a potentiometer,all parameters use digital adjustment for more reliability and stability.
-
Accumulative total run time and total electric energy of A and B. The user can reset it to 0 and re-accumulate the value, which allows to count the total value.
