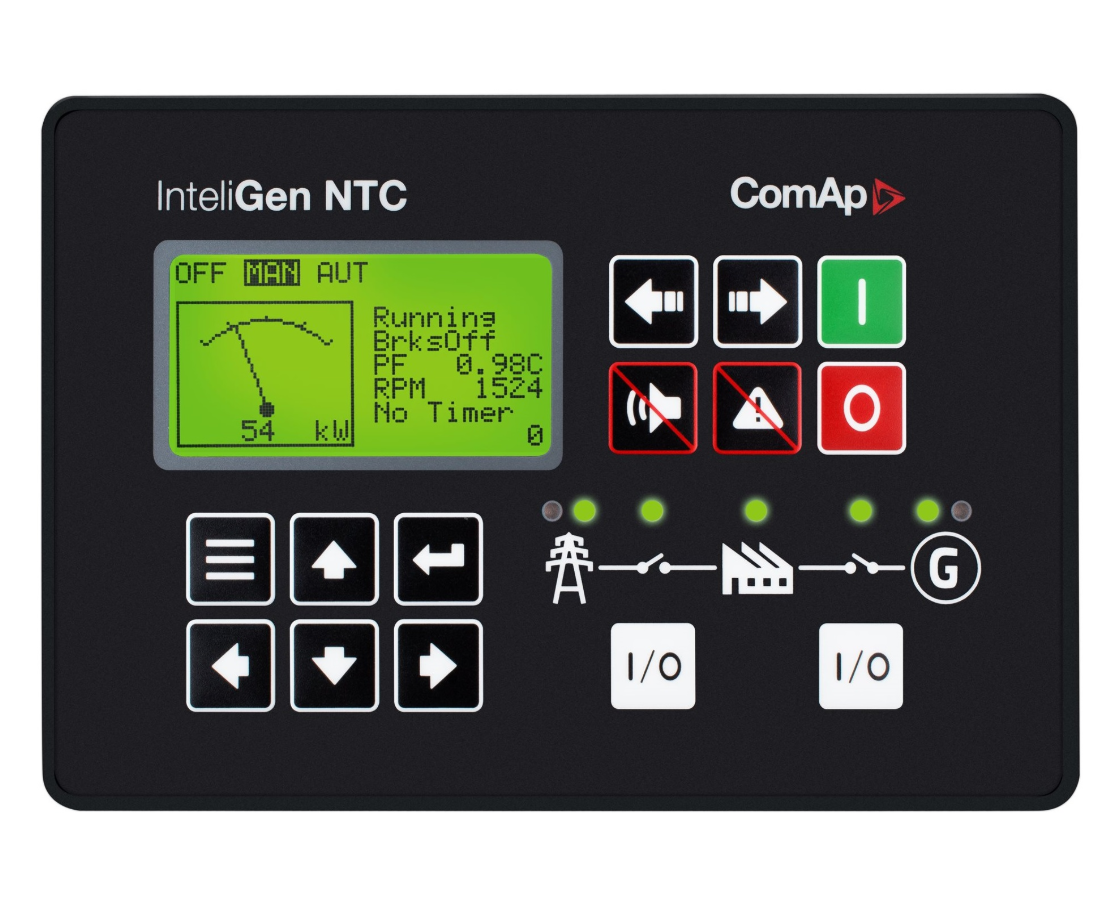

IG-NT-GC Generator Control Unit, IG-NTC-GC And Machine Controller

The InteliGen NTC, an enhanced version of ComAp’s bestseller – InteliGen NT, is a high-end controller suitable for any complex single or multiple gen-sets paralleling application operating in standby or island mode. It is a perfect unit for mission-critical installations such as datacenters, power stations or rental applications. InteliGen NTC features ComAp’s powerful in-built PLC delivering high-level of flexibility, advanced history log and fully configurable protections.
Marine certified controller.
* Gen-set controller for single or multiple generating sets operating in standby or parallel modes
* Support of engines with ECU (Electronic Control Unit)
* Many communication options – easy remote supervising and servicing
* To be used inde npendently or in conjunction with detachable / external colour displays InteliVision 5, InteliVision 8,
InteliVision 12Touch, or InteliVision 18Touch
* Gen-set performance log for easy problem tracing
* Automatic synchronizing and power control (via speed governor or ECU)
* AMF function, Baseload, Import / Export, Peak shaving, Voltage and PF control (AVR)
* Generator measurement, Mains measurement
* Inputs and outputs configurable for various customer needs
* Controller redundancy
* Event-based history (up to 500 records) with customer-selectable list of stored values; RTC; statistic values
* Integrated PLC programmable functions
* Integrated fixed and configurable protections
* Selectable measurement ranges for AC voltages and currents – 120 / 277 V, 0–1 / 0–5 A
* Secondary isolated RS232 / RS485 interface
* Support of external colour displays
* USB 2.0 slave interface
* With Solution of Application support - manage up to 992 Gen-sets in Extended Multiple Gen-set Application (Bank Controller)
