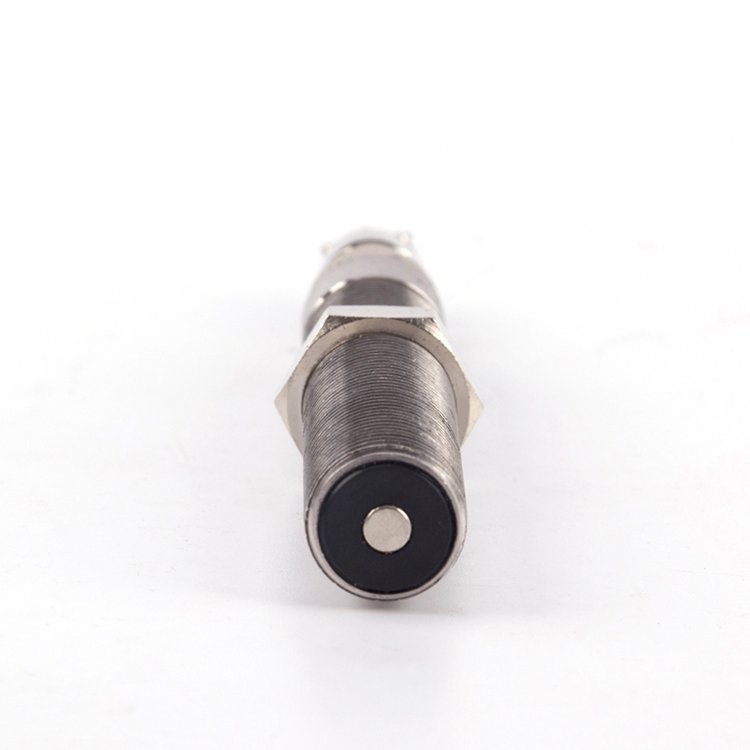

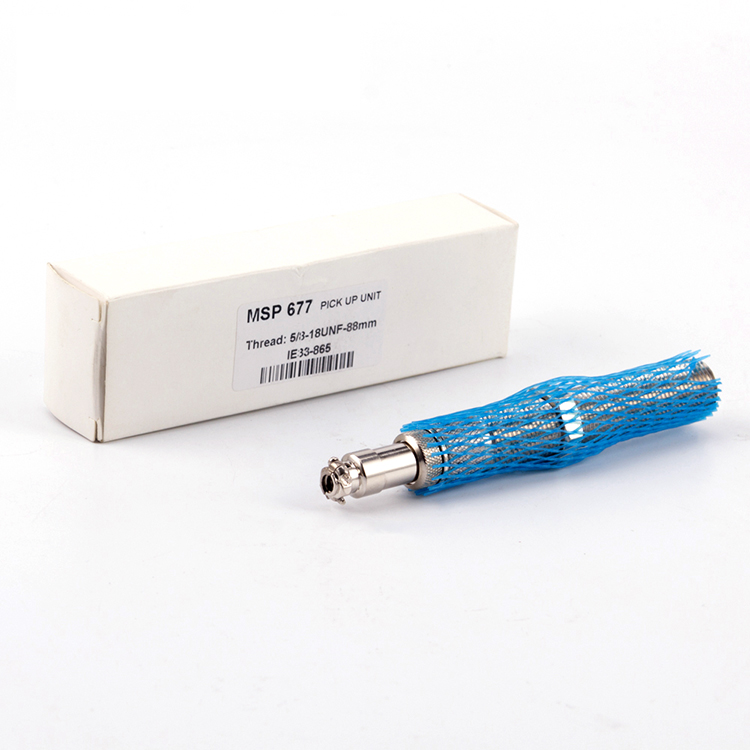

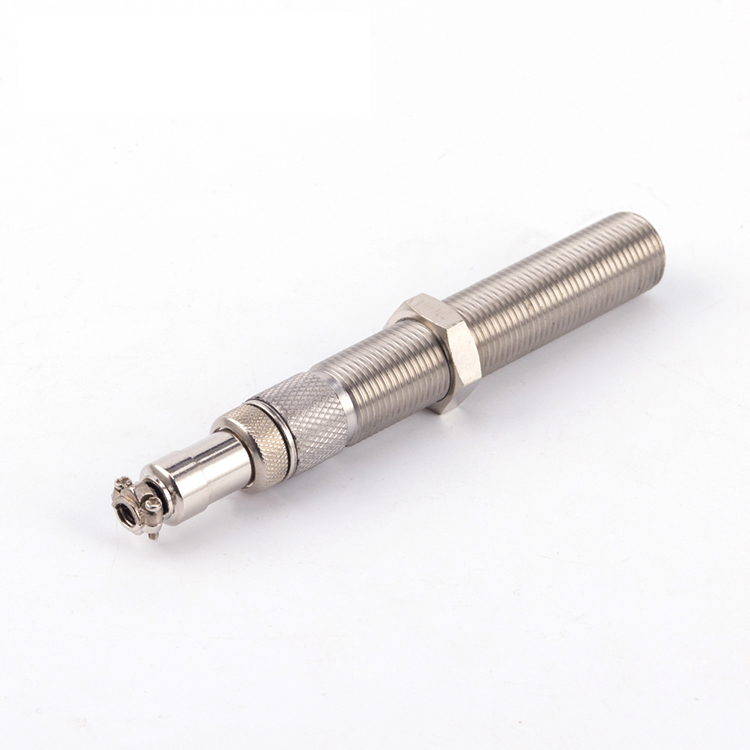

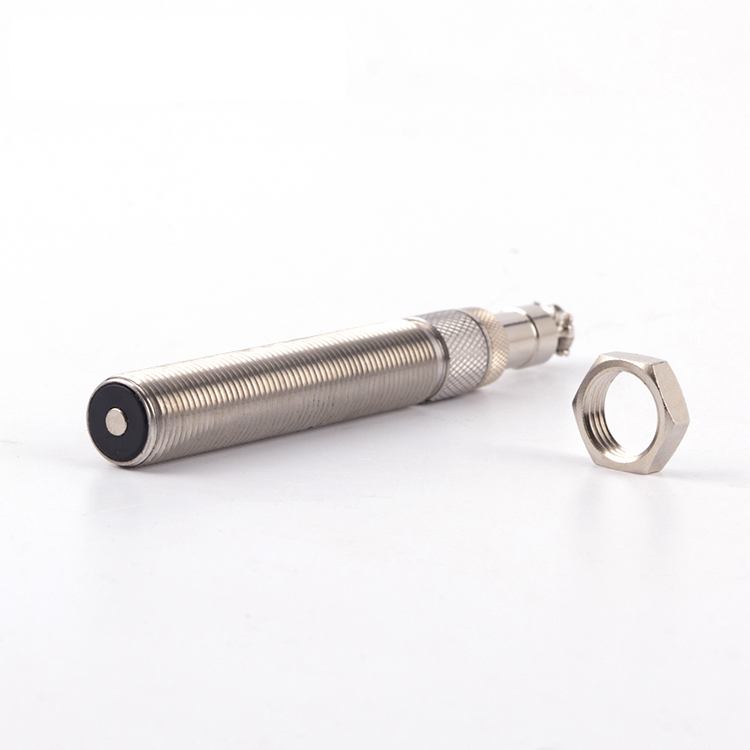

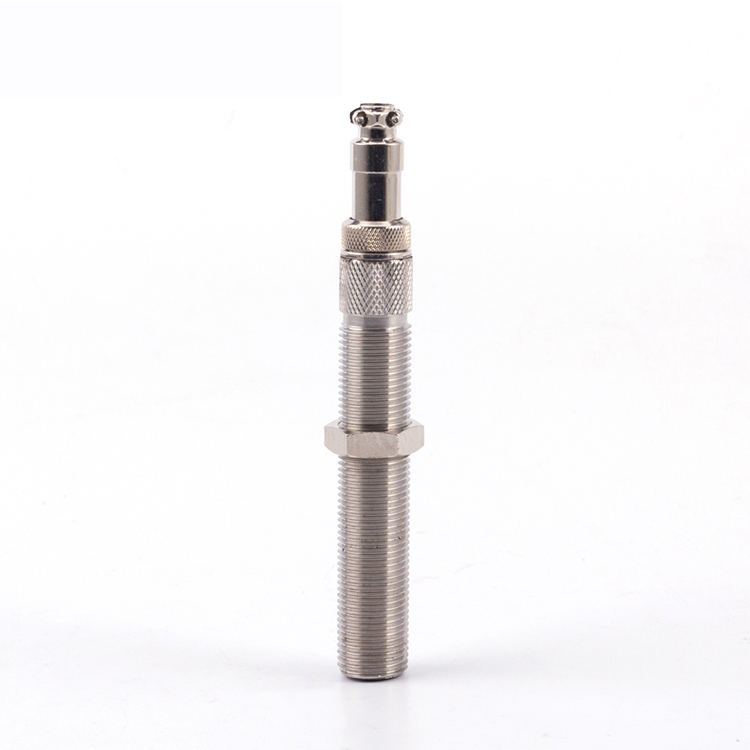

Diesel Engine 5/8-18 Magnetic Pick-Up Speed Sensor MSP677 for generator parts
Specification:
Condition: 100% Brand New
Item Type: Generator Sensor
Material: Metal
Range:50-5000Hz
Inductance value: 142mh + 25%
Resistance value: maximum 300
Thread: 5/8-18 UNF-2A
Temperature range: -55 degrees Celsius to 105 degrees Celsius
Idle output: 1.5V AC minimum
Maximum output: 30V AC
MSP677 Generator Sensor Magnetic Pickup MPU Rotational Sensor Generator Parts
Features:
1. It is made of high quality metal, rust and corrosion resistance, and durable to use.
2. Convenient installation and easy operation.
3. Easy to change when the sensor is missing or damaged, as a spare one to use.
4. It can be used in bad environment such as smoke, oil and gas, water , etc.
5. Strong output signal, good anti-interference performance.
5/8-18UNF UNF 80mm Aviation Plug Speed Sensor Magnetic Pickup MPU MSP677 indicates when ring gear teeth,
or other ferrous projections,pass the tip of the sensor.Electrical impulses are induced within the coil and sent to speed
control unit.The signal from the magnetic speed sensor,teeth per second is directly proportional to engine speed.
