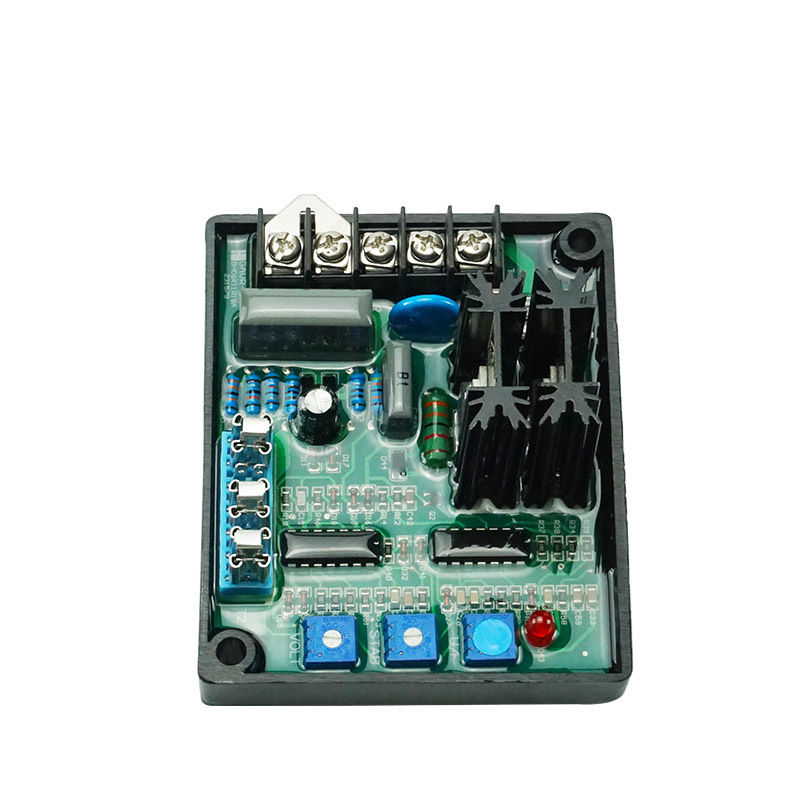

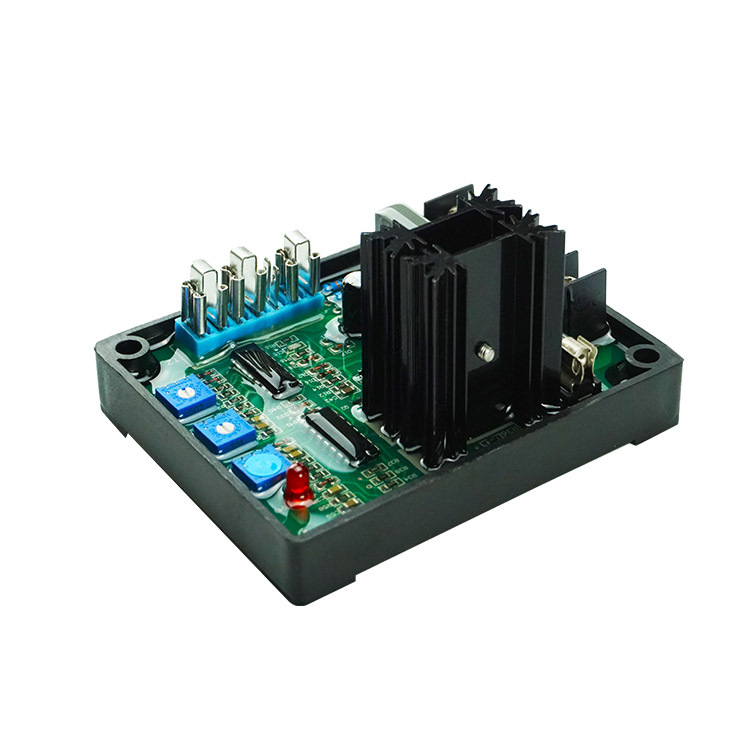

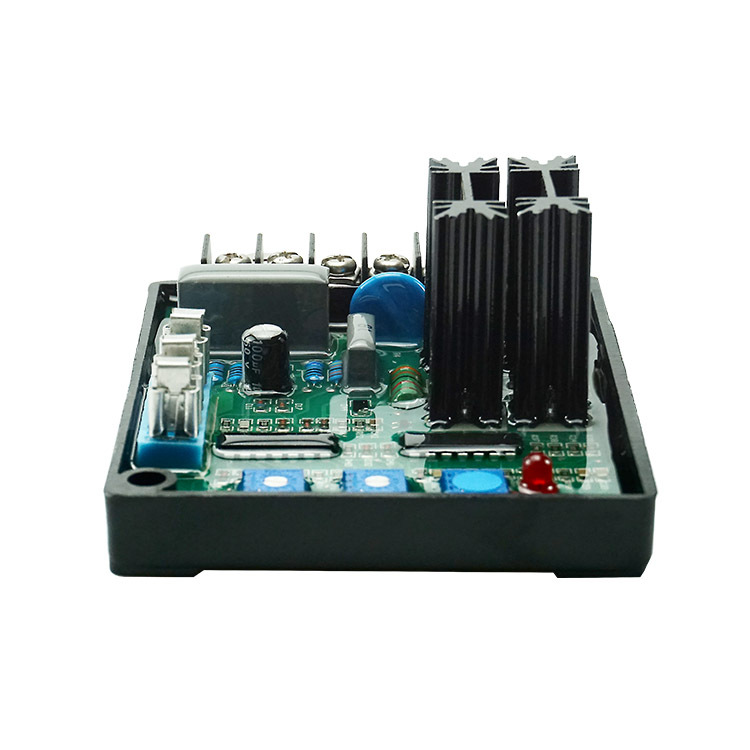

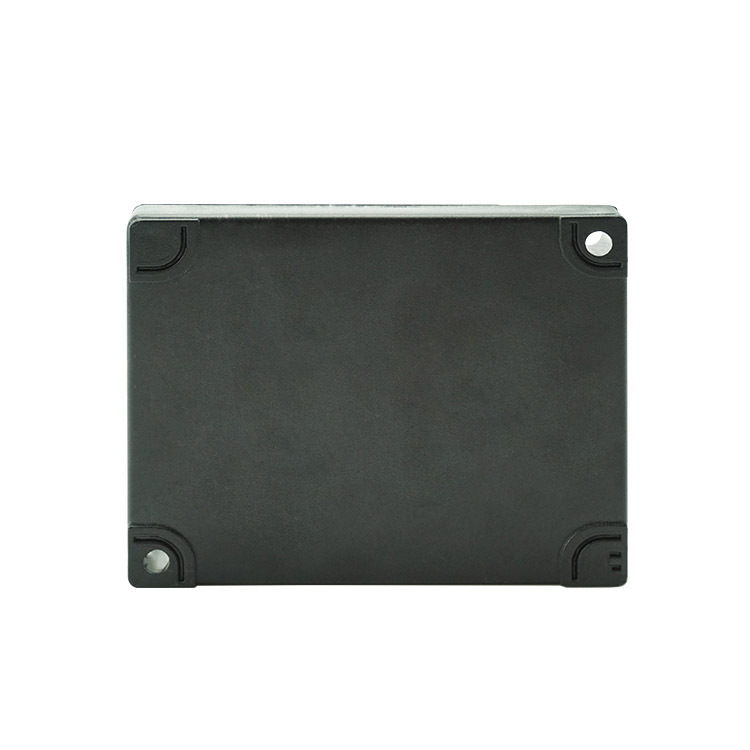

Generator Automatic Voltage Regulator GAVR-8A GAVR 8A avr for generator diesel alternator Part
Product ID : GAVR 8A
Product Tags :
AC Brushless GeneraAVR for generatorCircuit Diagram board StabilizerFully AutomaticGenerator AVRGenerator Universal AVRPower Voltage RegulatorVoltage Protectorautomatic voltage regulatorstep down voltage regulatorvoltage regulator
Product Description
Universal Brushless Generator Automatic Voltage Regulator 8A AVR
Gavr-8A Universal 8Amp 1/2 Wave Self Excited Dip-Switch Progmmable avr
Voltage Regulation < ±1%
220/440VAC Programmable Input
Rugged Compact Desigh
Soft Start Voltage Ramping
With Under Frequency Roll Off Protection
EMI Suppression
Built-in High Capacity 8Amp Fuse
| Sensing input Voltage | 110/220/400VAC , 1 phase 2 wire |
| Power Input voltage | 100-260VAC , 1 phase 2 wire |
| Output voltage | max 90 VDC at 240VAC input |
| Current | Continuous 3 A , intermittent 5A for 10secs |
| Resistance | Min.15 ohm , Max 100ohm |
| Voltage Build-up | residual voltage at avr terminal >5VAC |
| Voltage Regulation | <±1% with 4% engine governing |
| Operating Temperature | (-40°C to +60°C |
| Storage Temperatue | (-65°C to +85°C |
| External Volts Adjutment | ±7% with 1k ohm 1 watt trimmer |
| EMI Suppression | Internal electromagnetic interference filtering |
| Unit Power Dissipation | Max.8 watt |
| Under Frequency Protection | 60Hz system presets knee point at 55Hz |
| 50Hz system presets knee point at 45Hz | |
|
Dimensions
|
107mmL*82mmW*50mmH |
