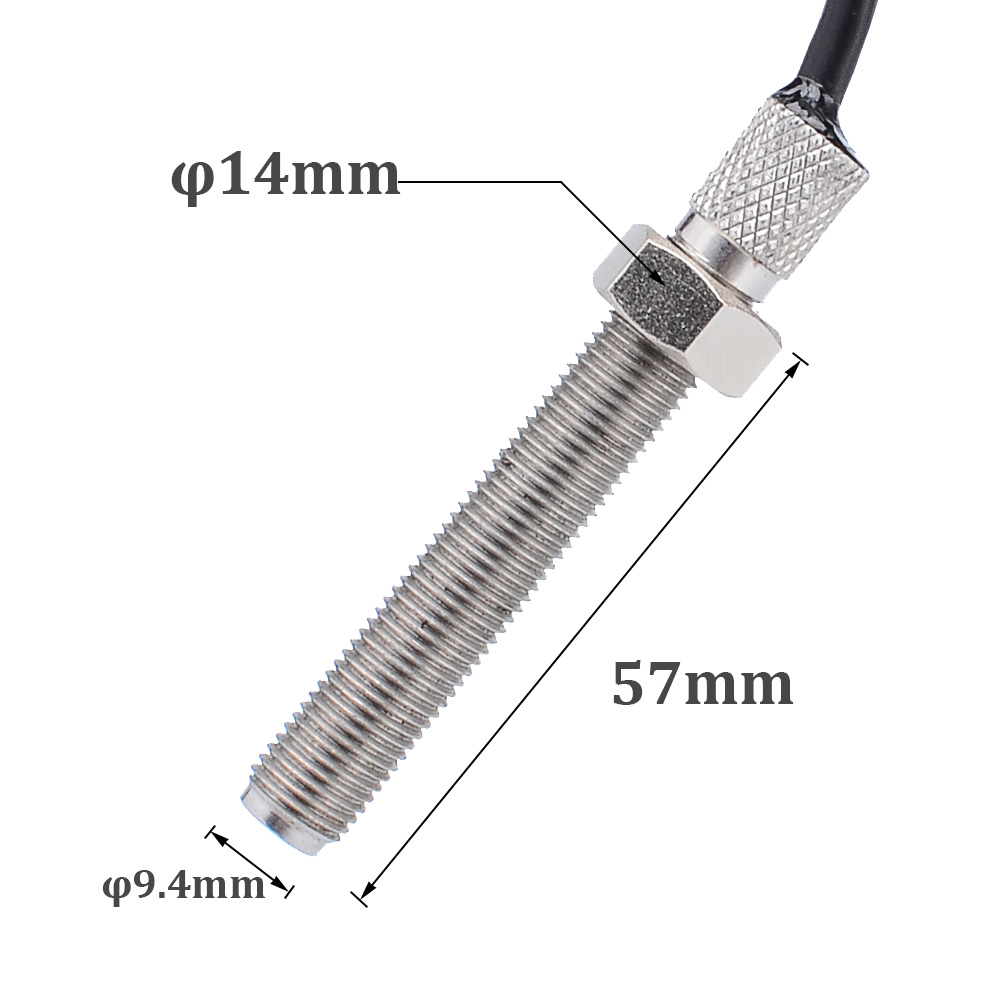

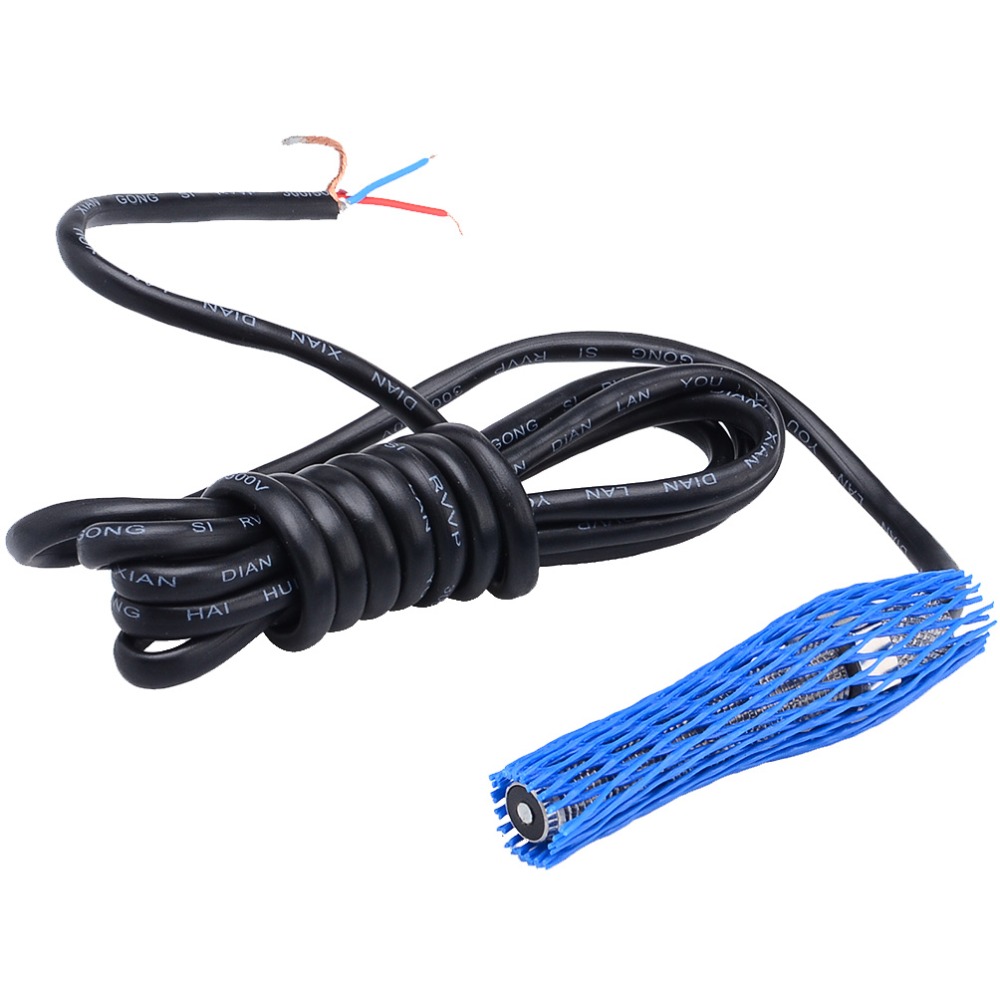

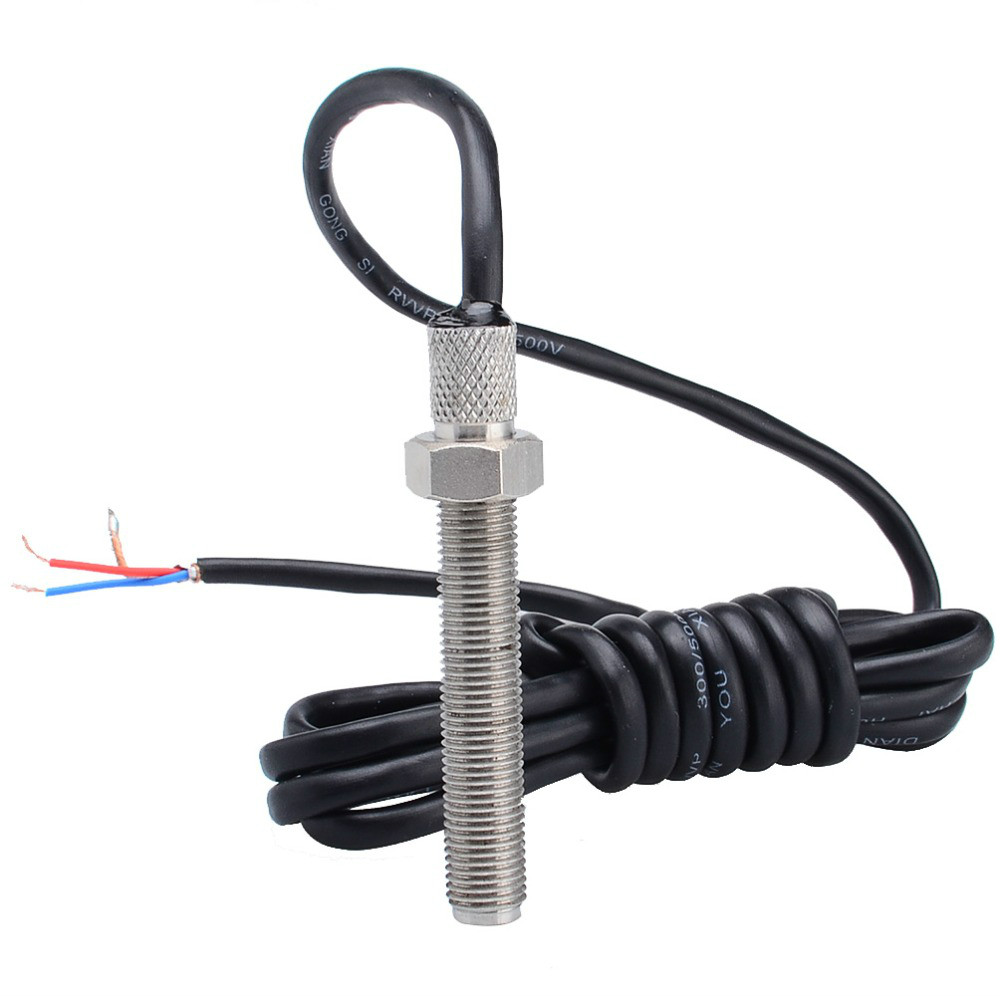

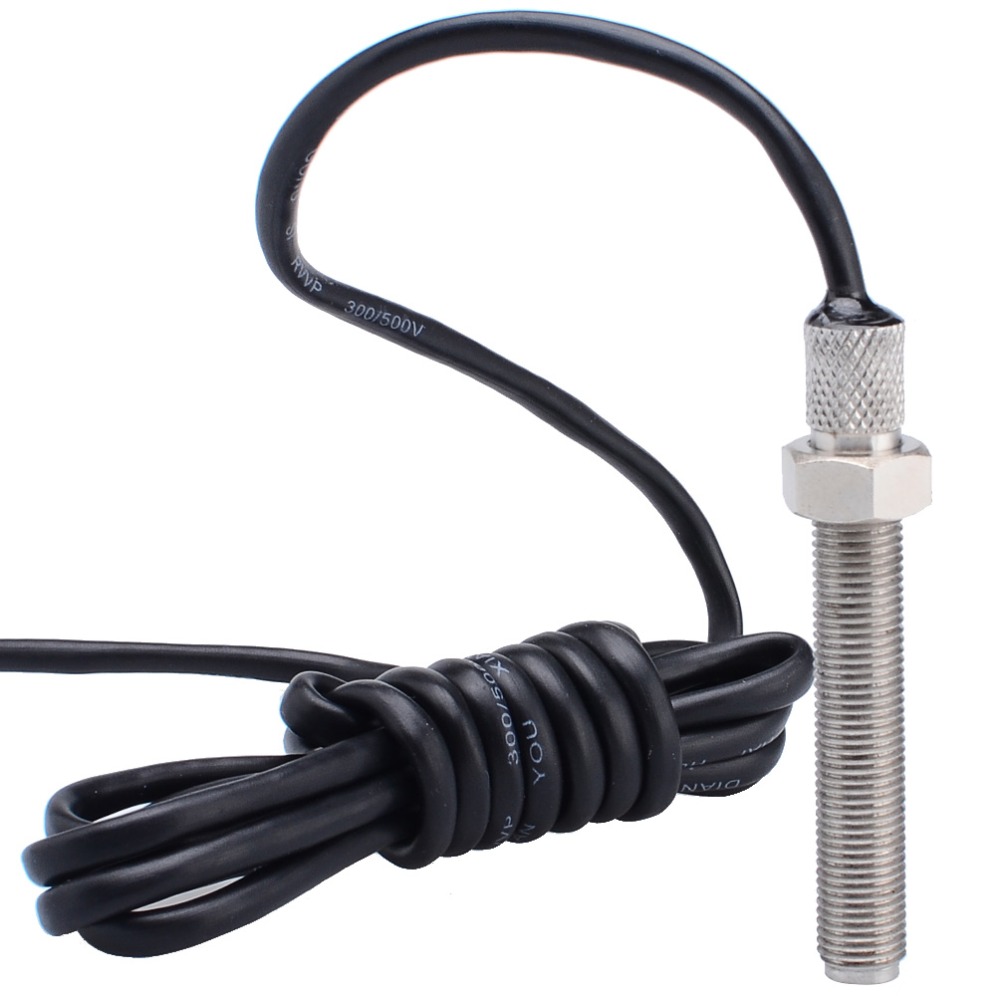

MSP6729 Magnetic Pickup MPU Generator Speed Sensor for Generator Set
Product ID : MSP6729
Product Description
The Generator Magnetic Pickup MSP6729 detects when ring gear teeth,
or other ferrous projections, pass the tip of the sensor. Electrical impulses are
produced by the sensor’s internal coil and sent to the speed control unit.
Technical parameters：
-
Range:50-5000Hz
-
Inductance value:142MH+25%
-
Resistance value:300Ω MAX
-
Thread:3/8-24UNF-2A
-
Off-tooth distance:0.64-0.89mm
-
Temperature range:-55℃ celsius to 105℃
-
Idle output:1.5 volts AC Min
-
MAX output:30 volts AC
