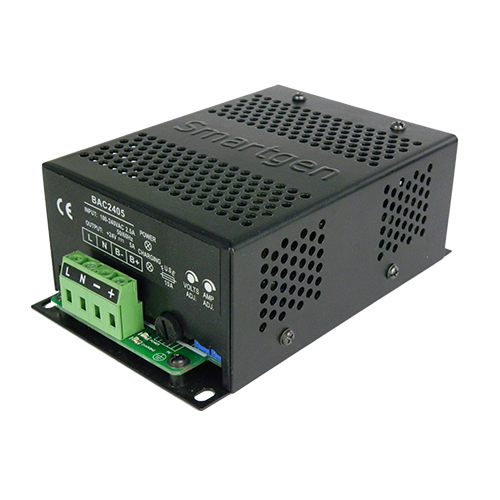

Smartgen battery charger 24V 5A BAC2405 BAC2405CF for generator battery
Smartgen battery charger 24V 5A BAC2405 BAC2405CF for generator battery

Smartgen battery charger 24V 5A BAC2405 BAC2405CF for generator battery

Product ID : BAC2405
Product Attributes :

Product Code:6070007

Power Supply:(100~240)V

Case Dimensions:143*92*52(mm)

Operating Temp. :(-30~+55)℃

Weight:0.66kg

Product Description

Fit with up-to-date power supply device, float charger BAC2405 is specially designed for meet the charging characteristics of the lead-acid engine starter batteries and can be used for long-term float charging of 24V lead-acid batteries.

PERFORMANCE AND CHARACTERISTICS

  1. Switch power supply structure, wide input alternating voltage range, small size, light weight, high efficiency rate;

  2. Automatic two-stage charging process (first constant current, then constant voltage) carried out according to storage battery charging characteristics to prevent overcharging and significantly prolong battery lifetime;

  3. Built-in current protective circuit for short-circuit protection and reverse connection protection;

  4. Charging voltage and current can be adjusted via potentiometer on the spot;

  5. Suitable for 24V storage battery and the rated current is 5A;

  6. LED display: Power indication and charging indication.
