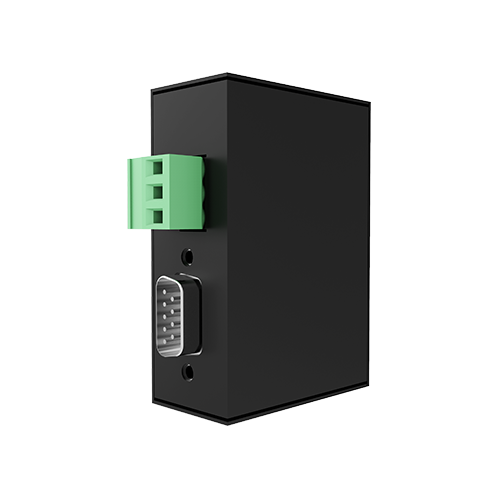

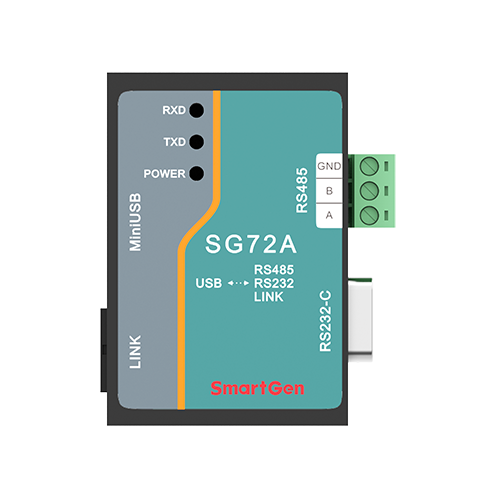

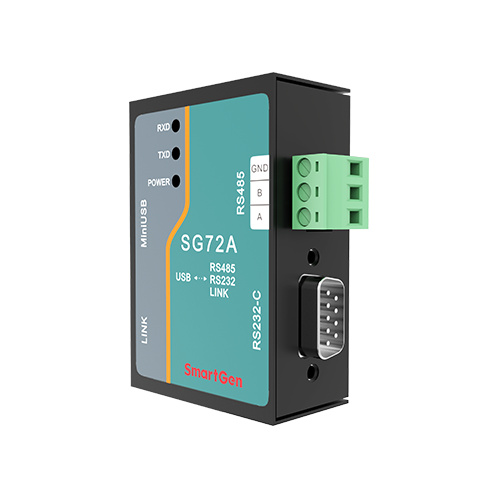

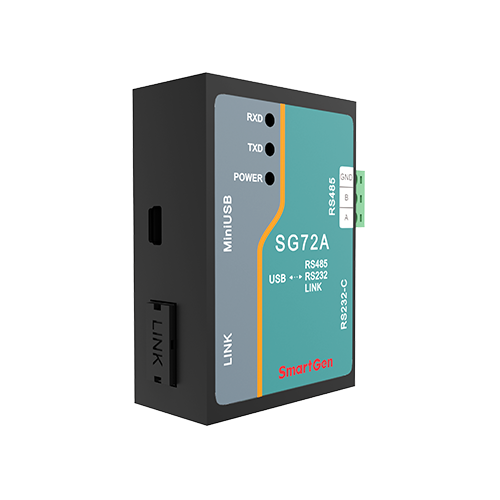

SG72A communication port conversion module
SG72A communication port conversion module SG72A communication port conversion module SG72A communication port conversion module SG72A communication port conversion module

SG72A communication port conversion module

Product ID : SG72A
Product Attributes :

Product Code:6120005

Power Supply:LINK interface

Case Dimensions:91*42*61(L*W*H)(mm)

Operating Temp. :(-40~+70)℃

Weight:0.06kg

Product Description

SG72A module is a communication port conversion module which allows the conversion of USB<->RS232, USB <-> RS485, USB<->LINK (Smartgen special). It is power supplied by USB port of PC.

FUNCTION AND CASE DIMENSION

  1. USB<->RS232;

  2. USB<->RS485;

  3. USB<->LINK (Smartgen special port, TTL level port)

  4. Case dimension: 72mm*51mm*27mm (length *width*height)
