GAC Actuator ACE275H 12V
GAC Actuator ACE275H 12V

GAC Actuator ACE275H 12V

Product ID : ACE275H 12V
Product Description

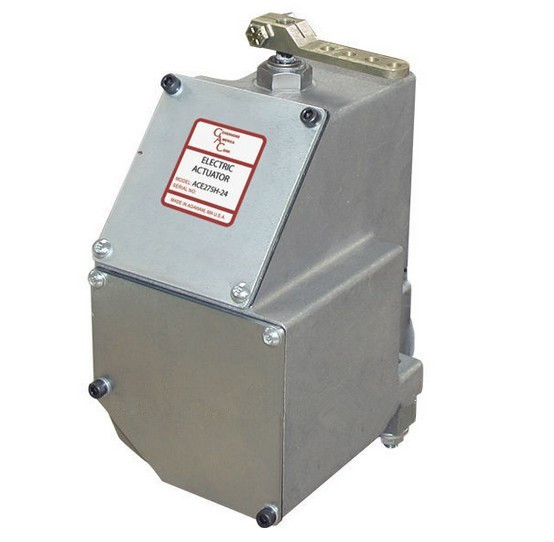

GAC Actuator ACE275H 12V

The 275 Series Electric Actuator is a second generation design more powerful than its predecessor.  It is for Bosch-Style “P” 3000-7000 fuel injected Pumps.  Coupling the 275 Series with a fuel pump results in a high performance fuel control system without external linkages or brackets. Two isolated chambers eliminates the possibility of any magnetic particles collecting and jamming the actuator. As a result, the 275 Series typically outlasts the life of a diesel engine and is maintenance-free. Camshaft bearing retainer kits, position feedback transducer and heavy duty bearing retention options are available.

Features

Optimum Performance for In-line Pumps

Includes Manual Rack Return Mechanism

Stop Lever

Mounts Directly on Bosch ‘P’ and ‘RP 21’ Fuel

Injection Pumps in Place of a Mechanical Governor

Control Up to 12 Cylinder Pumps

Adjustable Maximum Fuel Limit
