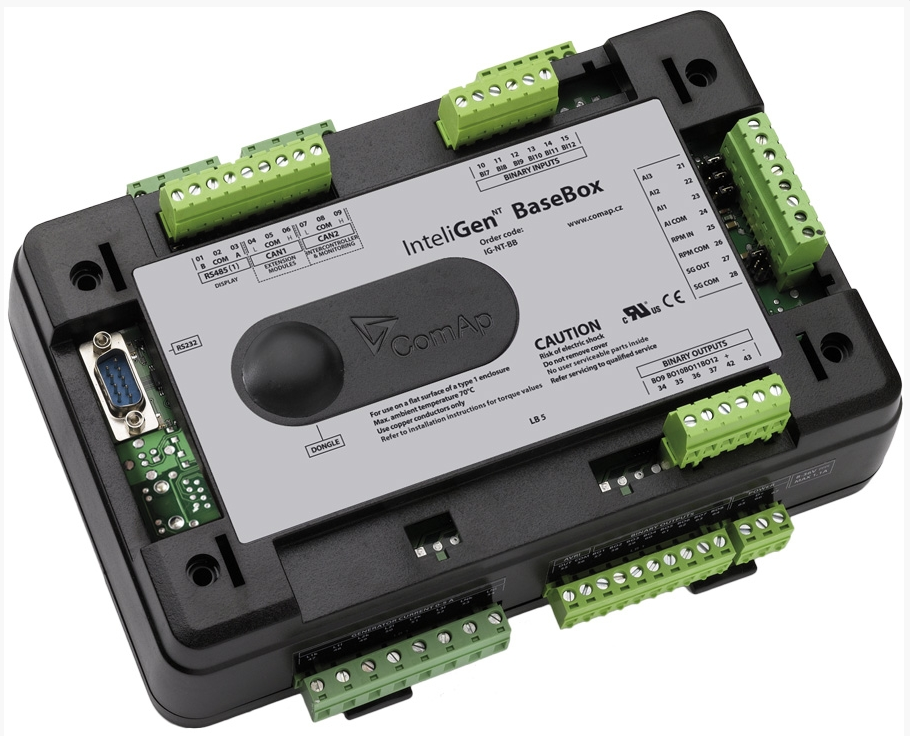

ComAp InteliGenNT BaseBox Complex Parallel Gen-set Controller

InteliGenNT BaseBox

Complex Parallel Gen-set Controller with Detachable Colour Display

• Comprehensive gen-set controller for both single and multiple gensets operating in standby or paralleling modes

• To be used in conjunction with detachable colour displays InteliVision 5 or InteliVision 8

• Support of engines with ECU (Electronic Control Unit)

• Complete integrated gen-set solution and signal sharing via CAN bus – minimum external components needed

• Many communication options – easy remote supervising and servicing

• Gen-set performance log for easy problem tracing

• Automatic synchronizing and power control (via speed governor or ECU)

• AMF function, Baseload, Import / Export, Peak shaving, Voltage and PF control (AVR)

• Generator measurement: U, I, Hz, kW, kVAr, kVA, PF, kWh, kVAhr

• Mains measurement: U, I, Hz, kW, kVAr, PF

• Inputs and outputs configurable for various customer needs

• Bipolar binary outputs - possibility to use BO as High or Low side switch

• RS232 interface with Modbus support; Analog / GSM / ISDN / CDMA modem support; SMS messages; ECU Modbus interface

• Controller redundancy

• Event-based history (up to 1000 records) with customer-selectable list of stored values; RTC; statistic values

• Integrated PLC programmable functions

• Integrated fixed and configurable protections

• DIN-Rail mount

• Customized firmware solution
