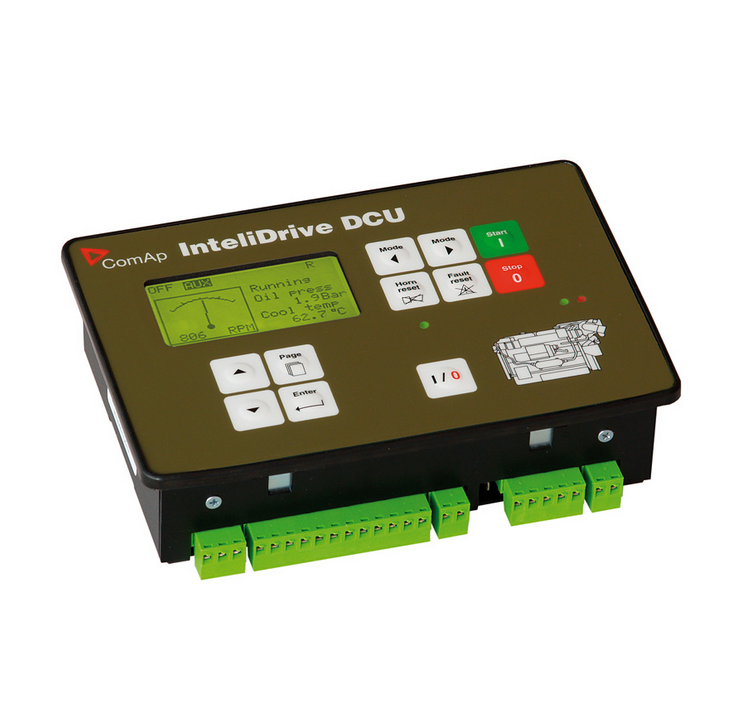

ComAp InteliDrive DCU Industrial Engine Controller

InteliDrive DCU Industrial Engine Controller for Pumps and Compressors

• Engine controller for land-based applications powered by engine driven compressors and pumps

• Control, monitoring and protection for both mechanical and electronic diesel/gas engines as well as peripheral equipment in one unit

• Support of engines with EFI (ECU) - CAN/J1939 or Cummins Modbus

• Event driven History record

• Speed control

• Engine measurement from sensors or via J1939

• 14 binary inputs, 14 binary outputs, 8 analog inputs

• Over 100 binary inputs and outputs is available via additional modules

• 3 level password protection

• Remote control and monitoring via analog/GSM modem, SMS or Internet

• Configurable PLC functions (Logical, Mathematical, Comparators, Analog switch, PID loops, Counters, Timers, Delay and others)

• Load sharing for propulsion engines

• Integrated clutch control

• Running hours meter, number of starts counter

• RS232, Modem, Modbus, Internet communication

• Push buttons for simple control, lamp test

• Front panel sealed to IP65

• EN, UL, CSA, NFPA certifications
