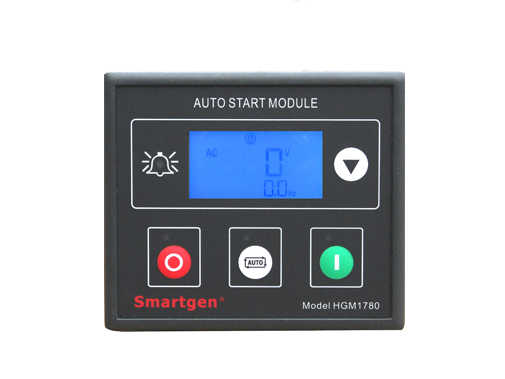

Smartgen HGM1780 Genset Controller

Smartgen HGM1780 Genset Controller

HGM1780 Series generator controller   integrating digital, intelligent and network techniques is used for automatic   control system of diesel generator. It can carry out functions including   automatic start/stop, data measure and alarming. The controller uses LCD   display.
  PERFORMANCE AND CHARACTERISTICS
   Using microprocessor as a core,   graphics LCD with big screen and backlight, key touch for   operation.
   Precision measure and display   of
   generator voltage   (V)
   generator frequency   (Hz)
   generator temperature   (oC)
   generator pressure   (kPa)
   speed (rpm)
   generator hours count   (h)
   start battery voltage   (V)
   generator fuel level   (%)
   Control   protection:
   Oil pressure   low
   Water temperature high
   Over Speed / Under Speed
   Emergency stop
   Start failure
   Stop failure
   Generator Voltage   abnormity
   Start battery voltage   abnormity
   Fuel level low
   Have Idle speed and Energised to   stop function.
   Work mode :Manual、Automatic、Stop。
   Power supply range is wide,   accommodating to different starting battery voltage   environments;
   Built-in speed/frequency detecting   units can accurately judge the states such as crank success and over   speed;
   Several crank success conditions are   optional;
   All parameters use digital   modulation, abandoning analog modulation using conventional electronic   potentiometer, reliability and stability are increased;
   Modular configuration design,   inserted type connection terminals, flush type installation, compact structure,   easy installation.
   Parameters setting: Allow user to   modify setting and store them inside internal FLASH memory, the parameters can   not be lost even with power down. All parameters can be set by PC used   SG72
