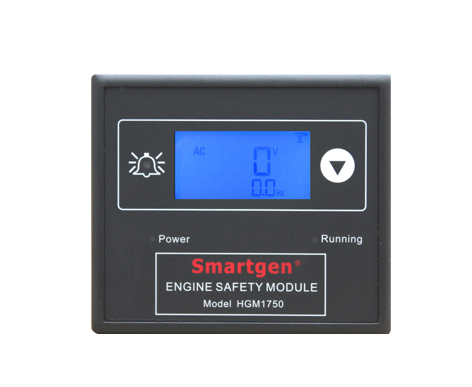

Smartgen HGM1750 Genset Controller

Smartgen HGM1750 Genset Controller

HGM1750 for a generator / engine  display protection module can display generator / engine electrical  parameters (such as voltage, speed, temperature, oil pressure, fuel-bit,  etc.) can also detect failures (oil down, the water temperature /  cylinder temperature Gao, emergency stop alarm, speeding, etc.) to issue  stop orders. Graphic LCD display panel and instructions parametric  fault state, providing a real and effective fault alarm signal.

performance and characteristics

◆   microprocessor  core, large-screen LCD with blue backlight displays icons symbols    could be that oil machine and electrical parameters and alarm volume.

◆ Wide range of power   supply (8-35) VDC, can adapt to the environment 12V or 24V starter batteries.

◆ have the power, speed, temperature, pressure,  liquid level sensor   input port, to achieve power of the digital  display. Can detect and display of   electricity are:

◆Power voltage V
      ◆Power Frequency Hz
      ◆Engine Temperature o C
      ◆Oil pressure kPa
      ◆Speed r / m
      ◆Total running time hc
      ◆The battery voltage V
      ◆Fuel-Bit%
      ◆power voltage, battery voltage,   speed, temperature, pressure,  liquid level sensor thresholds can be set as alarm   or warning can be  realized the amount of:
      ◆High-temperature warning, shutdown
      ◆Low oil pressure warning, parking
      ◆Bit low fuel warning
  ◆Generating high-voltage warning, parking
  ◆Alarm over frequency shutdown
      ◆Speed alarm shutdown
      ◆Emergency Stop
      ◆Shutdown failure
      ◆Charging failure
  ◆The battery voltage is too high a warning
      ◆The battery voltage is too low Warning
  ◆software settings can be set to the   engine controller controller (do not choose to power voltage input).
      ◆panel equipped with red   light-emitting diode (LED) display the work and alarm state.
      ◆provide charging   alternator excitation function. Speed   signal desirableSince the power frequency or speed sensors.
      ◆a variety   of temperature, pressure, oil level sensor can be used directly, and can custom   curves.
      ◆Programmable   input port with a switch capacity can choose different functions according to   user needs.
      ◆mouth   through the LINK program testing software for  PC-parameter settings (using the   company's SG72 adapter),PC machines  only a USB interface, parameters can be   set in the real machine or not  to take batteries from the USB to the PC,   controller supplies power  to carry out parameter settings.
      ◆Modular   structure design, fire-retardant ABS plastic shell,  embedded installation,   compact structure, small size, advanced MCU  control, stable performance, easy to   operate
