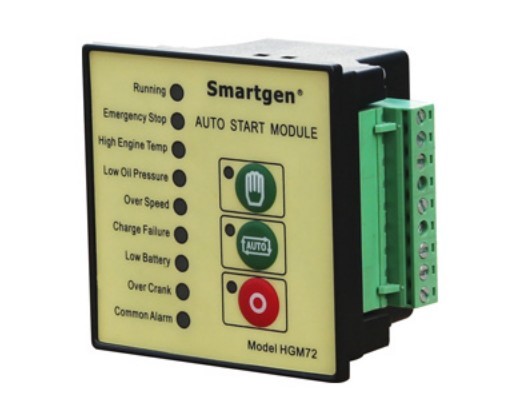

Smartgen HGM72 Genset Controller

Smartgen HGM72 Genset Controller

The Model HGM72 is an Automatic Engine Control Module. The module is used to   automatically start and stop the engine, indicating the operational status and   fault conditions, automatically shutting down the engine and indicating the   engine failure by LED on the front panel.

Features

Micro-processor   based design;

Power supply range is wide, accommodating to   different starting battery voltage environments;

Multiple   alarm

Supply charge excitation

Supply idle   control

Speed depend on frequency of generator

12   LEDs display the status;

Operational   timers can be altered by PC;

Built-in watch   dog can never be dead halt, ensuring smooth program   execution;

Modular   configuration design, inserted type connection terminals, flush type   installation, compact structure, easy installation.

Specification

DC   supply: 8 to   35V(1.5VA)

AC input:AC30～300V(+20%) 50/60Hz

Three input: connect to (B-) is   active

Operating   Temperature   Range:-30 to +70°C
