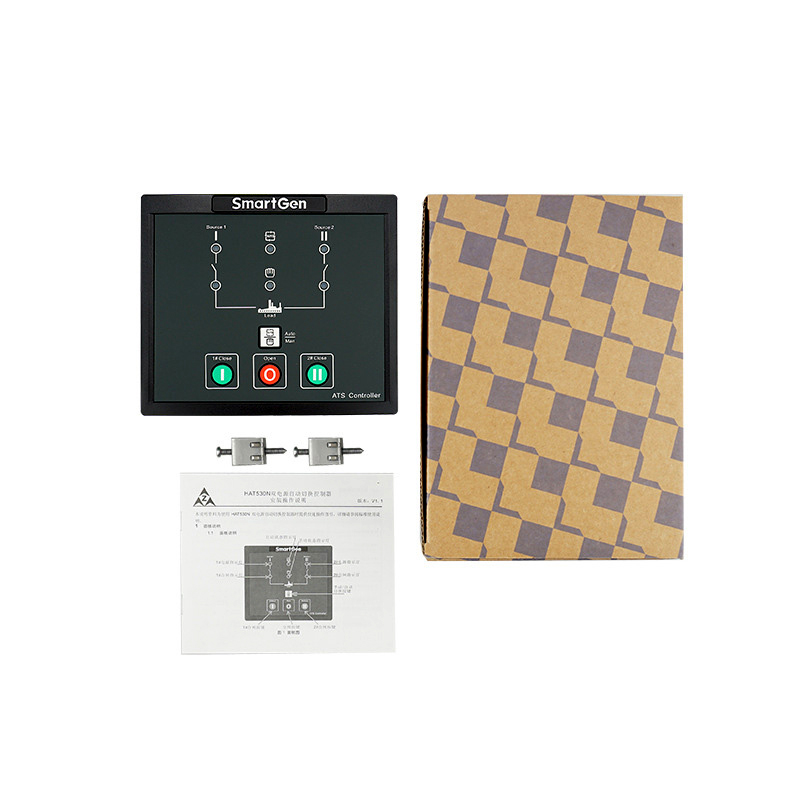

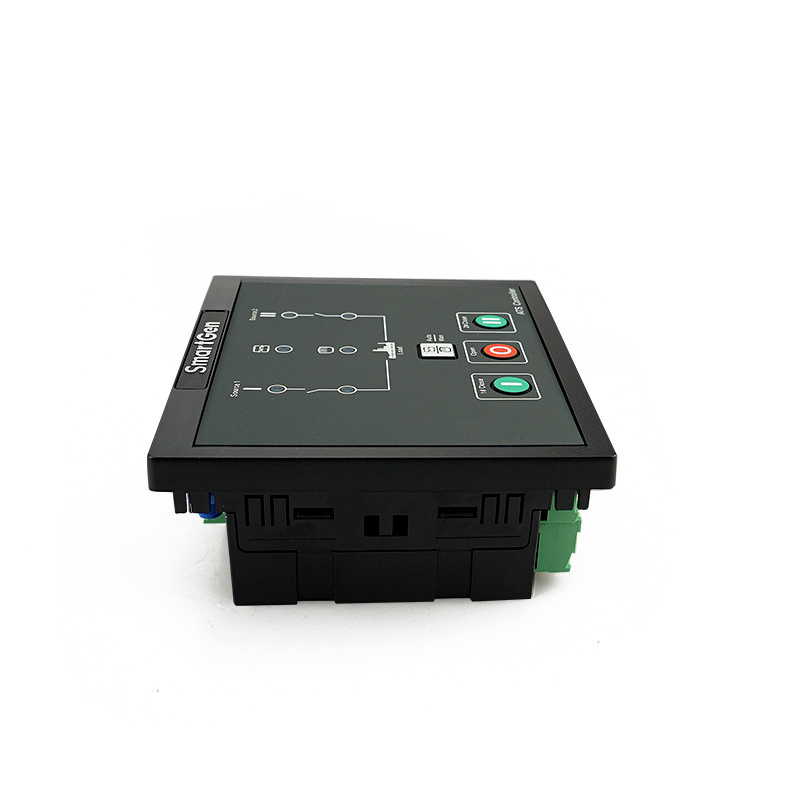

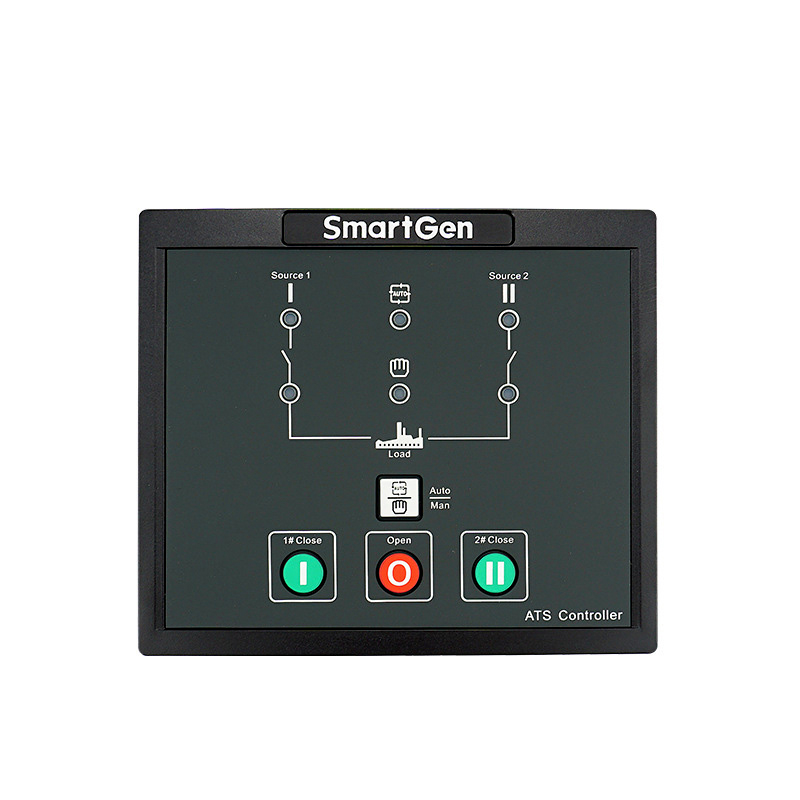

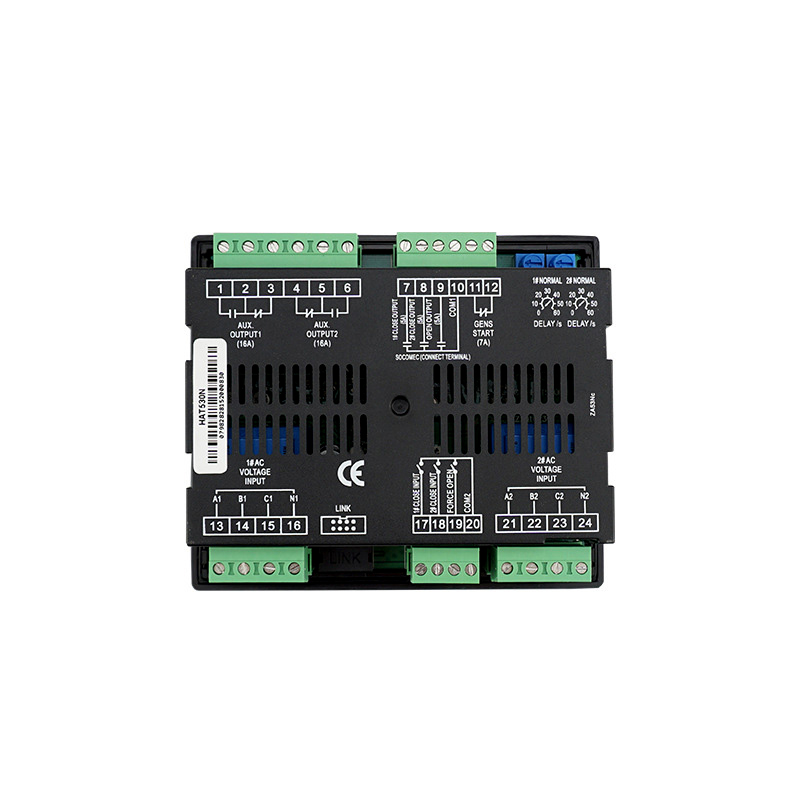

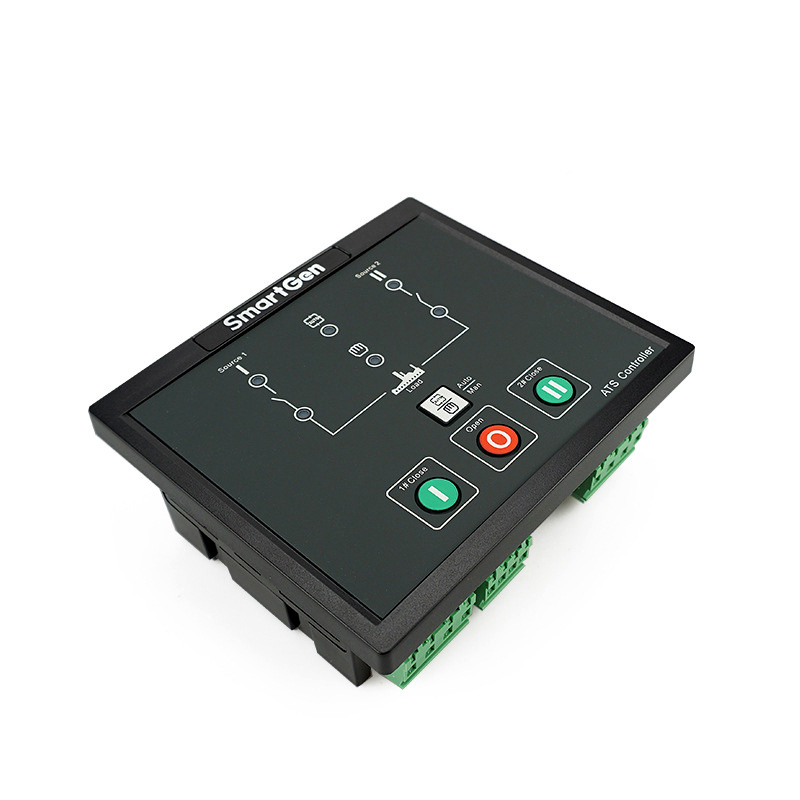

Genset Controller HAT530N series ATS controller LINK communication port

Product ID : HAT530N

Product Attributes :

THE POWERFUL MICROPROCESSOR CONTAINED WITHIN THE HAT530N ATS CONTROLLER ALLOWS FOR PRECISION VOLTAGE (2-WAY 3-PHASE/SINGLE PHASE)

MEASURING AND MAKE ACCURATE JUDGMENT ON ABNORMAL VOLTAGE (POWER LOST, OVER/UNDER VOLTAGE, OVER/UNDER FREQUENCY, LOSS OF PHASE,

PHASE SEQUENCE WRONG) AND CONTROL ATS TO TRANSFER AFTER THE DELAY HAS EXPIRED. THIS CONTROLLER IS SUITABLE FOR NO BREAKING ATS AND

ONE BREAKING ATS.

Product Description

Function Item	Parameter	Function Item	Parameter
Display	LED	Alternator Frequency	50/60Hz
AC System	1P2W/2P3W/3P4W	Monitor Interface	LINK
Alternator Voltage	(170~277)V(ph-N)	Programmable Interface	LINK
Switch Over Priority	●	Applicable Switch Type	NO Breaking ATS and ONE Breaking ATS
Case Dimensions(mm)	13912050	Panel Cutout(mm)	130*111
Operating Temp.	(-25~+70)℃
