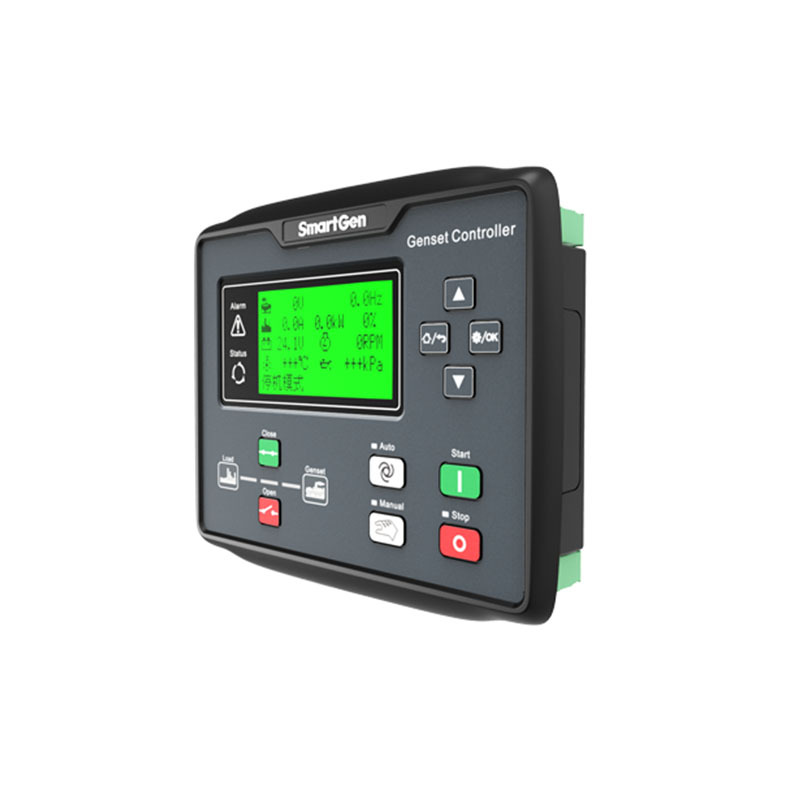

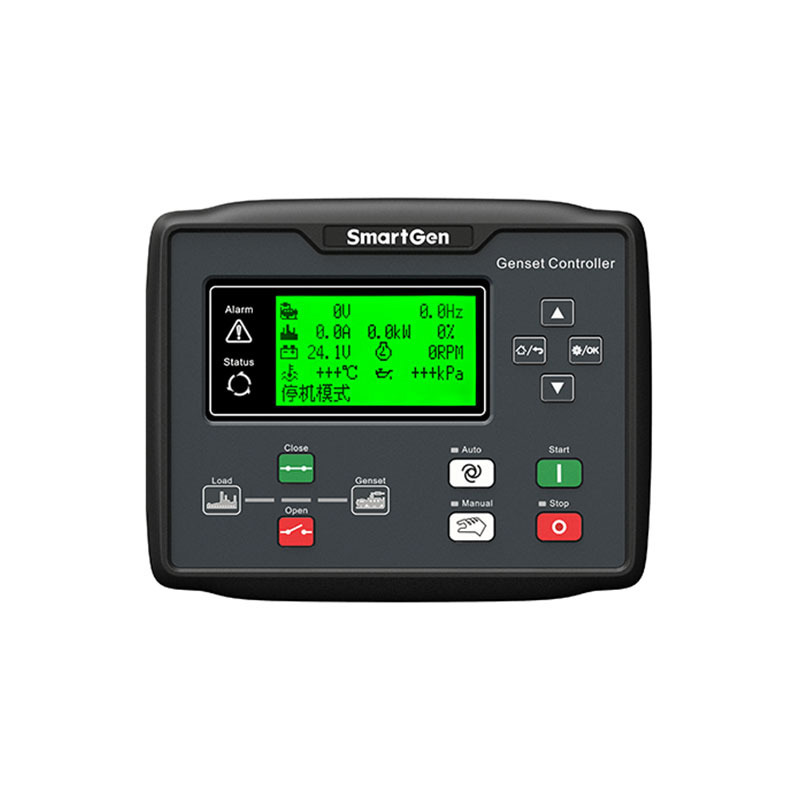

 Control Panel HGM6110N Electric Automatic Remote LCD Display Diesel Generator Auto Start
 Control Panel HGM6110N Electric Automatic Remote LCD Display Diesel Generator Auto Start  Control Panel HGM6110N Electric Automatic Remote LCD Display Diesel Generator Auto Start  Control Panel HGM6110N Electric Automatic Remote LCD Display Diesel Generator Auto Start

Control Panel HGM6110N Electric Automatic Remote LCD Display Diesel Generator Auto Start

Product ID : HGM6110N
Product Attributes :

HGM6100N series automatic controller, integrating digital, intelligent and network techniques, is used for automatic control and monitoring system of genset. It can carry out functions of automatic start/stop, data measurement, alarm protection and three “remote” (remote control, remote measure and remote communication). The controller uses LCD display, optional display interface including Chinese, English, Spanish, Russian, Portuguese, Turkey, Polish and French with easy and reliable operation.

Product Description
Specification
Item
Contents

Working Voltag
DC8.0V to DC35.0V, continuous

Overall Dimension
209mm x 166mm x 45mm

Panel Cutou
186mm x 141mm

Working Condition
Temperature: (-25~70)ºC; Relative Humidity: (20~93)%

Storage Condition
Storage Condition

Protection Leve
IP65: when water-proof gasket installed between control panel and enclosure

Insulation Intensity
Apply AC2.2kV voltage between high voltage terminal and low voltage terminal. The leakage current is not more than 3mA within 1min
