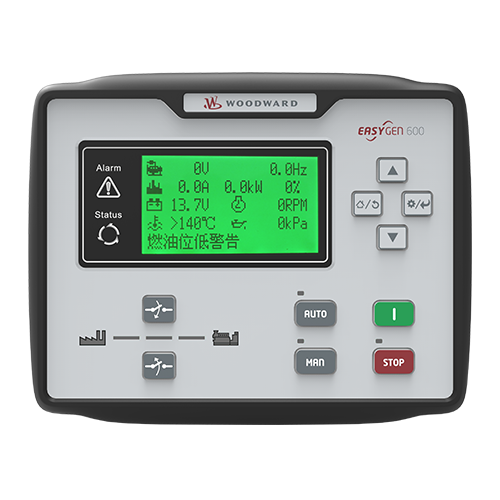

Woodward Controller EASYGEN 600

easYgen-600 is intended to be used for single automation systems, auto start/stop of the unit are performed with the help of remote signal.

Functions

• Protection: automatic start/stop of the genset, ATS (Auto Transfer Switch) control with failure indication and protection function

• All output ports are relay-out

• Parameter setting: parameters can be modified and stored in internal FLASH memory and cannot be lost even in case of power outage; most of them can be adjusted using front panel of the controller and all of them can be modified using ToolKit- SC on a PC via USB or RS485 ports.

• Curves of temperature, oil pressure, fuel level can be used directly and users can define the sensor curves by themselves

• Multiple crank disconnect conditions (generator frequency, speed sensor, oil pressure) are optional

• Event log, real-time clock, scheduled start & stop generator (can be set as start genset once a day/week/month whether with load or not)

• Logon wallpaper and display time are user-defined

• Can be used on pumping units and as an indicating instrument (indicate and alarm are enable only, relay is inhibited)

• Maintenance function: Actions (warning or shutdown) can be set when maintenance time out

• All parameters use digital adjustment, instead of conventional analog modulation with normal potentiometer for more reliability and stability

• Accumulative total run time and total electric energy of A and B. User can reset it as 0 and re-accumulative the value which allows to count the total value user defined.
